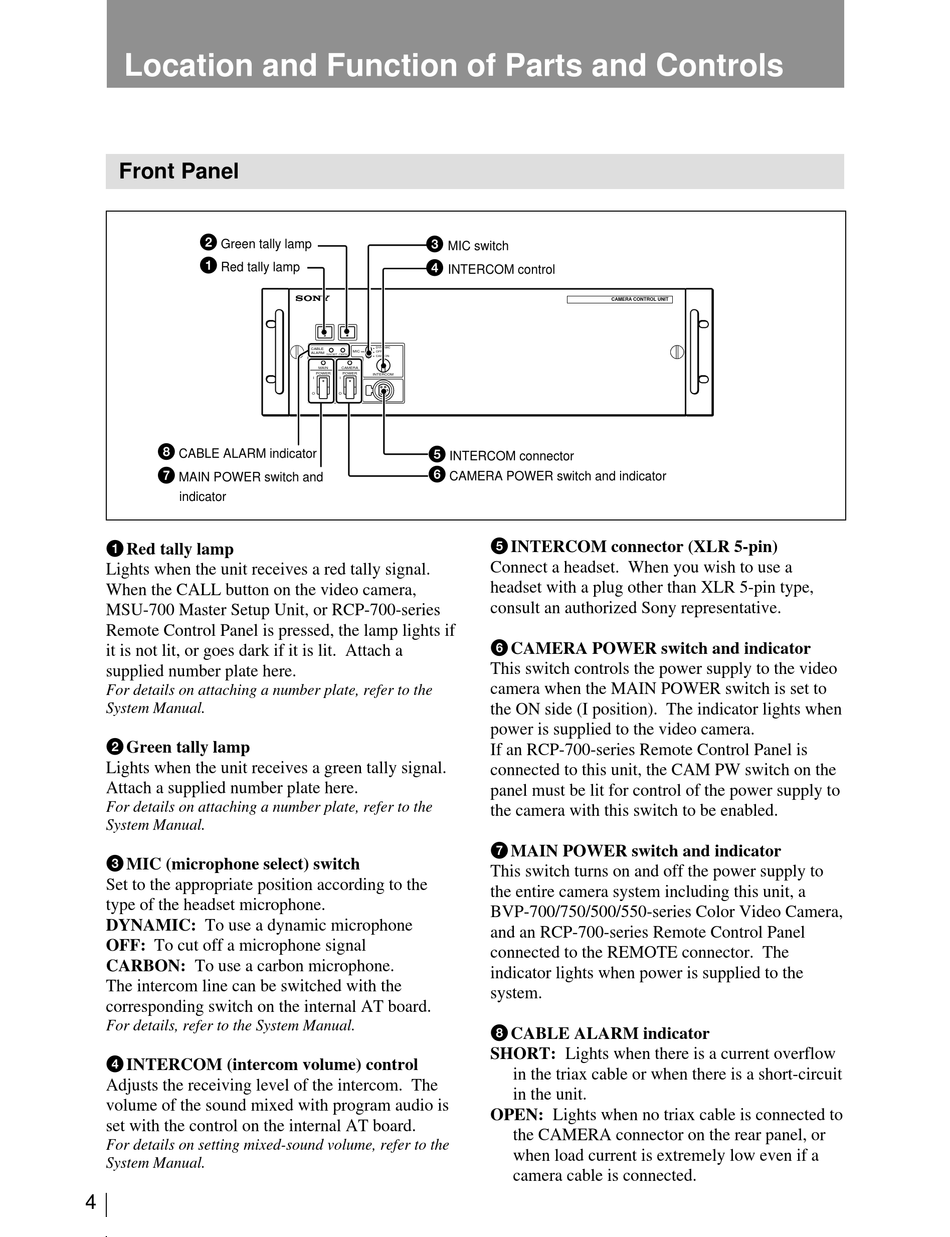

Location and Function of Parts and Controls
Front Panel
2
Green tally lamp
1
Red tally lamp
8
CABLE ALARM indicator
7
MAIN POWER switch and
indicator
1 Red tally lamp
Lights when the unit receives a red tally signal.
When the CALL button on the video camera,
MSU-700 Master Setup Unit, or RCP-700-series
Remote Control Panel is pressed, the lamp lights if
it is not lit, or goes dark if it is lit. Attach a
supplied number plate here.
For details on attaching a number plate, refer to the
System Manual.
2 Green tally lamp
Lights when the unit receives a green tally signal.
Attach a supplied number plate here.
For details on attaching a number plate, refer to the
System Manual.
3 MIC (microphone select) switch
Set to the appropriate position according to the
type of the headset microphone.
DYNAMIC: To use a dynamic microphone
OFF: To cut off a microphone signal
CARBON: To use a carbon microphone.
The intercom line can be switched with the
corresponding switch on the internal AT board.
For details, refer to the System Manual.
4 INTERCOM (intercom volume) control
Adjusts the receiving level of the intercom. The
volume of the sound mixed with program audio is
set with the control on the internal AT board.
For details on setting mixed-sound volume, refer to the
System Manual.
4
3
MIC switch
4
INTERCOM control
S
1
1
DYNAMIC
CABLE
MIC
OFF
ALARM
SHORT OPEN
CARBON
MAIN
CAMERA
POWER
POWER
INTERCOM
I
I
O
O
5
INTERCOM connector
6
CAMERA POWER switch and indicator
CAMERA CONTROL UNIT
5 INTERCOM connector (XLR 5-pin)
Connect a headset. When you wish to use a
headset with a plug other than XLR 5-pin type,
consult an authorized Sony representative.
6 CAMERA POWER switch and indicator
This switch controls the power supply to the video
camera when the MAIN POWER switch is set to
the ON side (I position). The indicator lights when
power is supplied to the video camera.
If an RCP-700-series Remote Control Panel is
connected to this unit, the CAM PW switch on the
panel must be lit for control of the power supply to
the camera with this switch to be enabled.
7 MAIN POWER switch and indicator
This switch turns on and off the power supply to
the entire camera system including this unit, a
BVP-700/750/500/550-series Color Video Camera,
and an RCP-700-series Remote Control Panel
connected to the REMOTE connector. The
indicator lights when power is supplied to the
system.
8 CABLE ALARM indicator
SHORT: Lights when there is a current overflow
in the triax cable or when there is a short-circuit
in the unit.
OPEN: Lights when no triax cable is connected to
the CAMERA connector on the rear panel, or
when load current is extremely low even if a
camera cable is connected.
