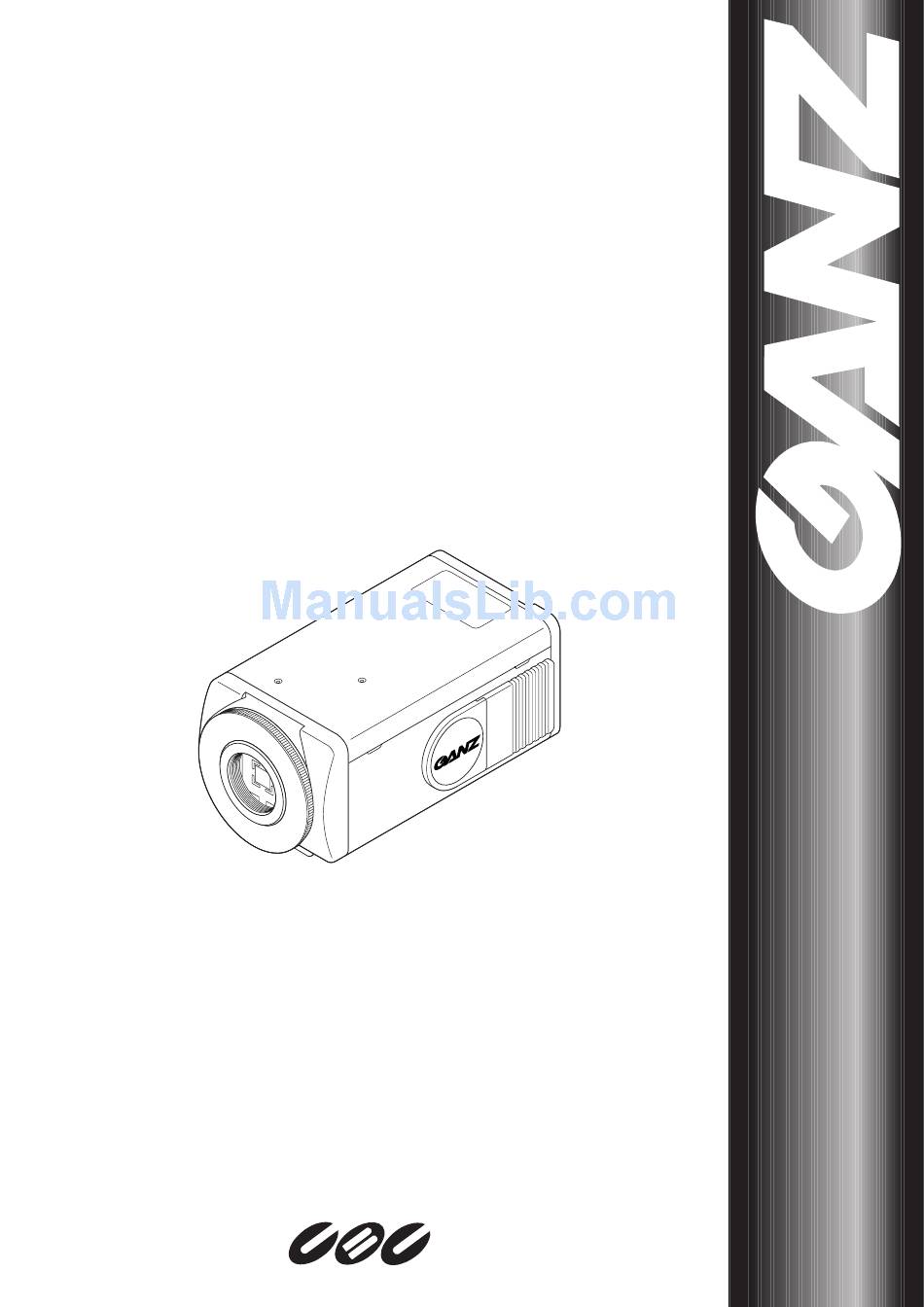

- Page 1 COLOUR CS MOUNT CAMERA ZC-Y20PH INSTRUCTION MANUAL 230VAC 24VAC/12VDC TYPE TYPE ZC-Y20PH3 ZC-Y20PH4...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ……………………………………………………………………… 2. GENERAL DESCRIPTION …………………………………………………………………… 3. PRECAUTIONS ………………………………………………………………………………………… 4. NOMENCLATURE …………………………………………………………………………………… 5. INSTALLATION ………………………………………………………………………………………… 6. CONNECTIONS ……………………………………………………………………………………… 7. ABOUT THE LENSES 7.1. Lens (optional) Selection and Camera Setting ……………………………………… 7.2. Auto-Iris Lens Installation ……………………………………………………………………… 8. -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. ● Make sure to observe the instructions in this manual as the conventions of safety symbols and messages ● regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. -
Page 4: General Description
2. GENERAL DESCRIPTION The ZC-Y20PH3 is a 1/3 type, AC mains-operated, high-resolution color camera. The ZC-Y20PH4 is a 1/3 type, 24 VAC or 12 VDC-operated, high-resolution color camera. The 32X electronic sensitivity enhancer and wide dynamic circuitry combine to ensure clear surveillance in dark locations or in backlit conditions. -
Page 5: Nomenclature
4. NOMENCLATURE [Left side panel] ⑤ ⑦ ① ② ③ ④ ⑥ ⑧ Note: Controls ⑤, ⑥, and ⑦ are exposed when you move the cover toward the [Top panel] rear panel. [Rear panel] [Front panel] [Right side panel] ⑩ ⑫... -
Page 6: Installation
5. INSTALLATION [Ceiling Mounting Example] [Wall Mounting Example] Camera mounting Ceiling surface bracket (optional) Wall surface Lock lever Camera mounting bracket (optional) Pedestal ⑨ Mount Wall surface ⑨ Mount Lock lever Pedestal Camera mounting bracket (optional) 1. Mount the optional camera mounting bracket to the ceiling or wall. The bracket must be fixed securely using an electrical box and screws supplied with the bracket. -
Page 7: About The Lenses
7. ABOUT THE LENSES 7.1. Lens (optional) Selection and Camera Setting When using the flickering-reduction function outdoors or under the fluorescent lighting in the area with the ● power frequency of 50 Hz, use the auto-iris lens. Follow the procedure below to perform the setting: 1. -
Page 8: Adjustment
8. ADJUSTMENT 1. Supply power to the camera. The power indicator ⑪ will light. 2. Flickering of lighting may interfere with the view when the camera is used in the room in the area with power frequency of 60 Hz. To view the flickering-free picture, shift the flickering-reduction switch of the mode switch ⑥... -
Page 9: Camera Function Setting
CAMERA FUNCTION SETTING The following 8 functions can be set and reset. Note Be sure to set the mode switch (for AGC, backlight compensation, ATW, and flickering-reduction operation settings) to the "(MENU)" position. Failure to do this makes it impossible to set the "shutter speed/flickering- free operation,"... -
Page 10: Iris Level Setting
Note Use the menu keys (▲ key, ▼ key, SET key, and /CLR key) located on the camera's side panel to set the camera functions. Side panel-mounted menu keys ■ Iris Level Setting ● Camera menu display screen Initial screen 1. -
Page 11: Shutter Speed/Flickering-Reduction Operation Setting
■ Shutter Speed/Flickering-Reduction Operation Setting ● Shutter speed setting screen You can set the shutter speed to NORMAL (1/50), 1/120 (flickering-reduction for), 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 or AES. Using the ▲ key and the ▼ key, move the flashing [→] cursor to the desired speed, and press the SET key to ＳＨＵＴＴＥＲ ＳＰＥＥＤ →ＮＯＲＭＡＬ... -
Page 12: Automatic Gain Control (Agc) And Sensitivity Level Settings
■ Automatic Gain Control (AGC) and Sensitivity Level Settings ● AGC/sensitivity level setting screen 1 An AGC level can be automatically changed, maintained constant or set for OFF. This screen also permits a sensitivity level to be changed in increments of OFF, 2 times, 4 times, 6 times, 8 times, 10 times, 16 times, 24 times or 32 times. -
Page 13: White Balance Setting
Operation when flickering- Sensitivity Operation reduction function is set Provides AUTO Incremental Automatically adjusts the sensitivity for up to the flickering-reduction parameter designated maximum level. Change the incremental operations only in bright parameter when giving more consideration to a residual lighting conditions. - Page 14 ● White balance setting screen 2 When AWB is selected, the cursor first flashes at the position of LAST. Pressing the SET key here for registration will return the display to the initial screen ＷＨＩＴＥ ＢＡＬＡＮＣＥ ＡＴＷ without readjusting the white balance. →ＡＷＢ...
-
Page 15: Chroma Level Setting
■ Chroma Level Setting ● Chroma level setting screen 1 You can adjust the chroma level of the picture as you like. Move the flashing [→] cursor with the ▲ key and the ▼ key to select either NORMAL or MANUAL, then press the SET key to register the setting. -
Page 16: Camera Id Title Setting
● Enhancement setting screen 2 When you select MANUAL and register its setting, the [＊] cursor in the indication of "SOFT ーー＋ーー SHARP" flashes, permitting a level to be varied with the ▲ key ＥＮＨＡＮＣＥＲ ＮＯＲＭＡＬ and the ▼ key. Pressing the SET key here for →ＭＡＮＵＡＬ... -
Page 17: Resetting The Camera Functions To The Factory-Preset Values
● Camera ID title setting screen 3 The ID title's leftmost [＊] cursor flashes, indicating ● that the character may be entered. ＣＡＭＥＲＡ ＩＤ The cursor for character selection flashes at the ＊＊＊＊＊＊＊＊ ● position of "END". Select the character or symbol by ←→ ＳＰＡＣＥ ＣＬＥＡＲ ＥＮＤ... -
Page 18: About The Mode Switch
10. ABOUT THE MODE SWITCH Set each switch to the position that provides the best picture reproduction. The color camera has the remote camera control function. When setting the camera's property with the menu key, set the corresponding switch (AGC, backlight compensation, ATW, and flickering reduction) to the "(MENU)" side (right-hand side). (MENU) Lens Auto/Manual selector switch AUTO... -
Page 19: Illumination Vs. Place
● Flickering-reduction switch Normally, set the switch to this Flickering of the picture may position. interfere with the view under fluorescent lamps in the area with power frequency of 50 Hz. 1/120 (1/50) 1/120 (1/50) In such cases, set the switch to "1/120"... -
Page 20: Specifications
12. SPECIFICATIONS Model No. ZC-Y20PH3 ZC-Y20PH4 Power Source 230 VAC, 50/60 Hz 24 VAC, 50/60 Hz or 12 VDC Power Consumption Image Sensor 1/3 type IT-CCD No. of Effective Pixels 752 (H) x 582 (V) 440,000 pixels Scanning System 2:1 interlace Scanning Frequency Horizontal: 15.625 kHz, Vertical: 50.00 Hz VBS 1.0 V...
