Keys Fitness KF-PT Owner's Manual

Power tower
Hide thumbs Also See for KF-PT:

Advertisement

Table of Contents

KF-PT
P
T
ower
ower
Owner's Manual
215-00126
10/06 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KF-PT and is the answer not in the manual?

Questions and answers

Related Manuals for Keys Fitness KF-PT

Summary of Contents for Keys Fitness KF-PT

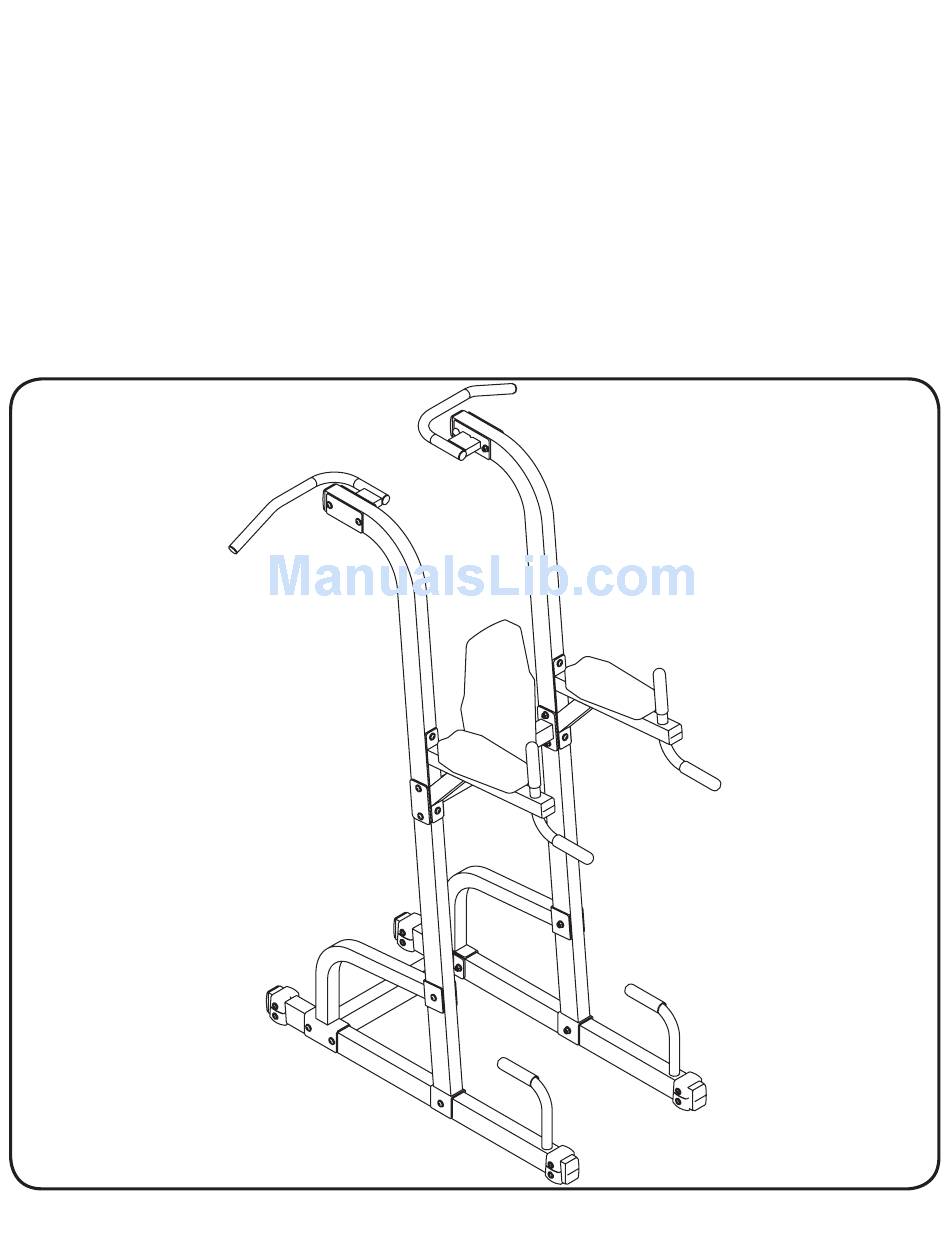

  • Page 1 KF-PT ower ower Owner’s Manual 215-00126 10/06 Rev A...

  • Page 2: Table Of Contents

    Table Of Contents Before You Start Important Safety Information Assembly Parts List Exploded View Warranty Information...

  • Page 3: Before You Start

    This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Help line. We have trained service technicians on site to take care of you, our valued customer.

  • Page 4: Important Safety Information

    SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.

  • Page 5: Assembly

    NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Connect Upright Frame (1) to Base Frame (8) using Bolt (), Washers (19) and Nylon Lock Nut (5). Repeat Step 1 for other side of KF-PT.
  • Page 6 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Connect Back Pad Support Frame (5) to both Upright Frames (1) using Bolts (3), Washers (19), Nylon Lock Nuts (5) and Small Plates (11). NOTE: Small Plates (11) are to be placed on the outside of the machine.
  • Page 7 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Connect Elbow Pad Support Frame (4) to Upright Frame (1) using Bolts (4), Washers (19), Large Washers (1) and Nylon Lock Nuts (5).
  • Page 8 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 4 Connect Back Pad (13) to Back Pad Support Frame (5) using Bolts (7) and Washers (19). Connect Elbow Pads (10) to Elbow Pad Support Frames using Bolts (7) and Washers (19).

  • Page 9: Parts List

    Parts list KF-PT Parts list Rev A Ref # Part # description 3-01004 FRAME, UPRIGHT KF-PT 3-01005 SUPPORT, LEFT ANGLE KF-PT 3-01006 RIGHT ANGLE SUPPORT, KF-PT 3-01007 FRAME, ELBOW SUPPORT FRAME KF-PT 3-01008 FRAME, BACK PAD SUPPORT KF-PT 19-0059 CHIN-UP BAR, RIGHT KF-PT...

  • Page 10: Exploded View

    Exploded View...
