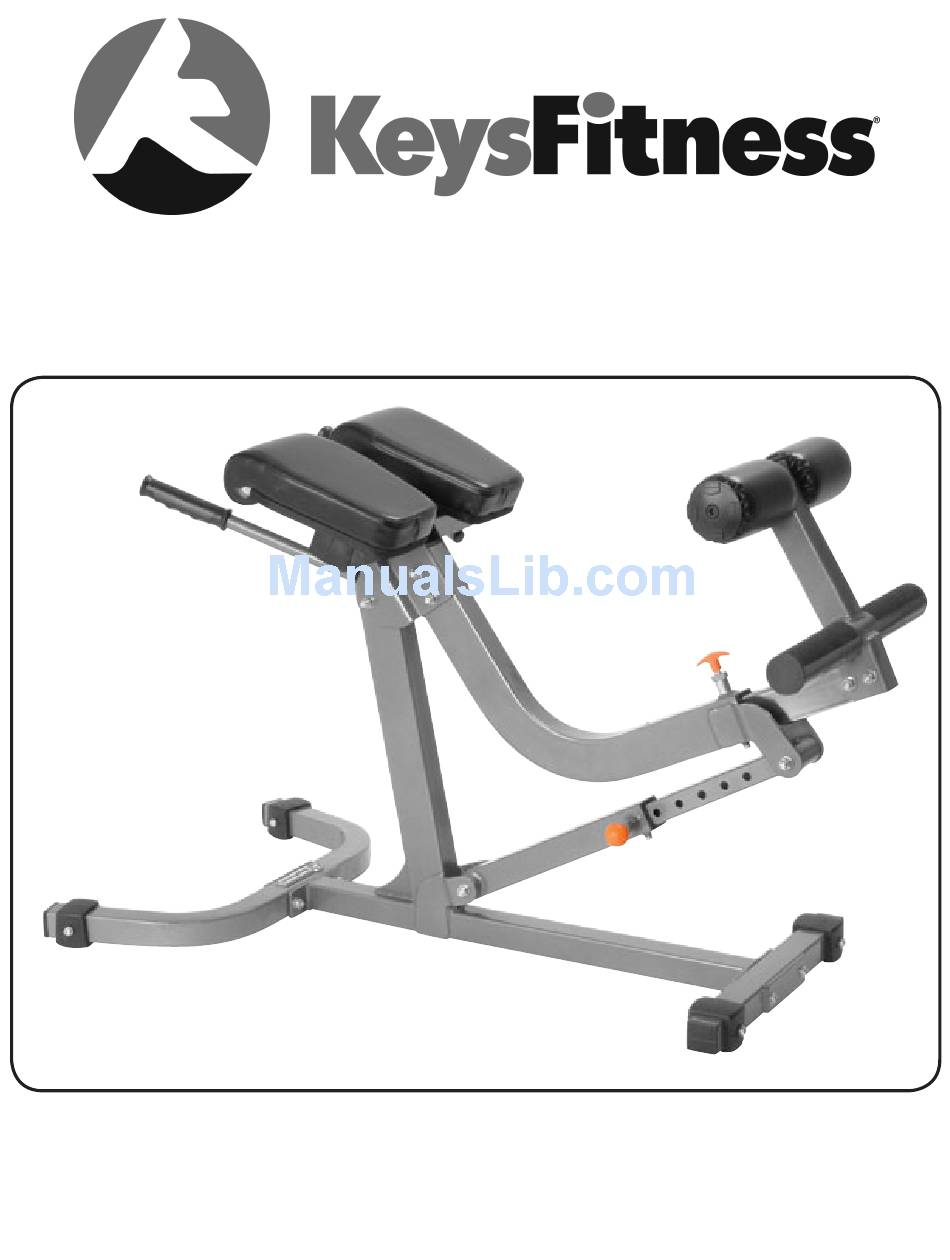

- Page 1 KF-AH djustAble yperextension Owner’s Manual 215-00217 03/07 Rev A...
-
Page 2: Table Of Contents
Table of Contents Before You Start Important Safety Information Assembly Parts List Exploded View Warranty Information 5 - 11... -
Page 3: Before You Start
Keys Fitness Help line. We have trained service techni- cians on site to take care of you, our valued customer. -
Page 4: Important Safety Information
• This unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. -
Page 5: Assembly
Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Attach U-Shaped Base () to Main Frame (3) using Bolts M10X80 (30), Washers M10 (36), and Nylon Lock Nuts M10 (39). Attach Base Frame (1) to Main Frame (3) using Bolts M10X80 (30), Washers M10 (36), and Nylon Lock Nuts M10 (39). - Page 6 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Connect Swivel Frame A (5) to Main Frame (3) using Pivot Axle (9), Bolt M10X110 (9), Washers M10 (36), and Nylon Lock Nut M10 (39). Slide Adjustable Frame (6) into Swivel Frame A (5) and secure in place using the orange pop pin.
- Page 7 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Attach Swivel Frame B (7) to Adjustable Frame (6) using Bolt M10X110 (9), Washers M10 (36), and Nylon Lock Nut M10 (39). Attach Pad Support (4) first to Swivel Frame B (7) using Bolts M10X80 (30), Washers M10 (36), and Nylon Lock Nut M10 (39).
- Page 8 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 4 Attach Foam Frame (8) to Adjustable Tube (1) using Bolts M10X65 (31), Washers M10 (36), and Nylon Lock Nuts M10 (39). Slide Adjustable Tube (1) into Swivel Frame B (7) and secure using orange pop pin.
- Page 9 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 5 Slide a Foam Roller (18) onto each side of Foam Frame (8). Use a rubber mallet to secure Big Plugs (0) into foam frame shafts.
- Page 10 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 6 Install Chest Pads A & B (13 & 14) onto Pad Support (4) using Bolts M10X30 (3) and Washers M10 (36). Tighten all hardware securely.
-
Page 11: Assembly
Assembly Congratulations! You have completed the assembly of your new KF-AH... -
Page 12: Exploded View
Exploded View 12 12... -
Page 13: Parts List
Parts list Ref # Part # 223-01210 BASE FRAME, KF-AH 223-01211 BASE FRAME, U KF-AH 223-01213 MAIN FRAME, KF-AH 223-01214 SUPPORT, PAD KF-AH 223-01215 FRAME, SWIVEL A KF-AH 223-01216 FRAME, ADJUSTABLE KF-AH 223-01217 FRAME, SWIVEL B KF-AH 223-01218 FRAME, FOAM KF-AH 210-00270 AXLE, PIVOT KF-AH 210-00257 POP PIN 210-00271 POP PIN, LOCKING KF-AH... -
Page 14: Warranty Information
Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product. - Page 15 Keys Fitness Products, l.P. 4009 distribution drive, Suite 250 Garland, Texas 75041 Customer Service: 1-888-340-0482...
