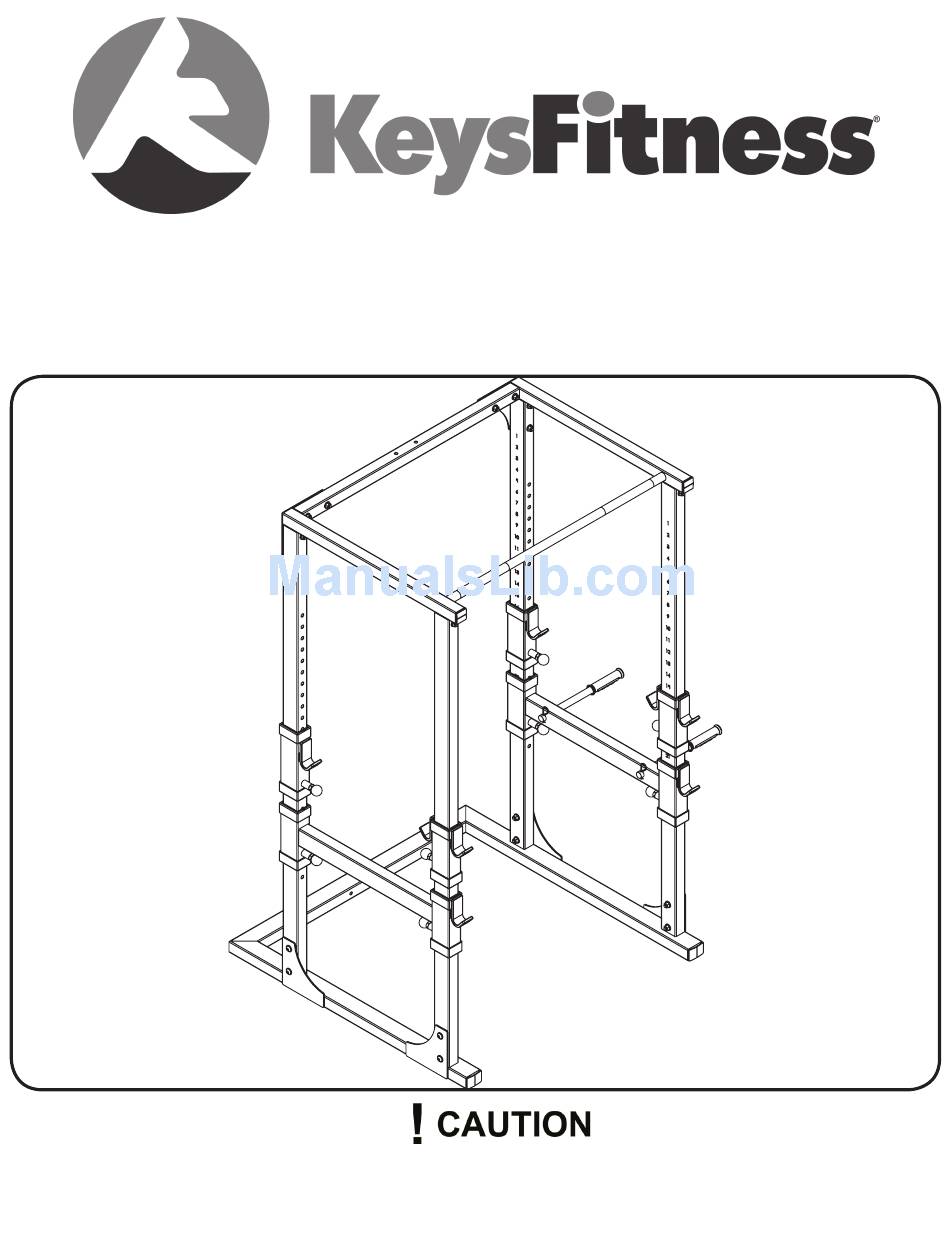

  • Page 1 Owner’s Manual 215-00100 10/06 Rev A KF-PC ower Read all precautions and instructions in this manual before using this equipment.
  • Page 2: Table Of Contents

    Table of Contents Important Safety Information Before You Start Assembly Parts List Exploded View Warranty Information...
  • Page 3: Important Safety Information

    Owner’s Manual and are familiar with safety information and precautions. • This unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.
  • Page 4: Before You Start

    This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Keys Fitness Helpline. We have trained service techni- cians on site to take care of you, our valued customer.
  • Page 5: Assembly

    Assembly...
  • Page 6 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Attach Rubber Pads (15) to underside of Base Frame (10). Attach Uprights (1,2,3,4) to Base Frame (10) using: 8 x (21) Bolt M12x75 16 x (24) Washer M12 8 x (23) Nylon Lock Nut M12 Note: Numbers on Uprights should face inward toward center of unit.
  • Page 7 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Assemble Slide Holders (6,7,8,9) onto uprights as shown above. Do not move on to STEP 3 before the Slide Holders are attached correctly.
  • Page 8: Assembly

    Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Connect Top Frame to Uprights using: 2 x (12) Steel Plate 4 x (20) Bolt M12x100 4 x (21) Bolt M12x75 2 x (22) Bolt M12x95 20 x (24) Washer M12 10 x (23) Nylon Lock Nut M12...
  • Page 9: Parts List

    RIGHT REAR UPRIGHT, KF-PC LEFT REAR UPRIGHT, KF-PC TOP FRAME, KF-PC REAR WEIGHT SLIDE HOLDER, KF-PC FRONT WEIGHT SLIDE HOLDER, KF-PC LEFT SLIDE CROSS WEIGHT HOLDER, KF-PC RIGHT SLIDE CROSS WEIGHT HOLDER, KF-PC BASE FRAME, KF-PC DIP BAR KPS-PC STEEL PLATE, KF-PC POP PIN (LOCKING), KF-PC PLASTIC SLEEVE, 63.5X88.9-50.8X76....
  • Page 10: Exploded View

    Exploded View...
  • Page 11: Warranty Information

    Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product.
  • Page 12 Keys Fitness Products, L.P. 4009 Distribution Drive, Suite 250 Garland, Texas 75041 Customer Service: 1-888-340-0482...
