KF-CR
C
R
alf
aise
Owner's Manual
215-00124
10/06 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Calf Raise KF-CR and is the answer not in the manual?

Questions and answers

Summary of Contents for Keys Fitness Calf Raise KF-CR

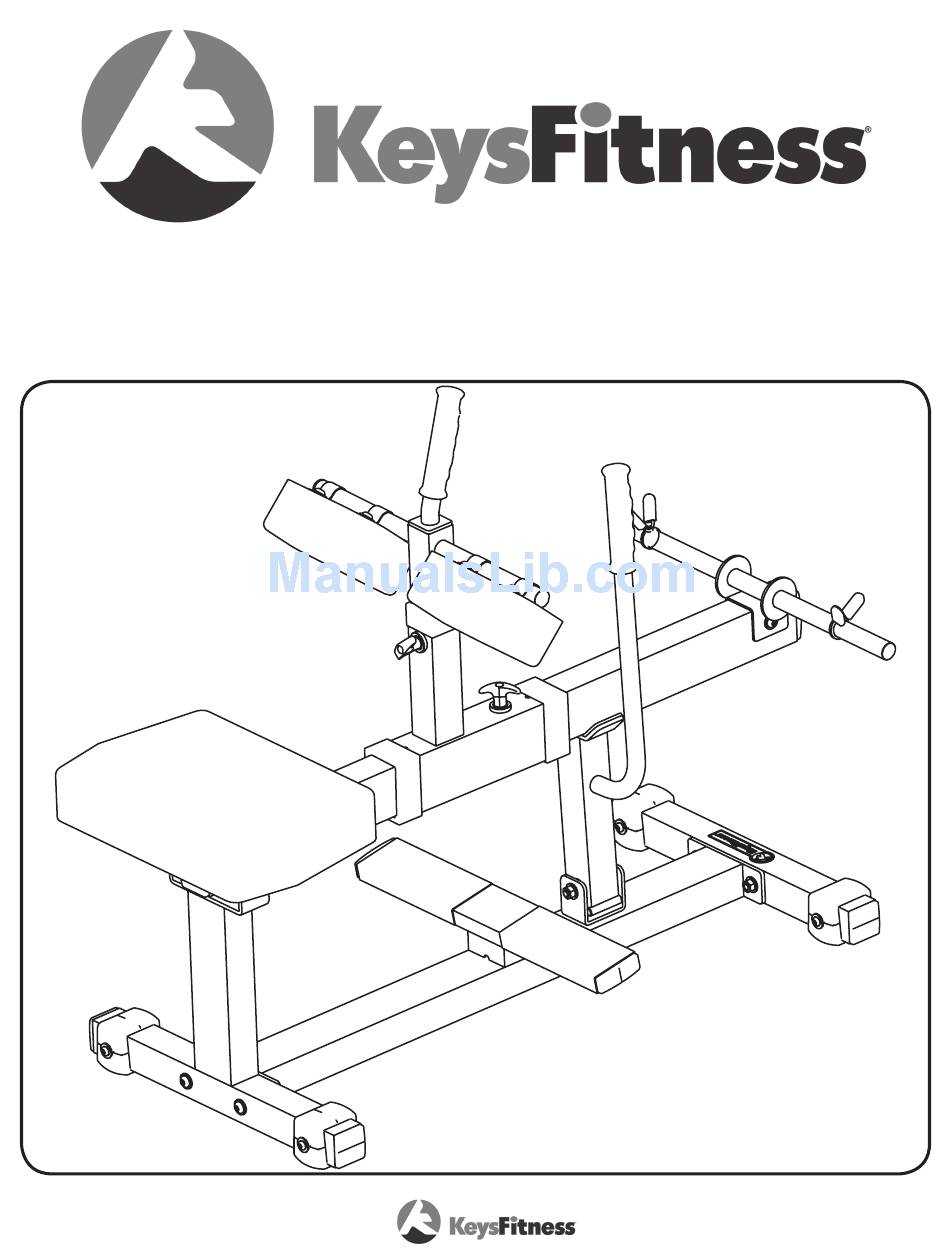

  • Page 1 KF-CR aise Owner’s Manual 215-00124 10/06 Rev A...
  • Page 2: Table Of Contents

    Table of Contents Before You Start Important Safety Information Assembly Parts List Exploded View Warranty Information 5 - 7...
  • Page 3: Before You Start

    Keys Fitness Help line. We have trained service techni- cians on site to take care of you, our valued customer.
  • Page 4: Important Safety Information

    • This unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.
  • Page 5: Assembly

    Assembly STEP 1 Connect Rear Upright (2) and Front Base (3) to Cross Base (1) using: 4 x (29) Bolt 8 x (33) Washer 4 x (32) Nylon Lock Nut...
  • Page 6 Assembly STEP 2 Attach Stopper Frame (5) to Cross Base (1) as shown using: 1 x (30) Bolt 2 x (33) Washer 1 x (34) Short Sleeve Tube 2 x (10) Bronze Bushing 1 x (32) Nylon Lock Nut Slide Adjustable Slide (6) onto Swing Frame (4) and secure with Long Pop Pin (8).
  • Page 7: Assembly

    Assembly STEP 3 Attach Seat (26) to Swing Frame (4) using: 2 x (27) Bolt Attach Right and Left Knee Pads (14) to Adjustable Pad Frame (7) using: 4 x (11) Bracket 8 x (27) Bolt 2 x (33) Washer 8 x (33) Washer...
  • Page 8: Parts List

    Parts list Ref # Part # 223-00985 223-00986 223-00987 223-00988 223-00989 223-00991 223-00990 210-00019 219-00324 202-00245 223-00611 210-00123 206-00327 228-00176 202-00253 206-00274 206-00195 206-00001 206-00001 206-00205 210-00021 206-00276 202-00215 228-00226 202-00635 202-00637 202-00690 202-00693 202-00091 202-00093 202-00254 219-00326 202-00659 202-00094 202-00216 202-00660 206-00469...
  • Page 9: Exploded View

    Exploded View...
  • Page 10: Warranty Information

    Warranty Information KEYS FITNESS PRODUCTS, L.P. This Warranty applies in the United States and Canada to products manufactured or distributed by Keys Fitness Products, LP (“Keys”) under the KEYS brand name. The warranty is non-transferable and valid only to the original purchaser. Keys warrants that the Product you have purchased for non-commercial, personal, family, or household use from Keys or from an authorized Keys reseller is free from defects in materials or workmanship under normal use during the warranty period. Your sales receipt, showing the date of purchase of the Product, is your proof of purchase. This warranty only extends to you, the original purchaser. It is not transferable to anyone who subsequently purchases or acquires the Product from you. This Warranty becomes VALID ONLY if the product is purchased through a Keys Fitness authorized dealer unless otherwise authorized by Keys Fitness in writing and must be assembled / installed according to the instructions included with the Product. In a light institutional setting, Keys will extend a one year limited warranty to the original purchaser. During the warranty period Keys will repair or replace (at Keys' option) the product if it becomes defective, malfunctions, or otherwise fails to conform with this Warranty under normal use. In repairing the Product, Keys may replace defective parts with new or, at the option of Keys, serviceable used parts that are equivalent to new parts in performance. All exchanged parts and Products replaced under this warranty will become the property of Keys. Keys reserves the right to change man- ufacturers of any part to cover any existing warranty. This warranty DOES NOT COVER shipping charges, export taxes, custom duties and taxes, or any other charges associ- ated with transportation of the parts or Product. To obtain warranty service, you must contact a Keys authorized retailer, service technician or Keys Fitness at our phone number located in this manual. Any parts determined to be defective must be returned to Keys to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges associated with transportation of the parts or Product. In addition, you are responsible for insuring any parts or Product shipped or returned. You assume the risk of loss during shipment. You must present Keys with proof-of-purchase documents (including the date of purchase). Any evidence of alteration, erasure or forgery of proof- of-purchase documents will be cause to void this Warranty. This Warranty does not extend to any product not purchased from Keys or from an authorized Keys reseller. This Limited Warranty does not extend to any Product that has been damaged or rendered defective; (a) as a result of accident, mis- use, or abuse; (b) by the use of parts not manufactured or sold by Keys; (c) by modification of the Product : (d) operation on incorrect power supplies; or (e) as a result of service by anyone other than Keys, or an authorized Keys warranty ser- vice provider. Product on which the serial number has been defaced or removed is not eligible for warranty service. Should any Product submitted for warranty service be found ineligible, an estimate of repair cost will be furnished and the repair will be made if requested by you upon Keys' receipt of payment or acceptable arrangements for payment. EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, KEYS MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. KEYS EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY.
  • Page 11 Keys Fitness Products, l.P. 4009 distribution drive, Suite 250 Garland, Texas 75041 Customer Service: 1-888-340-0482...
