KPS-CC
C
C
Owner's Manual
able
rossover
215-00132
11/06 Rev A

Advertisement

loading

Related Manuals for Keys Fitness Cable Crossover KF-CC

Summary of Contents for Keys Fitness Cable Crossover KF-CC

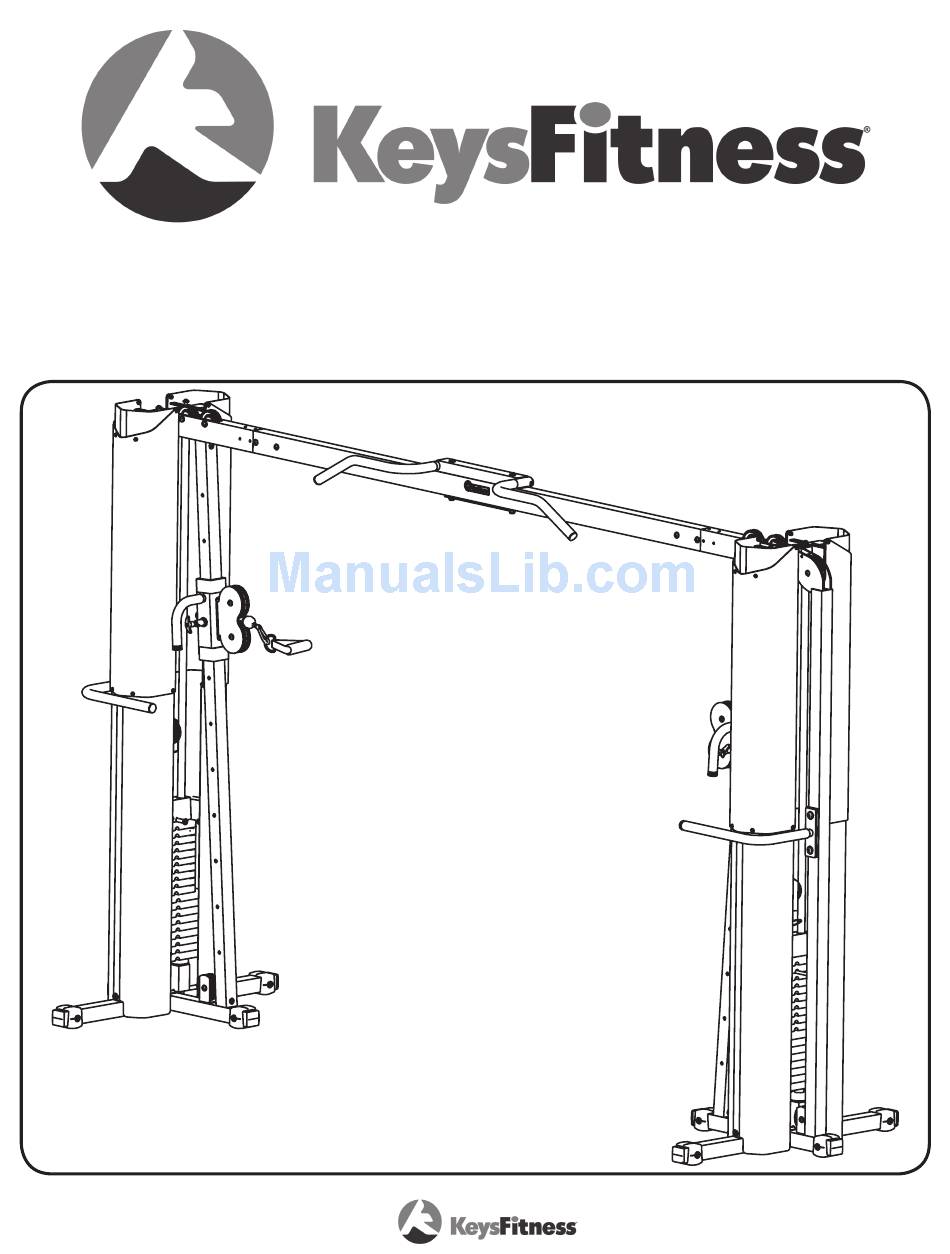

  • Page 1 KPS-CC Owner’s Manual able rossover 215-00132 11/06 Rev A...

  • Page 2: Table Of Contents

    Table of Contents Before You Start Important Safety Information Assembly Parts List Exploded View Warranty Information 5-1...

  • Page 3: Before You Start

    Keys Fitness Help line. We have trained service techni- cians on site to take care of you, our valued customer.

  • Page 4: Important Safety Information

    • This unit should only be used on a level surface and is intended for indoor use only. Keys Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.

  • Page 5: Assembly

    Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 1 Attach Middle Base () to Left Rear Upright (4) and Inner Base (1) using Bolts (4), Washers (53) and Nylon Lock Nuts (54).
  • Page 6 NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 2 Attach Middle Base () to Right Rear Upright (3) and Inner Base (1) using Bolts (4), Washers (53) and Nylon Lock Nuts (54).
  • Page 7 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 3 NOTE: Before completing any other steps, you should position noth ends of the unit 1 ft apart from each other to accommodate the Cross Tube (11). This will keep you from having to move the unit once it is loaded with weights.
  • Page 8 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 4 Insert Left Slide Frame () onto Slide Guide Tube (5) as shown and lock into one of the holes in tube. Attach Slide Guide Tube (5) to Inner Base (1) with Bolt (41), Washers (53) and Nylon Lock Nut (54).
  • Page 9 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 5 Insert Right Slide Frame () onto Slide Guide Tube (5) as shown and lock into one of the holes in tube. Attach Slide Guide Tube (5) to Inner Base (1) with Bolt (41), Washers (53) and Nylon Lock Nut (54).
  • Page 10 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 6 Slide Top Cross Tube (11) into both sides of the Top Frame (8) and secure as shown, using Bolts (41), Washers (53) and Nylon Lock Nuts (54). Note: two people will be needed to com- plete this step safely.
  • Page 11 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 7 Secure Big Pulleys (0) to Double Pulley Bracket (13) using Bolts (43), Washers (53), and Nylon Lock Nuts (54). Secure Double Pulley Bracket (13) to Left Slide Frame () using Bolt (4), Small Bushings (3) and Nylon Lock Nuts (54).
  • Page 12 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Step 8 Attach Handle (10) to each side of frame and secure with Bolts (39) and Washers (51). TIGHTEN All BOlTS ANd NUTS before continuing! Once all bolts and nuts are tightened, then attach Weight Shrouds (1,,3) with Allen Bolts (49) and Washers (5).

  • Page 13: Parts List

    Parts list Ref # KF-CC Parts list Rev A Part # description 3-010 BASE, INNER KF-CC 3-0103 BASE, MIDDLE KF-CC 3-0104 UPRIGHT, REAR RIGHT KF-CC 3-0105 UPRIGHT, LEFT REAR KF-CC 3-010 TUBE, SLIDE GUIDE KF-CC 19-000 LEFT SLIDE FRAME KPS-CC 19-00059 RIGHT SLIDE FRAME KPS-CC 19-0009...

  • Page 14: Exploded View

    Exploded View...

  • Page 15: Warranty Information

    Product from you. This Warranty becomes VALID ONLY if the product is pur- chased through a Keys Fitness authorized dealer unless otherwise authorized by Keys Fitness in writing and must be assembled / installed according to the instructions included with the Product.
  • Page 16 Keys Fitness Products, l.P. 4009 distribution drive, Suite 250 Garland, Texas 75041 Customer Service: 1-888-340-0482...
