Ironmaster Cable Tower Attachment
Assembly and Use Instructions

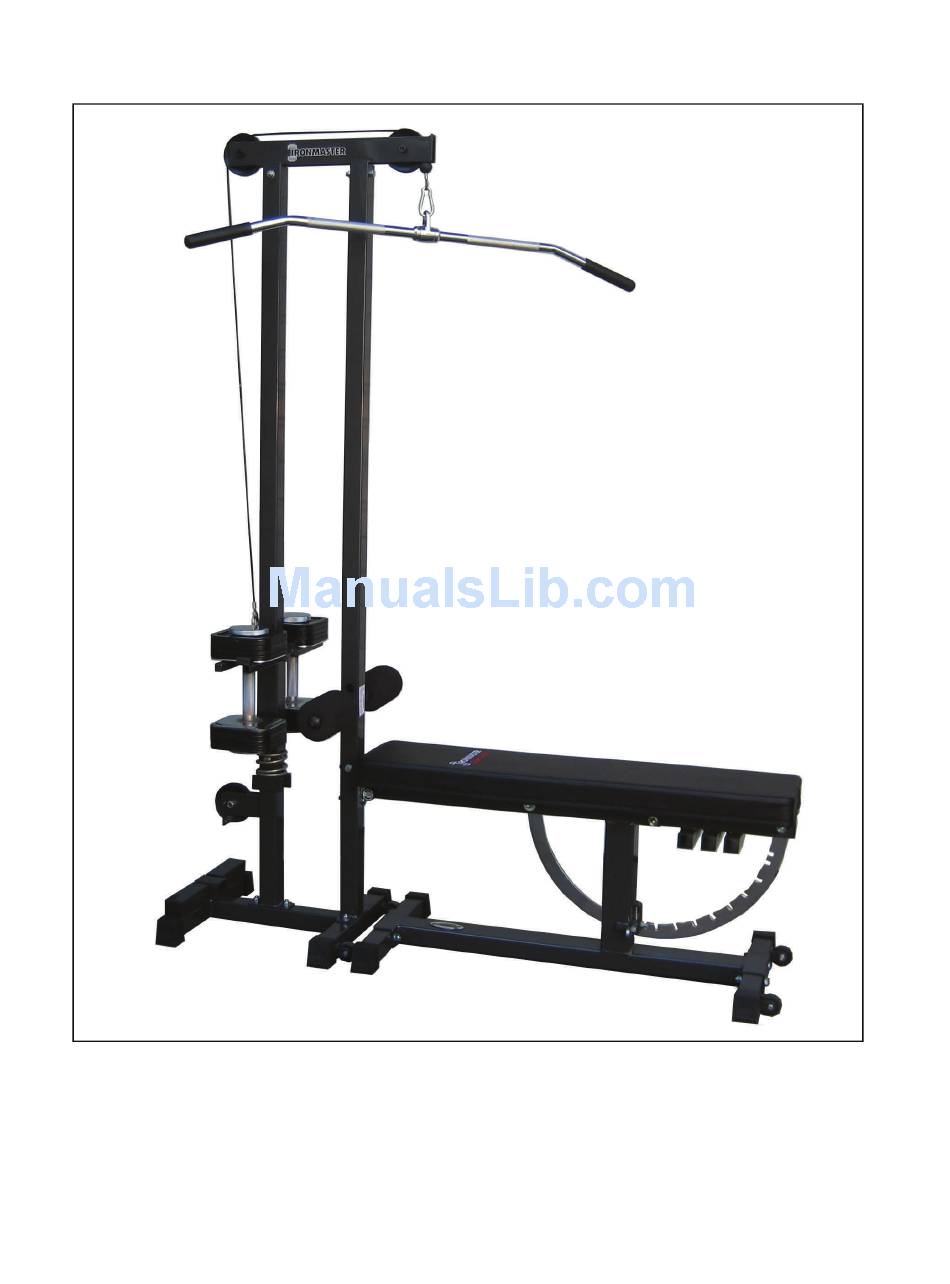

The Cable Tower Attachment is designed to connect to the Ironmaster Super Bench to
allow upper and lower pulley cable work. It has a unique weight carriage that allows
the use of the Ironmaster Quick-Lock Dumbbells to be the weight source or it will also
work with Standard or Olympic style plates. The system capacity is rated at 250lbs.
This device is not safe to use stand alone. It must always be connected to the Super
Bench when in use for safety.
Advertisement
Related Manuals for Ironmaster Cable Tower Attachment
Summary of Contents for Ironmaster Cable Tower Attachment
- Page 1 It has a unique weight carriage that allows the use of the Ironmaster Quick-Lock Dumbbells to be the weight source or it will also work with Standard or Olympic style plates. The system capacity is rated at 250lbs.
- Page 2 Congratulations on your purchase of this fine Ironmaster product. The following instructions will help you assemble the unit and provide some details on use as well. The only tools required are two adjustable wrenches. Unpack all the parts and make sure you have received all the parts as shown on the exploded view drawing and parts list.
- Page 3 ADAPTERS #28 as shown. Secure with the set screws. Push on the rubber rings #29 as bumpers. Step 7b: If you plan to use the Ironmaster Quick-Lock Dumbbells as the weight source on the carriage, install the CARRIAGE DUMBBELL ADAPTER #24 using bolt #6 and washers #3 with the Allen wrench as shown in the exploded view.
- Page 4 Cable system set up for upper pulley work. Carriage set up to accept the dumbbells. Note: The Super Bench is not shown in this illustration but should always be attached when in use.
- Page 5 Select either the shorter FRONT CABLE #26 for upper pulley work or the longer REAR CABLE #27 for lower pulley work. The CHAIN #20 may be connected to the cable end to lengthen the reach from the upper or lower pulley. Take care when routing the pulley cables to be sure they fit completely in the grooves.
- Page 6 Please visit www.ironmaster.com for more details. Warranty Information: Your Ironmaster attachment has a limited 10 year warranty to the original purchaser. Cables and pad- ding are covered for two years. Warranty covers repair or replacement for mechanical integrity when used according to the instructions for normal exercise use.
- Page 7 Exploded View—Ironmaster Cable Tower...
