Ironmaster Quick-Lock Operating Instructions Manual

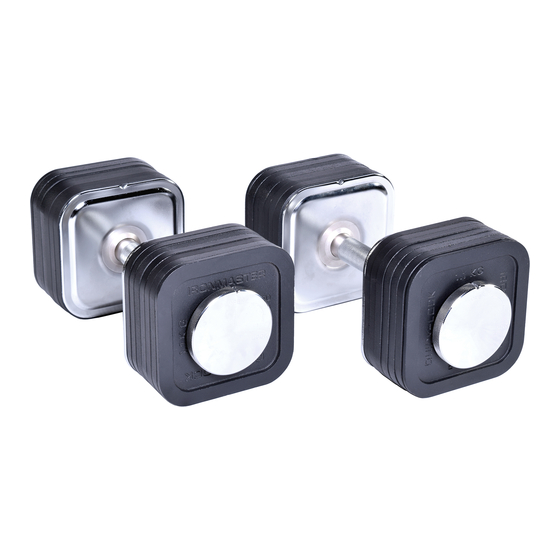

Ironmaster Quick-Lock Dumbbell System
Congratulations on your purchase of this fine Ironmaster product. Be sure to read and understand the oper-
ating instructions to achieve the best performance and avoid injury.

Description:

This adjustable dumbbell system is designed to change weights quickly and easily. This product is designed
for home use as adjustable dumbbell hand weights for many typical exercises. The system is sold in various
configurations with common components. There are no tools or assembly required for the dumbbells.
Items included for the standard 75 lb dumbbell system:
1.
Dumbbell handle pair with 4 locking screws.
2.
Dumbbell Stand – (May be sold separately, assembly required).
Quick-Lock weight plates: 24 ea. 5 lb weight plates and 4 ea. 2.5 lb weight plates total.
Items for the 45 lb dumbbell system:
1.
Dumbbell handle pair with 4 locking screws.
Quick-Lock weight plates: 12 ea. 5 lb weight plates and 4 ea. 2.5 lb weight plates total.

Weight Change:

The basic procedure to change dumbbell weights is to simply open the locking screws (4" diameter disc with
knurled grip and 1" diameter partially threaded shaft) by turning the disc counterclockwise until the "OPEN"
arrow and notch points up toward the notch indicator on the handles. The handle notch is found on one side
of the square, chrome backing plates that are welded to the handle grips. The notch should always be the top
of the handle when set down before changing. When the arrow on the locking screw is pointed up at the
notch, this is the open position where you can pull the locking screw directly out of the handle.
Alignment notch on handle
Operating Instructions
Notches aligned for locking screw removal Removing the locking screw
