Ironmaster Belt Squat Attachment Operating Instructions

Belt Squat Attachment for IM2000
Congratulations on your purchase of this fine Ironmaster product. Be sure to read and understand the
operating instructions to achieve the best performance and avoid injury.

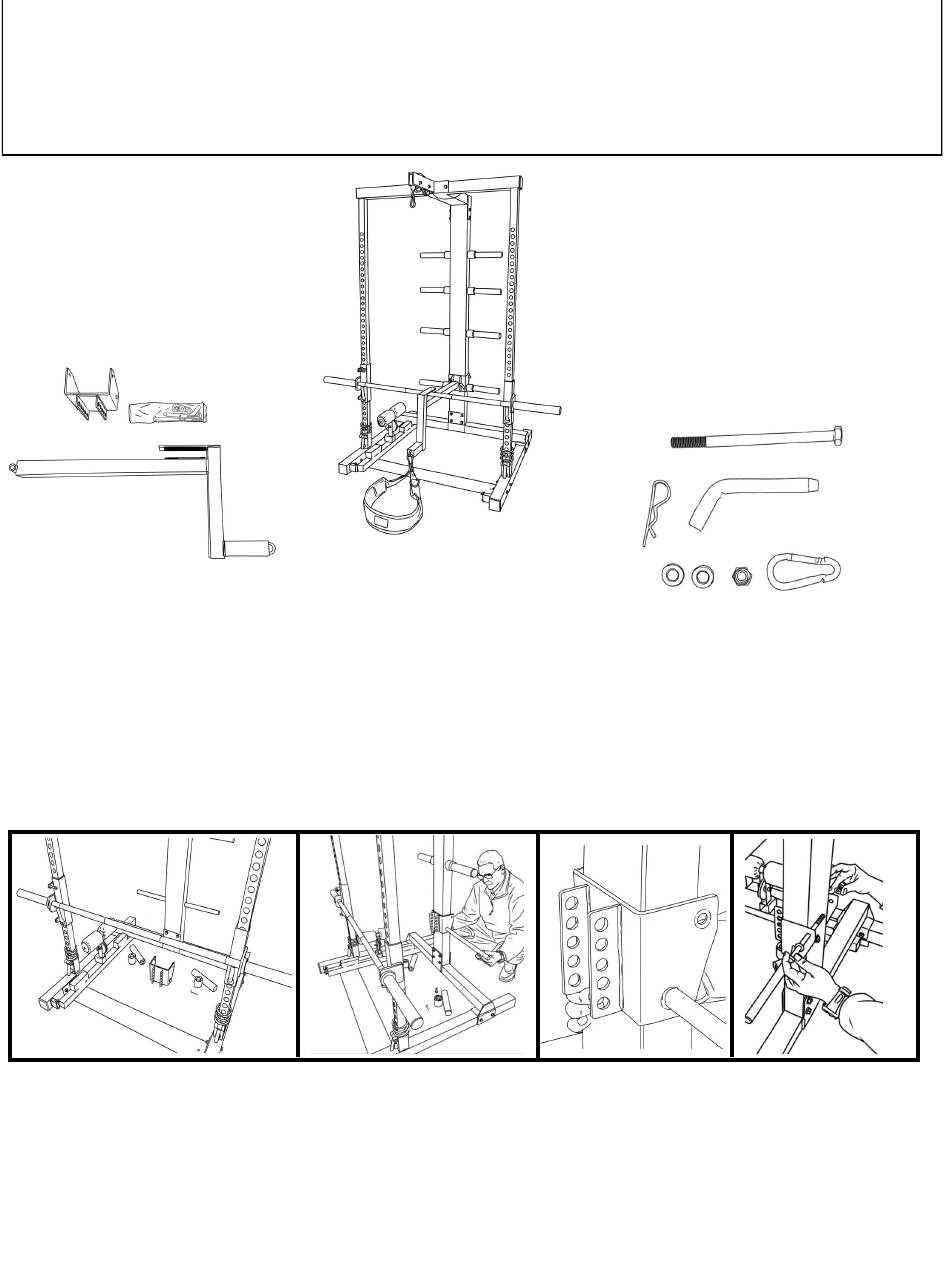

CONTENTS:
1x Belt Squat Attachment Main
Frame
1x Spine Tube Bracket
1x Hardware Pack
PRODUCT DESCRIPTION:
This device is for belt squats and to be used only in conjunction with the Ironmaster IM2000. The load
rating for this attachment is 600 lbs on the lifting bar. The lever advantage is approximately 70%. For
example if you load 300 lbs on the lifting bar (including the weight of the bar) you will feel 210 lbs. Only
load weight on the IM2000 lifting bar as shown in these instructions.
You may elect to use any appropriate work out belt that may safely attach to the supplied carabiner.
Assembly: Prepare your IM2000 for the Belt Squat attachment assembly by first removing your lower weights from
lowest PLATE HOLDER, then Olympic Sleeve Adaptors (if applicable) and STAND OFF Plastic Spacers as shown
above. Next, from the rear, remove the M10x40mm bolt and M10 Washer from the PLATE HOLDER and remove.
Next, take the BELT SQUAT BRACKET and align it as shown over the REAR SPINE of IM2000 and align lower large
hole with PLATER HOLDER hole on IM2000 SPINE. Install PLATE HOLDER through BRACKET and SPINE as
shown above and replace the M10x40mm bolt and washer. Next, using the supplied M12x180mm bolt, M12 Wash-
ers and M12 Nylock nut, secure the upper portion of the BELT SQUAT ATTACHMENT BRACKET to the SPINE of
IM2000. Tighten with two 19mm (3/4inch) wrenches, but only until bracket begins to distort slightly. Replace STAND
OFFS and Olympic sleeves on the PLATE HOLDER (if applicable).
Operating Instructions

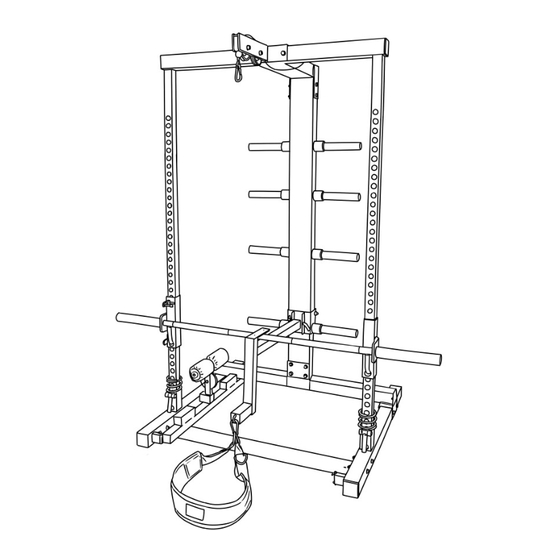

Shown with IM2000 and
Ironmaster Squat Belt
(sold separately)
BOLT PACK CONTENTS:
1x 180mm x 12mm Bolt
1x M12 Nylock Nut
2x M12 Washer
1x Pivot Pin/Retaining Clip
1x Carabiner
