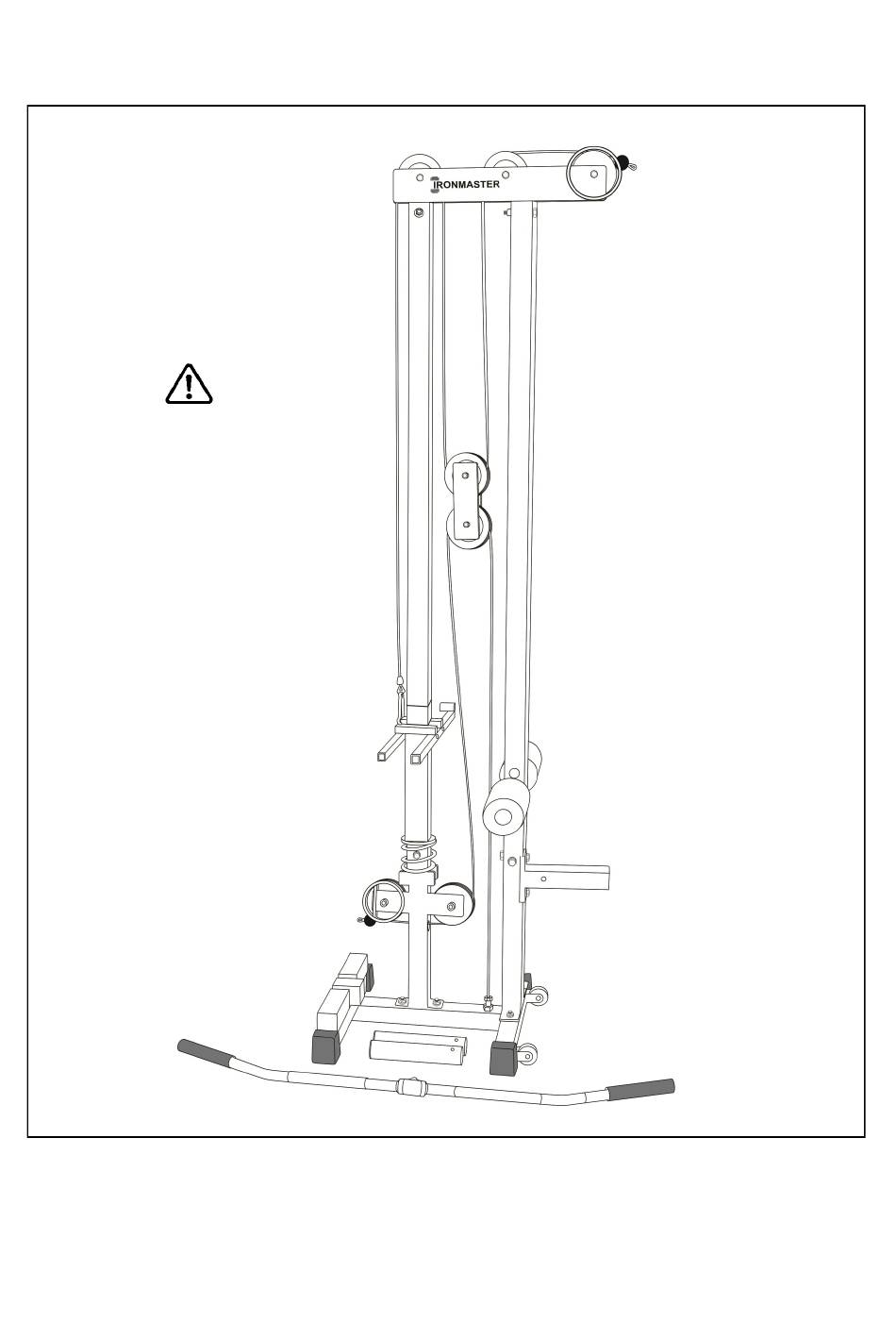

Ironmaster Cable Tower Attachment
Warning:
The Cable Tower attachment is
designed to be used only in
conjunction with the Ironmaster
Super Bench, and cannot be
safely used as either a stand
alone device or with any other
product.
Follow all assembly instructions
carefully.
The Cable Tower Attachment is designed to connect to the Ironmaster Super Bench to
allow upper and lower pulley cable work. It has a unique weight carriage that allows
the use of the Ironmaster Quick-Lock Dumbbells to be the weight source or it will also
work with Standard or Olympic style plates. The system capacity is rated at 250lbs.
Assembly and Use Instructions
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ironmaster Cable Tower Attachment
Summary of Contents for Ironmaster Cable Tower Attachment
- Page 1 It has a unique weight carriage that allows the use of the Ironmaster Quick-Lock Dumbbells to be the weight source or it will also work with Standard or Olympic style plates. The system capacity is rated at 250lbs.
- Page 2 Congratulations on your purchase of this fine Ironmaster product. The following instructions will help you assemble the unit and provide some details on use as well. The only tools required are two adjustable wrenches. Unpack all parts and make sure you have received all the parts as shown on the exploded view drawing and parts list. If you are missing anything or need anything, please contact Ironmaster right away and we will assist you.
- Page 3 Slide rail Pulley #15b/15c Weight Top Pulley Bolt #1 Carriage Washer #3 Bracket Nut #2 Bolt #1 Washer #3 Spring Nut #2 Front Tube Slide Rail Upright Upper cable Lower idle arm pulley to be installed after cable is threaded around pulley to allow cable head to pass.
- Page 4 Step 10: If you plan to use the Ironmaster Quick-Lock 2 included OLYM- Dumbbells as the weight source on the carriage, install PIC SLEEVE the CARRIAGE DUMBBELL ADAPTER #24 using bolt ADAPTERS #28 #6 with the Allen wrench as shown.
- Page 5 Adjust the stub height if necessary and spray a little silicone lubricant. For customer service, contact your local distributor or: Ironmaster LLC,14562 167th Ave SE Monroe, WA 98272 USA Web site: www.ironmaster.com Email: support@ironmaster.com Tel: 800-533-3339 or 1-360-217-7780...
- Page 6 Troubleshooting guide-Cable Tower Difficult to connect or remove Super Bench on The height of the stub may need to be adjusted to line Tower up well with the bench receiving tube. Loosen the stub mounting bolts and adjust then tighten. Use some silicone lubricant on the stub.
- Page 7 Ironmaster warrants to the original purchaser that this Home Fitness Product will be free from defects in workmanship and materials for a specific peri- od from date of purchase based on the part type listed below. During the warranty period, Ironmaster will either repair or replace, at its option, defec- tive part(s) at no charge.
- Page 8 Exploded View—Ironmaster Cable Tower...
