Ironmaster IM1500
Assembly and Use Instructions

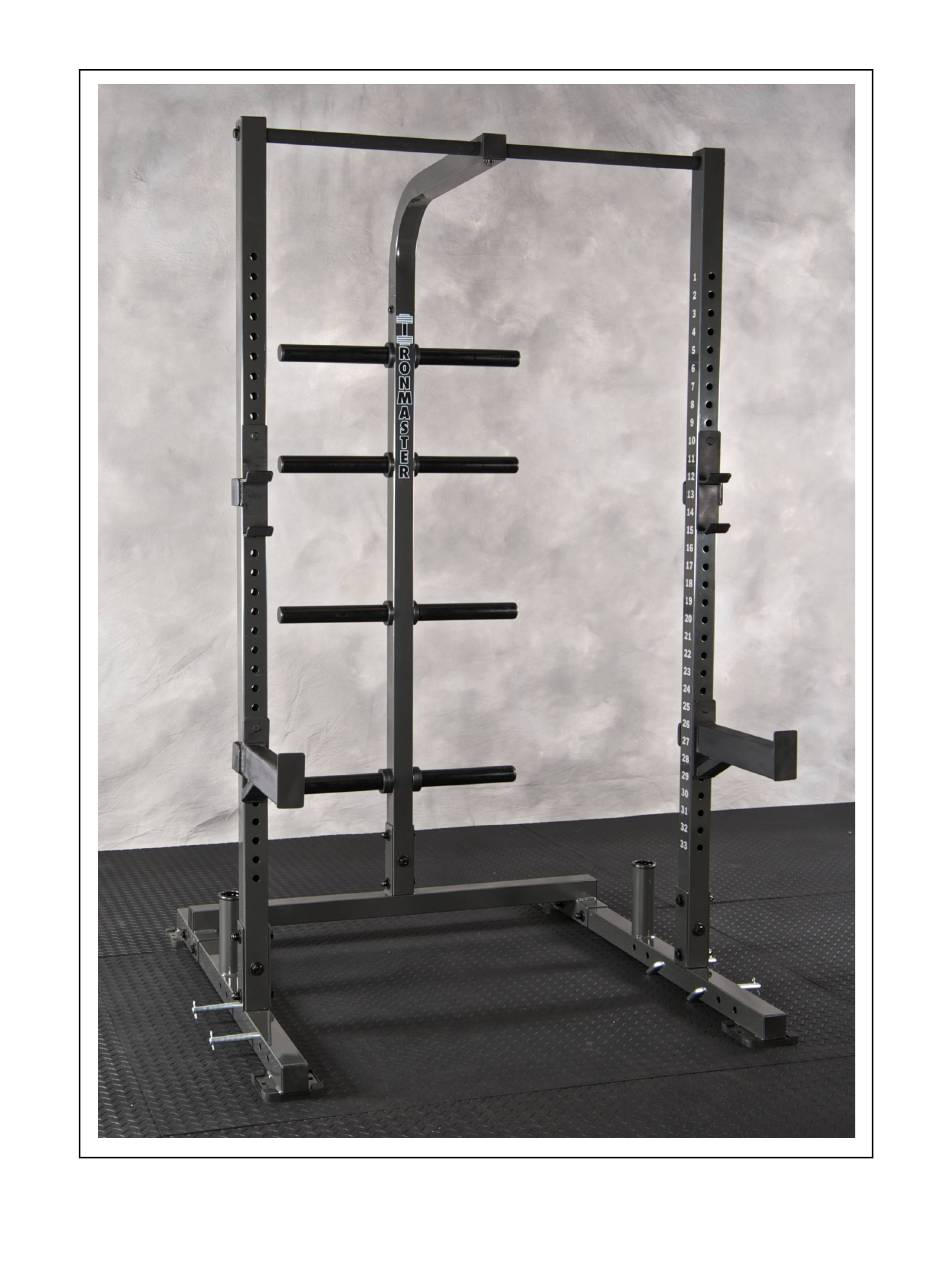

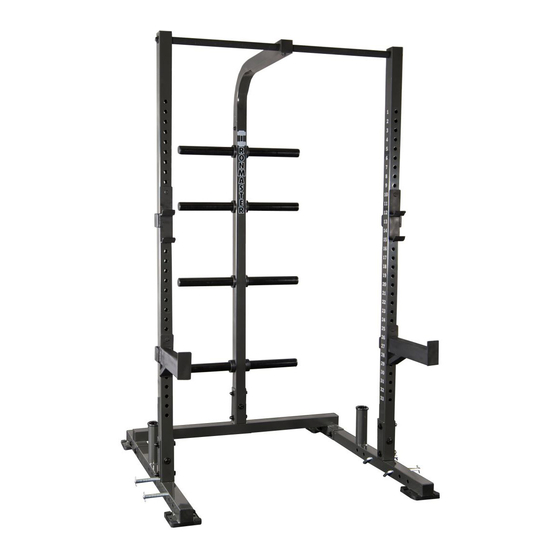

The IM1500 half cage is designed for barbell training with spotting capabilities.
Static weight rating is 1000 lbs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the IM1500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ironmaster IM1500

  • Page 1 Ironmaster IM1500 Assembly and Use Instructions The IM1500 half cage is designed for barbell training with spotting capabilities. Static weight rating is 1000 lbs.
  • Page 2 Congratulations on your purchase of this fine Ironmaster product. The following instructions will help you assemble the unit and provide some details on use as well. The only tools required are two adjustable wrenches. Unpack all the parts and make sure you have received all the parts as shown on the exploded view drawing and parts list. If you are missing anything or need anything, please call Ironmaster for assistance.
  • Page 3 Step 5: Install CHIN UP BAR #8 through the TOP CENTER #9 and align the holes in the center then secure with bolt #20 and washer #19. Step 6: Install TOP{ CENTER and CHIN UP BAR assembly down into the SPINE #11. Secure with 3 bolts #22 and washers #15.
  • Page 4 IM1500 shown loaded with Super Bench, Weight plates and bars—sold separately. The nuts for the frame have a nylon insert to help prevent loosening over time. This requires the use of two wrenches to fully tighten as shown here.
  • Page 5 Power bands (not included) may be used with the included band pegs. There are six peg positions available to provide various at- tachment points on the base and also to allow for pre stretching of the bands for different tensions. Be sure to use the spring clip re- tainers to help prevent the bands from coming off the pegs.
  • Page 6 10 49mm I.D., black rubber Warranty Information: Your Ironmaster product has a limited 10 year warranty to the original purchaser. Warranty covers repair or replacement for mechanical integrity when used according to the instructions for normal exercise use. Warranty covers in home use only. Finish and wear items such as rubber and painted surfaces are not covered.
