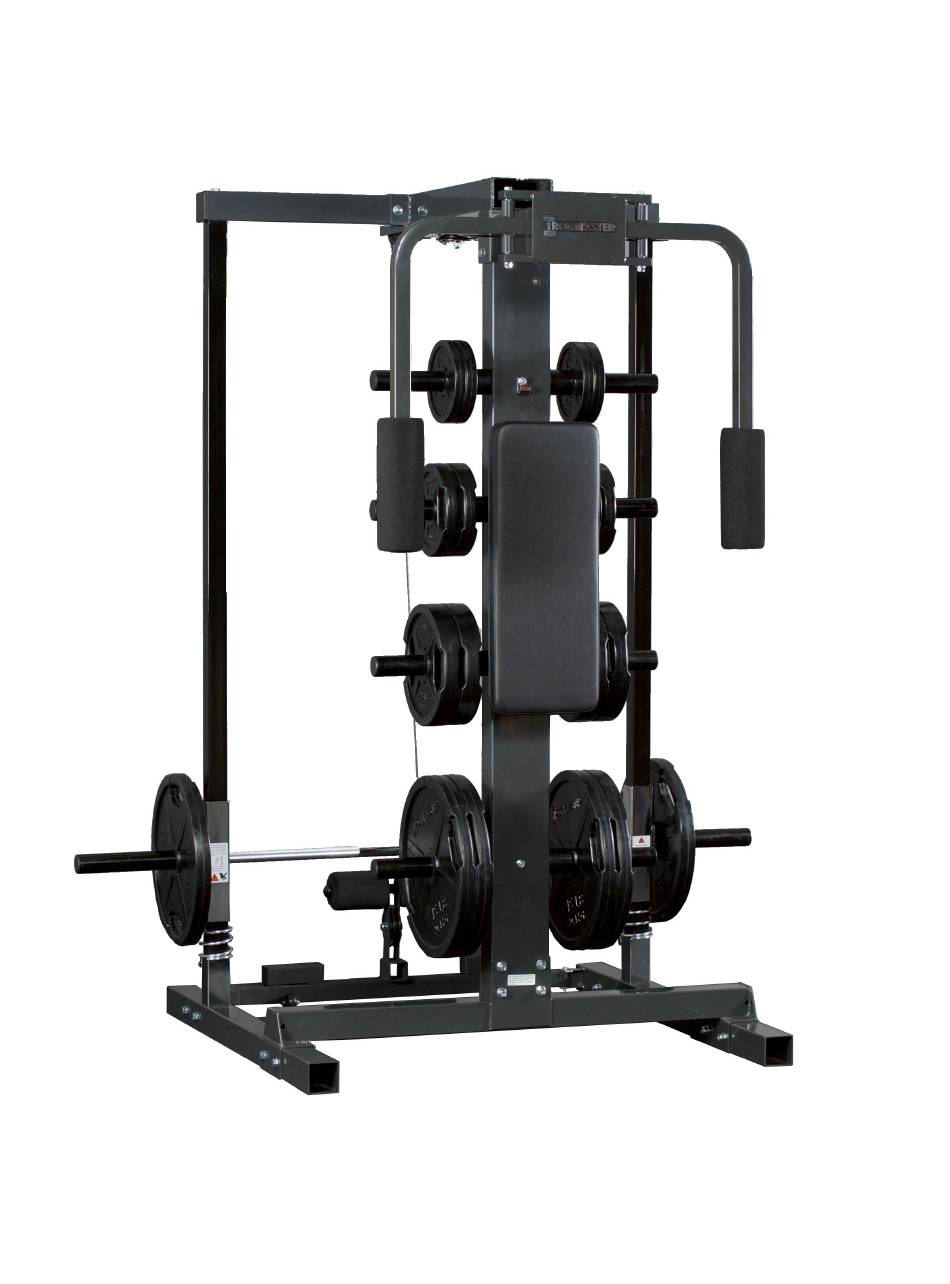

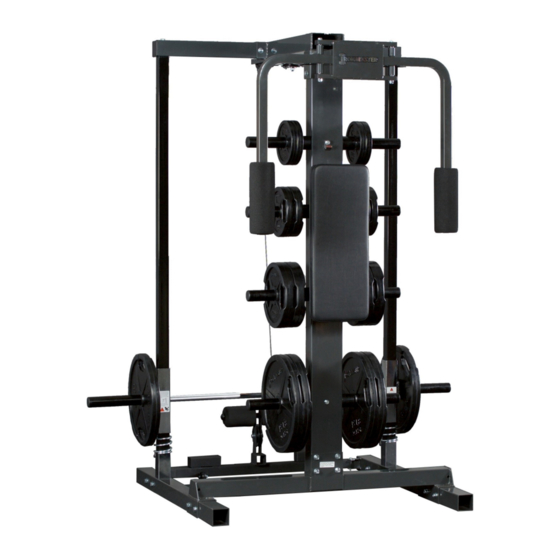

Ironmaster Pec Dec Attachment for IM2000

Assembly and Use Instructions

The Pec Dec Attachment is designed to fit on the Ironmaster IM2000 Self Spotting

Machine to perform isolation chest flyes. This device works the pectoral muscles and

provides an even resistance that you cannot duplicate with free weights. It uses the

main lifting bar as the weight source in a similar manner to the standard upper pulley

cable system. The system capacity is limited by the 350lb cable system rating.

Need help?

Do you have a question about the Pec Dec and is the answer not in the manual?

Page 1 Ironmaster Pec Dec Attachment for IM2000 Assembly and Use Instructions The Pec Dec Attachment is designed to fit on the Ironmaster IM2000 Self Spotting Machine to perform isolation chest flyes. This device works the pectoral muscles and provides an even resistance that you cannot duplicate with free weights. It uses the main lifting bar as the weight source in a similar manner to the standard upper pulley cable system.
Page 2 Item List: 1 ea. Bearing Housing 4 ea. M8 bolts 2 ea. Arms (Left and Right with foam pads) 4 ea. M8 flat washers 1 ea. Backrest Frame 2 ea. M10 long bolts 1 ea. Backrest Pad 2 ea. M10 flat washers 1 ea.
Page 3 10 years for frame and structural components. Shipping costs are not included in the warranty and some items may need to be sent to Ironmaster for repair or replacement. In- stallation of any parts and labor involved is not included. The warranties described above shall be the sole and exclusive remedy available to the purchaser.
Page 4 Cable must be routed over the front pulley and down between the pulleys. Do NOT route the cable over BOTH pul- leys or the cable with scrape on the frame here.
