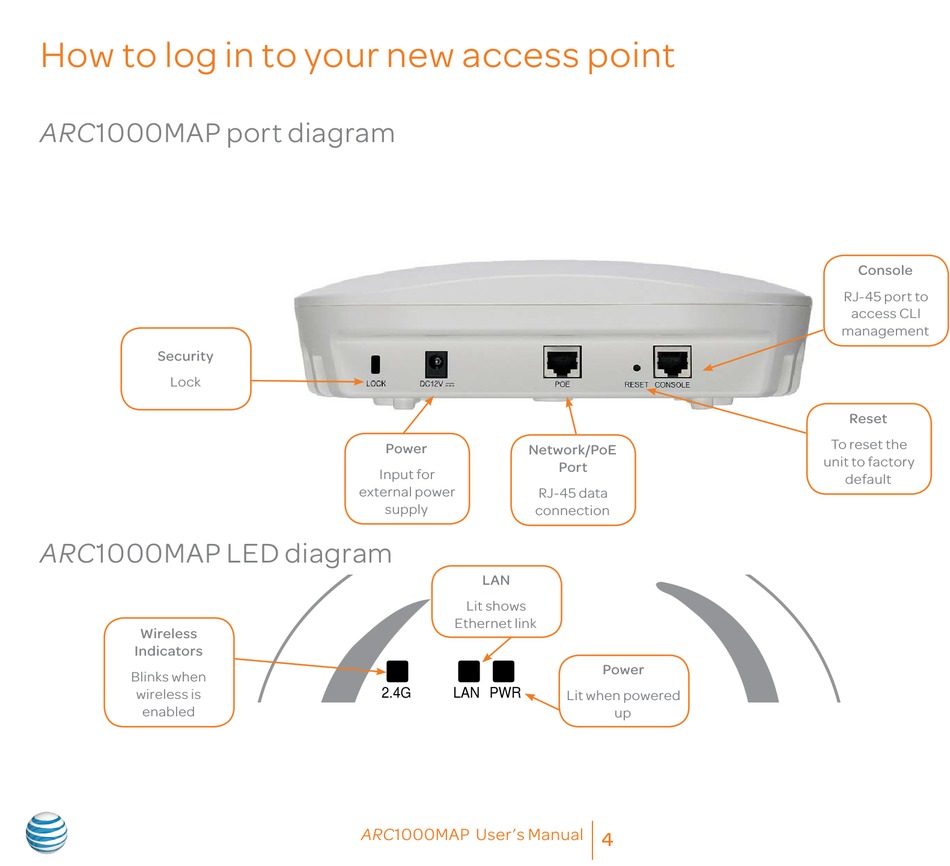

How to log in to your new access point

ARC1000MAP port diagram

Console
RJ-45 port to
access CLI
management
Security
Lock
Reset
To reset the
Power
Network/PoE
unit to factory
Port
Input for
default
external power
RJ-45 data
supply
connection
ARC1000MAP LED diagram
LAN
Lit shows
Ethernet link
Wireless
Indicators
Power
Blinks when
wireless is
Lit when powered
2.4G LAN PWR
enabled
Light display on top of AP up
ARC1000MAP User's Manual
4
