TN71-BP012
Service Engineer's Manual
1
http://www.tyan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TN71-BP012 and is the answer not in the manual?

Questions and answers

Related Manuals for TYAN TN71-BP012

Summary of Contents for TYAN TN71-BP012

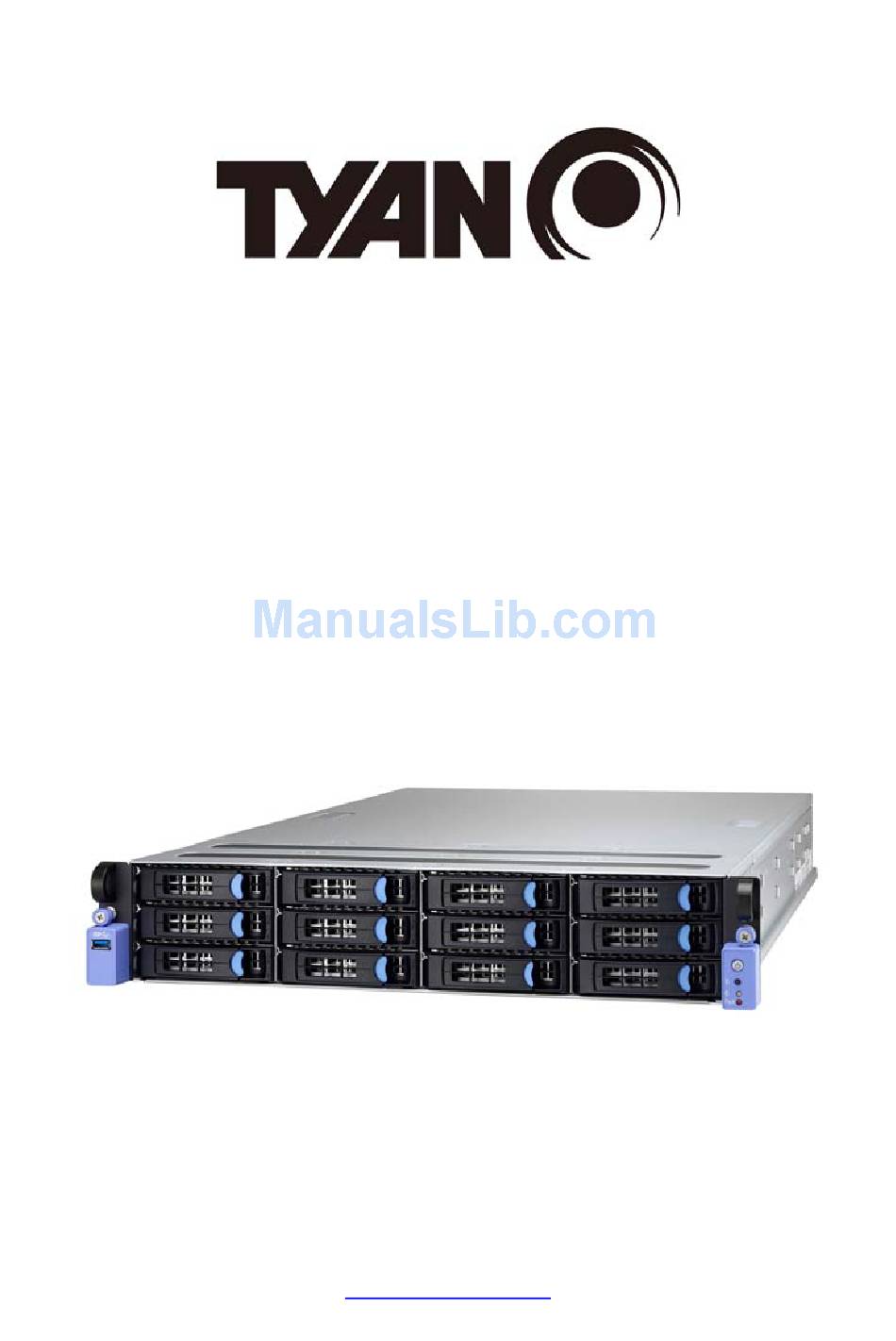

  • Page 1 TN71-BP012 Service Engineer’s Manual http://www.tyan.com...
  • Page 2 http://www.tyan.com...
  • Page 3 MITAC assumes no liability whatsoever, and ® disclaims any express or implied warranty, relating to sale and/or use of TYAN products including liability or warranties relating to fitness for a particular purpose or merchantability. MITAC retains the right to make changes to produce descriptions and/or specifications at any time, without notice.
  • Page 4 There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulations. この装置は、クラスＡ情報技術装置です。この装置を家庭環境で使用すると電波妨 害を引き起こすことがあります。この場合には使用者が適切な対策を講ずるよう要 求されることがあります。 ＶＣＣＩ－Ａ http://www.tyan.com...
  • Page 5 CNS 15663 Disclaimer: The information provided in this table is solely to comply with applicable laws of Taiwan. It does not create any warranties or liabilities on behalf of MITAC Computing Technology Corporation (“MITAC”) to customers. The table assumes that the product will be used under normal conditions in accordance with the MITAC operating manual. http://www.tyan.com...

  • Page 6: About This Manual

    How this guide is organized This guide contains the following parts: Chapter 1: Overview This chapter provides an introduction to the TYAN TN71-BP012 barebones and standard parts list, describes the external components, gives an overview of the product from different angles.

  • Page 7: Safety And Compliance Information

    Safety and Compliance Information Before installing and using TYAN TN71-BP012, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 8: Safety Information

    You must become familiar with the safety information in this guide before you install, operate, or service TYAN products. Symbols on Equipment Caution. This symbol indicates a potential hazard.
  • Page 9 · Make sure racks are coupled together if it is a multiple-rack installation. · Make sure the rack is level and stable before installing an appliance in the rack. · Make sure the leveling jacks are extended to the floor. http://www.tyan.com...
  • Page 10 If you do not ground the Green/Yellow tab, it can cause an electrical shock due to high leakage currents. · Do not place objects on AC power cords or cables. Arrange them so that no http://www.tyan.com...
  • Page 11 TYAN, your authorized TYAN partner, or their agents. Equipment Modifications · Do not make mechanical modifications to the system. TYAN is not responsible for the regulatory compliance of TYAN equipment that has been modified.
  • Page 12 – Liquid has been spilled on the product or an object has fallen into the product. – The product has been exposed to rain or water. – The product has been dropped or damaged. – The product does not operate normally when you follow the operating instructions. http://www.tyan.com...

  • Page 13: Table Of Contents

    Table of Contents Chapter 1: Overview............... 15   About the TYAN TN71-BP012 ..........15   Product Models ............... 15   Features .................. 16   Standard Parts List ..............23   1.4.1 Box Contents ..............23   1.4.2 Accessories ..............23  ...
  • Page 14 Appendix III: FRU Parts Table ............. 119   Appendix IV: Set BMC IP address ..........121   Via Petitboot to set BMC IP ............ 121   Via MEGARAC to set BMC IP ..........125   Appendix V: Technical Support ..........127   http://www.tyan.com...

  • Page 15: Chapter 1: Overview

    IT demand but also offers a smooth path for future application usage. ® TYAN also offers the TN71-BP012 in a version that can support up to fourteen 3.5” fixed hard drives. The TN71-BP012 uses TYAN’s latest chassis featuring a robust structure and a solid mechanical enclosure.

  • Page 16: Features

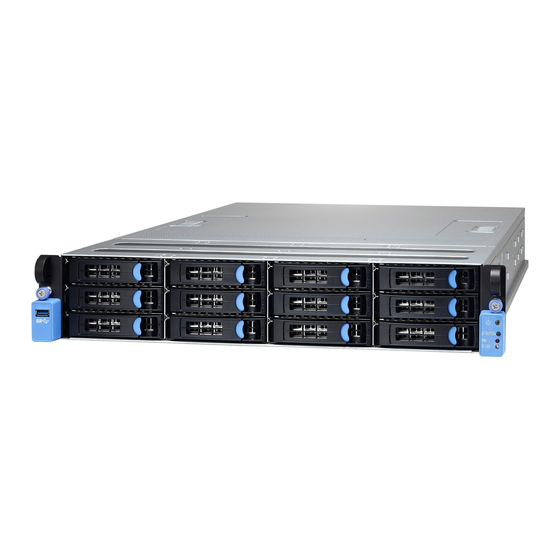

    Features TYAN TN71-BP012 (BSP012T71V14HR-4T-3) Form Factor 2U Rackmount Gross Weight 21 kg Chassis Model TN71 System Dimension (D x W x 28" x 17.72" x 3.43" (711 x 450 x 87mm) Barebone BP012T71V14HR Motherboard SP012GMR Buttons (1) ID / (1) PWR w/ LED...
  • Page 17 Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) Environment In/Non-operating 90%, non-condensing at 35° C Humidity RoHS RoHS 6/6 Compliant Yes (1) TN71-BP012 Barebone w/MP012-9235-4I SATA Barebone Package 6G Mezz Card Contains Manual (1) Web User's manual / (1) Quick Installation Guide...
  • Page 18 (8) R-DDR3L 16GB (Samsung R-DDR3L) / (1) IBM POWER8 8-Core 3.325 GHz processor / (1) Others MP012-B840-4T Qlogic10GbE LAN Mezz Card / (2) 4TB HDDs (Toshiba) TYAN TN71-BP012 (BSP012T71V14HR-4T-4) Form Factor 2U Rackmount Gross Weight 21 kg Chassis Model TN71...
  • Page 19 1.35V Pre-install Memory (16) R-DDR3L 16GB (Samsung R-DDR3L) PCI-E (1) PCI-E Gen3 x16 slots / (3) PCI-E Gen3 x8 slots Expansion Slots Pre-install TYAN MP012-9235-4I / MP012-B840-4T Mezz Card Port Q'ty (1) PHY / (4) 10GbE ports Pre-install TYAN (1) MP012-B840-4T Qlogic10GbE LAN Mezz Card...
  • Page 20 (1) TN71-BP012 Barebone w/MP012-9235-4I SATA Barebone 6G Mezz Card Manual (1) Web User's manual / (1) Quick Installation Guide Package (1) MP012-B840-4T Qlogic10GbE LAN Mezz Card / Contains (1) IBM POWER8 10-Core 2.926 GHz processor / Others (16) R-DDR3L 16GB (Samsung R-DDR3L) / (2)
  • Page 21 1.35V Pre-install Memory (32) R-DDR3L 16GB (Samsung R-DDR3L) PCI-E (1) PCI-E Gen3 x16 slots / (3) PCI-E Gen3 x8 slots Expansion Slots Pre-install TYAN MP012-9235-4I / MP012-B840-4T Mezz Card Port Q'ty (1) PHY / (4) 10GbE ports Pre-install TYAN (1) MP012-B840-4T Qlogic10GbE LAN Mezz Card...
  • Page 22 In/Non-operating 90%, non-condensing at 35° C Humidity RoHS RoHS 6/6 Compliant Yes (1) TN71-BP012 Barebone w/MP012-9235-4I SATA Barebone 6G Mezz Card Manual (1) Web User's manual / (1) Quick Installation Guide Package (1) MP012-B840-4T Qlogic10GbE LAN Mezz Card / Contains (1) IBM POWER8 10-Core 2.926 GHz processor /...

  • Page 23: Standard Parts List

    If any items are missing or appear damaged, contact your retailer or browse to TYAN’s website for service: http://www.tyan.com The web site also provides information of other TYAN products, as well as FAQs, compatibility lists, BIOS settings, etc. Accessory Kit (2) US Power Cord ...

  • Page 24: About The Product

    HDD5 HDD8 HDD11 HDD1 HDD4 HDD7 HDD10 HDD0 HDD3 HDD6 HDD9 Description USB3.0 Port Front Panel Board Power On/Off Button with green LED ID Button ID LED (blue color) FAULT LED (amber color) (12) 3.5” SAS/SATA 6G/12G hot-swap HDDs http://www.tyan.com...
  • Page 25 Activity LED (Green color) Status LED (Orange color) Drive State Drive Present, No Activity Solid On Drive Present, with Activity Blinking Drive Fail Don’t care Solid On Drive identify Don’t care Blinking @ 1Hz Drive Rebuild Don’t care Blinking @ 4Hz http://www.tyan.com...

  • Page 26: System Rear View

    ID LED IPMI/BMC Connector (1) USB1.1 port (no function) Serial Port VGA Port (2) USB3.0 Ports LAN1 (via Mezz LAN Card) LAN2 (via Mezz LAN Card) LAN3 (via Mezz LAN Card) LAN4 (via Mezz LAN Card) (4) HH-FL PCIE Slots http://www.tyan.com...
  • Page 27 Rear 2-in-1 HDD Tray HDD State Color LED Behavior HDD present, no data Green Solid on transferring HDD present, data Green Blinking transferring HDD not present Green http://www.tyan.com...

  • Page 28: System Top View

    System Top View Description (12) 3.5” 6G/12G SAS/SATA hot-swap HDDs HDD Backplane Board System Fans Memory Slots CPU Air Duct (2) 3.5” 6G SATA HDDs Power Distribution Board (1+1) 1000W/1200W RPSU NOTE: The system is pre-installed with SP012 mainboard. http://www.tyan.com...

  • Page 29: Chapter 2: Setting Up

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 30: Precautions

    Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to TN71-BP012 or injury to yourself.  Ground yourself properly before removing the top cover of the system.

  • Page 31: Installing Motherboard Components

    CPU, heatsink, air duct, memory modules, HDD and LAN Card. 2.1.1 Removing the Chassis Cover Follow these instructions to remove the TN71-BP012 chassis cover. Unscrew the top cover. Slide the top cover off. Remove the top cover from the chassis.

  • Page 32: Removing The Air Duct

    2.1.2 Removing the Air Duct Follow these instructions to remove the TN71-BP012 air ducts. Take off the CPU air duct. Unscrew to take off the PCI air duct. Disconnect the cables. http://www.tyan.com...
  • Page 33 Take off the 2-in-1 HDD tray. Remove the HDD air duct. http://www.tyan.com...

  • Page 34: Installing The Cpu, Heatsink And Air Duct

    Place the CPU into the socket and make sure that the gold arrow is located in the right direction. Attach the thermal pad onto the CPU. NOTE: DO NOT apply any thermal grease/pad other than the one shipped with heatsink onto the CPU. http://www.tyan.com...
  • Page 35 Pull the clips to place the heatsink on top of the CPU. Use the hex wrench to secure the heatsink to the chassis. Place the air duct on top of the heatsink as shown below. http://www.tyan.com...

  • Page 36: Installing The Memory

    Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. Follow the recommended memory population table to install the other memory modules. http://www.tyan.com...
  • Page 37 DIMM Population Table DIMM Plug Rules http://www.tyan.com...
  • Page 38 http://www.tyan.com...

  • Page 39: Installing The Lan Mezz Card

    2.1.5 Installing the LAN Mezz Card Follow these instructions to install the LAN Mezz Card. Locate the four screw holes for the LAN Mezz Card Place the LAN Mezz card onto the holes and secure it with four screws. http://www.tyan.com...

  • Page 40: Installing Hard Drives

    Push the latch to pull the hard disk cage out. (Option 1: 3.5” HDD) Place a 3.5" hard drive into the HDD cage and push the HDD in the direction as the arrow shows to secure the hard disk drive. http://www.tyan.com...
  • Page 41 Follow the same procedures to install the second hard disk drive. (Option 2: 2.5” HDD) Place 2.5" hard drives into the HDD cage. Turn the HDD cage over and secure the hard drives to the HDD cage with 8 screws. http://www.tyan.com...
  • Page 42 Reinsert the HDD cage into the chassis. http://www.tyan.com...
  • Page 43 Front HDD Trays Push the latch to pull the hard disk tray out. http://www.tyan.com...
  • Page 44 Place a 3.5" hard drive into the HDD tray and secure the HDD with 4 HDD screws. (Option 2: 2.5” HDD) Place a 2.5” hard drive into the HDD tray. Turn the HDD tray over and secure the HDD with 4 screws. http://www.tyan.com...
  • Page 45 Reinsert the HDD tray into the chassis. http://www.tyan.com...

  • Page 46: Rack Mounting

    2.2.1 Installing the Server in a Rack Follow these instructions to mount the TYAN TN71-BP012 into an industry standard 19" rack. NOTE: Before mounting the TYAN TN71-BP012 in a rack, ensure that all internal components have been installed and that the unit has been fully tested.

  • Page 47: Installing The Inner Rails To The Chassis

    Installing the inner Rails to the Chassis Release and detach the inner rail from the sliding rail. Align the inner sliding rail on one side of the server. Pull the inner sliding rail forward to secure it to the chassis. http://www.tyan.com...
  • Page 48 Screw the inner rail to the chassis. Align and screw the inner sliding rail on the other side of the server. http://www.tyan.com...

  • Page 49: Installing The Outer Rails To The Rack

    2.2.3 Installing the Outer Rails to the Rack Secure the outer rails to the rack. Screw the outer rails to the rack. http://www.tyan.com...

  • Page 50: Rack Mounting The Server

    2.2.4 Rack mounting the Server Lift the unit and then insert the inner slide rails into the middle rails. Push the whole system into the rack. Secure the whole system to the rack with 2 thumb screws. http://www.tyan.com...

  • Page 51: Chapter 3: Replacing Pre-Installed Components

    This chapter explains how to replace the pre-installed components, including the SP012 Motherboard, M1271T71-BP12-12 12-Ports 6G/12G HDD Backplane Board, M1715T71-FPB Front Panel Board, M1619T71-D-PDB Power Distribution Board, MP012-9235-4I Storage Mezz Card, System Fan and Power Supply Unit etc. 3.0.2 Disassembly Flowchart The following flowchart outlines the disassembly procedures. http://www.tyan.com...

  • Page 52: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover. Follow Section Removing the Chassis Cover (page 31) to remove the cover of the 2.1.1 TN71-BP012. Replacing Motherboard Components Follow these instructions to replace motherboard components, including the motherboard.
  • Page 53 http://www.tyan.com...

  • Page 54: Removing The Motherboard

    FRU and follow the instruction stated in Section 2.1.3 Installing the CPU, Heatsink and Air Duct (page 34). Remove the 13 screws securing the motherboard to the chassis. Carefully lift the motherboard from the chassis. http://www.tyan.com...

  • Page 55: Replacing The Storage Mezz Card

    MP012-9235-4I Storage Mezz Card. Unscrew the Storage Mezz Card and disconnect the cable connected to the card. Lift the card to replace with a new one. Follow the procedures in reverse order to reinstall a new Storage Mezz Card. http://www.tyan.com...

  • Page 56: Replacing The Power Distribution Board

    Replacing the Power Distribution Board Follow these instructions to replace the M1619T71-D-PDB Power Distribution Board. Remove the power supply modules. Unscrew the PDB Cage. Disconnect the power cable and PSU control cable. http://www.tyan.com...
  • Page 57 Push the PDB Cage aside to slip it off. Unscrew the power distribution board to replace a new one. Follow the steps described earlier in reverse order to reinstall the power distribution board into the chassis. http://www.tyan.com...

  • Page 58: Power Distribution Board Features

    3.4.1 Power Distribution Board Features Front View Rear View Form Factor W75xL39xT2.0mm, 6-layer PCB (1) 50-pin PSU Connector (J1) Connectors (1) 24-pin Power Connector (PWR2) (1) 20-pin PSU Connector (J2) http://www.tyan.com...

  • Page 59: Pin Definitions

    J1: 50-Pin PSU Connector NET NAME NET NAME NUMBER NUMBER VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 PSU_A0 PSU_SDA PSU_A1 PSU_SCL VCC12_STB PSU_PSON PSU_SMART_ON PSU_SMBALERT PSU_12LS PSU_RETURN_S PSU_PRESANT_N PSU_12VRS PSU_PS_KILL PSU_PWOK http://www.tyan.com...
  • Page 60 NUMBER NUMBER VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 VCC12 J2: 20-Pin PSU Connector NET NAME NET NAME NUMBER NUMBER PSU_A1 PSU_SDA VCC12_STB PSU_SMART_ON PSU_SCL PSU_RETURN_S VCC12_STB PSU_12LS PSU_PSON PSU_12VRS PSU_PRESANT_N PSU_SMBALERT PSU_PWOK PSU_A0 PSU_PS_KILL http://www.tyan.com...

  • Page 61: Replacing The Hdd Backplane Board

    Replacing the HDD Backplane Board Follow these instructions to replace the M1271T71-BP12-12 12-Ports HDD Backplane Board. Pull all front HDD trays out. Disconnect all fan cables. Take out the fan modules. http://www.tyan.com...
  • Page 62 Disconnect the power cable and FAN control cable. Disconnect the 3pcs Mini-SAS HD cable. http://www.tyan.com...
  • Page 63 Unscrew the HDD BP bracket. Loose the screws on both sides of the chassis. Take out the HDD BP board. http://www.tyan.com...
  • Page 64 Release 8 push pins to lift the mylar. Loose ten screws to replace with a new HDD BP Board. Reinstall the HDD BP Board into the chassis following the steps in reverse. http://www.tyan.com...

  • Page 65: Hdd Bp Board Features

    (3) Mini-SAS HD Connector connected to MB Specifications (MINI_SAS0~2) (1) 12-pin Power Connector connected to MB (PW5) (1) 30-pin Fan Connector connected to MB (J36) (5) 6-pin Fan Connector connected to Fan (FAN1~5) (12) HDD Active LEDs LEDs (12) HDD Fault LEDs http://www.tyan.com...

  • Page 66: Connector Pin Definitions

    VDD_12_RUN VDD_12_RUN J36: 30-pin FAN Connector Definition Definition FAN_TACH1 FAN_TACH6 FAN_TACH2 FAN_TACH7 FAN_TACH3 FAN_TACH8 FAN_TACH4 FAN_TACH9 FAN_TACH5 FAN_TACH10 CON_PWM2 CON_PWM1 FAN_TACH11 FAN_TACH12 CON_PWM3 FAN_TACH13 FAN_TACH15 FAN_TACH14 FAN_TACH16 CON_PWM4 CON_PWM6 FAN1~FAN5: 6-pin FAN Connector Definition Definition VDD_12_FAN1 CON_PWM1 FAN_TACH1 VDD_12_FAN1 http://www.tyan.com...

  • Page 67: Replacing The Front Panel Board

    Front Panel Board. Unscrew the front panel bezel. Take out the front panel bezel and unscrew the Front Panel Board. Disconnect the Front Panel control cable. Reinstall the Front Panel Board into the chassis following the steps in reverse. http://www.tyan.com...

  • Page 68: Front Panel Board Features

    Specifications (1) ID Button (SW1) (1) blue color ID LED (LED_ID1) (1) orange color FAULT LED (LED_FAULT1) 3.6.2 Connector Pin Definitions J1: Front Panel Board Connector Definition Definition FP_PW_LED_PW FP_PWR_BTN_N VCC_FPB FP_ID_LED_PW FP_PW_LED_GND FP_ID_LED_N FP_SMB_DAT BMC_HW_FAULT_N FP_SMB_CLK FP_IDLED_BTN_N BMC_SYS_FAULT_N http://www.tyan.com...

  • Page 69: Replacing The Usb Board

    Replacing the USB Board Follow these instructions to replace the M1714T71-USB USB Board. Unscrew 4 screws to release the USB board bezel and mounting ear. Take out the USB Board bezel. Disconnect the Front USB3.0 Cable. http://www.tyan.com...
  • Page 70 Unscrew the USB Board bracket. Slide to take out the USB Board bracket. Unscrew the USB Board to replace with a new one. Reinstall the USB Board bracket into the chassis following the steps in reverse order. http://www.tyan.com...

  • Page 71: Replacing The Fans

    Replacing the Fans Follow these instructions to replace the fans. Disconnect the fan cable. Take out the fan module from the chassis. Replace the failed fan module with a new one. Follow the procedures described earlier in reverse order to reinstall. http://www.tyan.com...

  • Page 72: Replacing The Power Supply

    The system has two pre-installed Power Supply Units. Please unplug the power cord before you follow these instructions to replace the power supply units. Press the latch to pull the power supply out. After replacing a new power supply, press the latch to push the power supply back into the chassis. http://www.tyan.com...

  • Page 73: Chapter 4: Mainboard Information

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 74: Board Image

    Board Image SP012 This picture is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above picture. http://www.tyan.com...

  • Page 75: Block Diagram

    Block Diagram SP012 Block Diagram http://www.tyan.com...

  • Page 76: Mainboard Mechanical Drawing

    Mainboard Mechanical Drawing http://www.tyan.com...

  • Page 77: Board Parts, Jumpers And Connectors

    The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual. For the latest board revision, please visit our web site at http://www.tyan.com. http://www.tyan.com...
  • Page 78 SMBUS Header (J18) h. Chassis Intrusion Pin Header (INTRUSION1) d. SMBUS Header (J41) i. CPU FSI Connector (J10) e. SMBUS Header (J42) Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover http://www.tyan.com...
  • Page 79 Use this header to connect the cooling fan to your motherboard to keep the system stable and reliable. SSI_FP1: Front Panel Connector Signal Signal PW_LED_P VCC3 ID_LED_P PW_LED_N ID_LED_N HDD_LED HW_FAULT- HDD_ACT_LED SYS_FAULT- PWR_BTN LAN1_ACT PHY_LED- RST_BTN SMB_DAT SMB_CLK IDLED_BTN INTRUDER- LAN2LED+ NMI_SW# http://www.tyan.com...
  • Page 80 FAN PWM2 FAN PWM1 FAN TACH11 SMBDATA FAN TACH12 SMBCLK V3P3_AUX FAN PWM3 V3P3_AUX FAN TACH13 FAN TACH15 FAN TACH14 FAN TACH16 FAN PWM4 FAN PWM5 USB3_2: USB3.0 Connector Signal Signal VCC1 P0_RX_N VCC1 P0_RX_P P0_TX_N P0_TX_P P0_N P0_P OC_N http://www.tyan.com...
  • Page 81 SMBUS-CLK RESET2 RESERED J8: APSS JTAG Connector Signal Signal TRST VCC3_AUX RTCK_R Rpu 4.7k Rpu 4.7k J16: BMC JTAG Connector Signal Signal TRST VCC3_AUX RTCK_R Rpu 4.7k Rpu 4.7k J10: CPU FSI Connector Signal Signal PV_FSI_P_S1CT_FSI_SMD Rpu 49.9 ohm http://www.tyan.com...
  • Page 82 I2C SDA I2C SCL J46: PSU SIGNAL Connector Signal Signal +12VSB +12VSB PS_ON ALERT PSU2_A0 PSU2_A1 SMART_ON RETURN 12VSL +12V PRESENT PWOK PS_KILL J13: TUSB7340 Debug Connector Signal Signal TUSB_VCC3 TRST J14/J18/J41: SMBUS Connector Signal Signal SMB CLK SMB DATA http://www.tyan.com...
  • Page 83 Pin 3-5, 4-6 closed: I2C to Debug BIOS_DEBUG1: SPI Debug Connector Signal Signal SPI_CS# V3P3 SPI_DO SPI_HOLD# SPI_WP# SPI_CLK SPI_DI BMC_DEBUG1/BMC_DEBUG2: BMC Debug Pin Header Signal Signal BMC_TXD5/ TXD_OUT/ BMC_RXD5 RXD_OUT BMC_TXD/ BMC_RXD Pin1-2 closed: Debug Mode (Default) Pin2-3 closed: Normal Mode http://www.tyan.com...

  • Page 84: Tips On Installing Motherboard In Chassis

    Be especially careful to look for extra stand-offs. If there are any stand-offs present that are not aligned with a mounting hole on the motherboard, it will likely short components on the back of the motherboard when installed. This will cause malfunction and/or damage to your motherboard. http://www.tyan.com...
  • Page 85 Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MITAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed. http://www.tyan.com...

  • Page 86: Memory

     8GB DR x8 with 4GB DRAM  16GB DR x4 with 4GB DRAM  32GB QR x4 with 4GB DRAM 32GB DIMMs in both slot0 and slot1 of any Centaur downstream of the processor socket forces DDR speed to 1066. DIMM Plug Rules http://www.tyan.com...
  • Page 87 DIMM Population Table http://www.tyan.com...

  • Page 88: Connecting External Devices

    10/100/1000 Mbps LAN Link/Activity LED Scheme Left LED Right LED Link Green 10 Mbps Active Blinking Green Solid Green Link Green 100 Mbps Solid Green Active Blinking Green Solid Yellow Link Green 1000 Mbps Solid Yellow Active Blinking Green No Link http://www.tyan.com...

  • Page 89: Installing The Power Supply

    +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN +12V_IN PSU1_SDA PSU1_A0 PSU1_SCL PSU1_A1 PSU1_PSON_N +12VSB PSU1_ALERT PSU1SMART_ON PSU1_RETURN_S PSU1_12VLS PSU1_12VS+ PSU1_PRESENT_N PSU1_PWOK PSU1_PS_KILL PWR4: 4-pin Power Connector Signal Signal +12V http://www.tyan.com...
  • Page 90 +12V_IN +12V_IN +12V_IN +12V_IN PWR5: Power Connector for GPU Signal Signal +12V_GPU +12V_GPU +12V_GPU +12V_GPU NOTE: You must unplug the power supply before plugging the power cables to motherboard connectors. Apply 5Vsb power supply with current support below 2A. http://www.tyan.com...

  • Page 91: Chapter 5: Petitboot Bootloader

    Function Left/Right Arrow Keys Move between characters Up/Down Arrow Keys Move between selections Enter Open highlighted section or accept the configuration Move to the next selection Tab + Shift Keys Move to the previous selection ESC/X Keys Exit http://www.tyan.com...

  • Page 92: Getting Help

    The following pages provide the details of Petitboot menu. Please be noticed that the Petitboot menu are continually changing due to the Processor NOR (PNOR) firmware updating. The Petitboot menu provided are the most updated ones when this manual is written. Please visit TYAN’s website at http://www.tyan.com for the information of PNOR firmware updating.

  • Page 93: Petitboot Main Menu

    In this section, from the top title of Petitboot main menu, it shows you the general information such as TYAN product name and PNOR firmware version. A help and status menu is displayed at the lower part of the Petitboot screen. Also, if Petitboot...
  • Page 94 Find new or updated boot options on the system, select the 'Rescan devices' option. Retrieve config from URL Retrieve new boot options from a remote configuration file, select the 'Retrieve config from URL' option. Exit to shell Close the Petitboot interface, type X (exit). http://www.tyan.com...

  • Page 95: Petitboot System Information

    Petitboot System Information This screen shows general information about the system type, ID and including the MAC addresses of each network interface for use when configuring boot behaviors. Petitboot System Information ───────────────────────────────────── System type: TN71-BP012 System id: 0000000000000000 Network interfaces eth0:...

  • Page 96: Petitboot System Configuration

    Any boot option that is marked as a default (by bootloader configuration) will be booted automatically after a timeout. Use this option if you want to quickly boot your system without changing any boot option settings. This is the typical configuration. http://www.tyan.com...

  • Page 97: Network Options

    Allows you to specify an IPv4 address and network mask, gateway and a DNS server or servers for a network interface. Select this option if you do not have a DHCP server, or want explicit control of network settings. DNS Server(s) Setup the DNS Server(s) IP address for your network interface. http://www.tyan.com...

  • Page 98: Petitboot Config Retrieval

    [ OK ] [ Help ] [ Cancel ] ───────────────────────────────────── tab=next, shift+tab=previous, x=exit, h=help Configuration URL: Supply a valid URL here to retrieve a remote pxe-boot config file and parse it. URLs are of the form 'scheme://host/path/to/pxeconffile', such as tftp://host/pxeconffile or http://host/pxeconffile http://www.tyan.com...

  • Page 99: Petitboot Shell

    If user selects the 'Exit to Shell' menu item, system will exit the Petitboot program and present the user with a Linux shell prompt. This shell is a busybox based system that includes many of the standard shell commands and Linux utilities. Exiting petitboot. Type 'exit' to return. http://www.tyan.com...
  • Page 100 NOTE http://www.tyan.com...

  • Page 101: Chapter 6: Diagnostics

    PNOR flash failure, you must contact your dealer for a replacement PNOR. There are no exceptions. TYAN does not have a policy for replacing PNOR chips directly with end users. In no event will TYAN be held responsible for damages done by the end user.

  • Page 102: Hostboot Ipls Progress Code

    Clean up MCS extent regs ISTEP 06.09 Setup centaur ref clocks ISTEP 06.10 Update SBE config data area ISTEP 06.11 Start the SBE engine on slave chips ISTEP 06.12 Check Slave SBE Complete ISTEP 06.13 vSBE Init of Slave Chips http://www.tyan.com...
  • Page 103 Cen TP Chiplet array init ISTEP 10.07 Cen TP Chiplet Start clocks ISTEP 10.08 Cen Chiplet Init ISTEP 10.09 Chiplet array init ISTEP 10.10 Cen DTS init ISTEP 10.11 Cen Scan overrides ISTEP 10.12 Manual Cen Scans ISTEP 10.13 Start Cen Nest http://www.tyan.com...
  • Page 104 ISTEP 13.09 DRAM training ISTEP 13.10 Advanced DRAM training ISTEP 13.11 Hand off control to MC ISTEP 13.12 Pass in all DIMMs on a given power domain IStep 14 – DRAM Initialization ISTEP 14.01 Load PRD for DRAM domain http://www.tyan.com...
  • Page 105 ISTEP 18.13 Create TOD topology ISTEP 18.14 Start TOD to running state IStep 21 - Start Payload ISTEP 21.01 Host runtime setup ISTEP 21.02 Host verify HDAT structures ISTEP 21.03 Start shutdown sequence of Hostboot and start the Payload http://www.tyan.com...
  • Page 106 NOTE http://www.tyan.com...

  • Page 107: Appendix I: Cable Connection Tables

    USB 3.0 board with cable USB3 2 3. System Fan connection System Fan to HDD/FAN Backplane board M1271T71-BP12-12 System Fan Connect to HDD/FAN BP Board → Fan1 FAN1 → Fan2 FAN2 → Fan3 FAN3 → Fan4 FAN4 → Fan5 FAN5 http://www.tyan.com...
  • Page 108 HDD/FAN Backplane board M1271T71-BP12-12 to SP012GMR/MB HDD/FAN BP Cable Connect to SP012GMR/MB Board FAN control → cable 6. HDD BP power cable HDD/FAN Backplane board M1271T71-BP12-12 to SP012GMR/MB HDD/FAN BP Cable Connect to SP012GMR/MB Board 2*6pin power → PWR3 cable http://www.tyan.com...

  • Page 109: Power Supply Cable

    8. Power supply cable PSU1 to SP012GMR/MB Connect to SP012GMR/MB → PSU 1 PWR1 PSU2 to M1619T71-D-PDB Connect to M1619T71-D-PDB → PSU 2 M1619T71-D-PDB to SP012GMR/MB Cable Connect to SP012GMR/MB → PSU control cable 2*12pin power → PWR2 PWR2 cable http://www.tyan.com...
  • Page 110 NOTE http://www.tyan.com...

  • Page 111: Appendix Ii: Fru Parts Installation

    Follow these instructions to replace the dual 3.5” HDD tray with the dual 2.5” hard drives and dual M.2 HDD tray Take off the CPU air duct. Disconnect the cables. Unscrew to remove the SATA Mezz card and disconnect the SATA cable. http://www.tyan.com...
  • Page 112 Connect 4 Mini SAS HD to SATA cables to the SATA Mezz Card. Reinstall the SATA Mezz card onto the chassis. Take off the dual 3.5” HDD tray. http://www.tyan.com...
  • Page 113 Insert the dual 2.5” HDD tray into the chassis and connect the Mini SAS HD and power cable to the HDD tray. Replace the air duct to complete the 2.5” HDD tray installation. http://www.tyan.com...
  • Page 114 Always install the HDD to the chassis after the chassis is secured on the rack. Push the latch to pull the HDD cage out. Place a 2.5" hard drive into the HDD cage and push the HDD in the direction as the arrow shows to secure the hard disk drive. http://www.tyan.com...
  • Page 115 Follow the same procedures to install the second 2.5” HDD. Turn the HDD cage over and secure the hard drives to the HDD cage with 8 screws. Reinsert the HDD cage into the chassis. http://www.tyan.com...
  • Page 116 Installing P3260 Follow these instructions to install the half-height, 12-port SATA HBA card P3260. Take out the P3260 HBA card kit. First unscrew the P3260 full-height dummy bracket. Replace the full-height dummy bracket with a half-height. http://www.tyan.com...
  • Page 117 Insert the P3260 HBA card into the expansion slot. Connect the Mini SAS HD cables to the P3260. Screw the P3260 to the chassis. http://www.tyan.com...
  • Page 118 NOTE http://www.tyan.com...

  • Page 119: Appendix Iii: Fru Parts Table

    Appendix III: FRU Parts Table TN71-BP012 FRU Parts Model Item Part Number Picture Description Number Power Supply FRU-PS-0090 471100000238 1200W PSU 15000RPM,80*80*38mm, 6PIN FAN Module FRU-TS-9130 5412T5340005 Heatsink & Cooler FRU-TH-0160 343T53400002 Heatsink PCBA： FRU-RC-0170 5411T5340017 MP012-B840-4T LAN Mezz Card MP012-B840-4T PCBA：...
  • Page 120 NOTE http://www.tyan.com...

  • Page 121: Appendix Iv: Set Bmc Ip Address

    IP is 192.168.88.49. Connect the server/laptop and Habanero Serial COM1 by RS232 to the USB converter, DB9 cable and DB9 to COM2 cable. Step 2. Start a PuTTY terminal emulator and fill in serial line and speed as COM7 and 115200, and then click Open to start connection. http://www.tyan.com...
  • Page 122 Step 3. Power on Habanero through the front power button. Step 4. Move arrow key to Exit to shell when Petitboot menu shows up. http://www.tyan.com...
  • Page 123 255.255.255.0 ; sleep 1 ; ipmitool lan set 1 defgw ipaddr 192.168.88.1 ; then check current BMC network settings by command ipmitool lan print 1, current network mode is static and its IP is 192.168.88.149, type exit to back Petitboot menu. http://www.tyan.com...
  • Page 124 http://www.tyan.com...

  • Page 125: Via Megarac To Set Bmc Ip

    Step 1. Assume BMC IP is 192.168.88.149 and Static mode. Open MEGARAC by a browser and key in https://192.168.88.149, then login as ADMIN and password is admin. Step 2. Here shows the network mode is Static and its IP is 192.168.88.149. http://www.tyan.com...
  • Page 126 Step 3. Click Network. Step 4. Check DHCP and then click Save. Step 5. Login MEGARAC again to make sure network mode is DHCP. Current network mode is DHCP and IP become DHCP IP 192.168.88.49. http://www.tyan.com...

  • Page 127: Appendix V: Technical Support

    MITAC serves multiple market segments with the industry’s most competitive services to support them. Please feel free to contact us directly for this service at tech-support@tyan.com Help Resources: 1. See the POST codes section of this manual.
  • Page 128 (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. TYAN® TN71-BP012 Service Engineer’s Manual V1.0h Document No.: D2316-100 http://www.tyan.com...

Table of Contents
