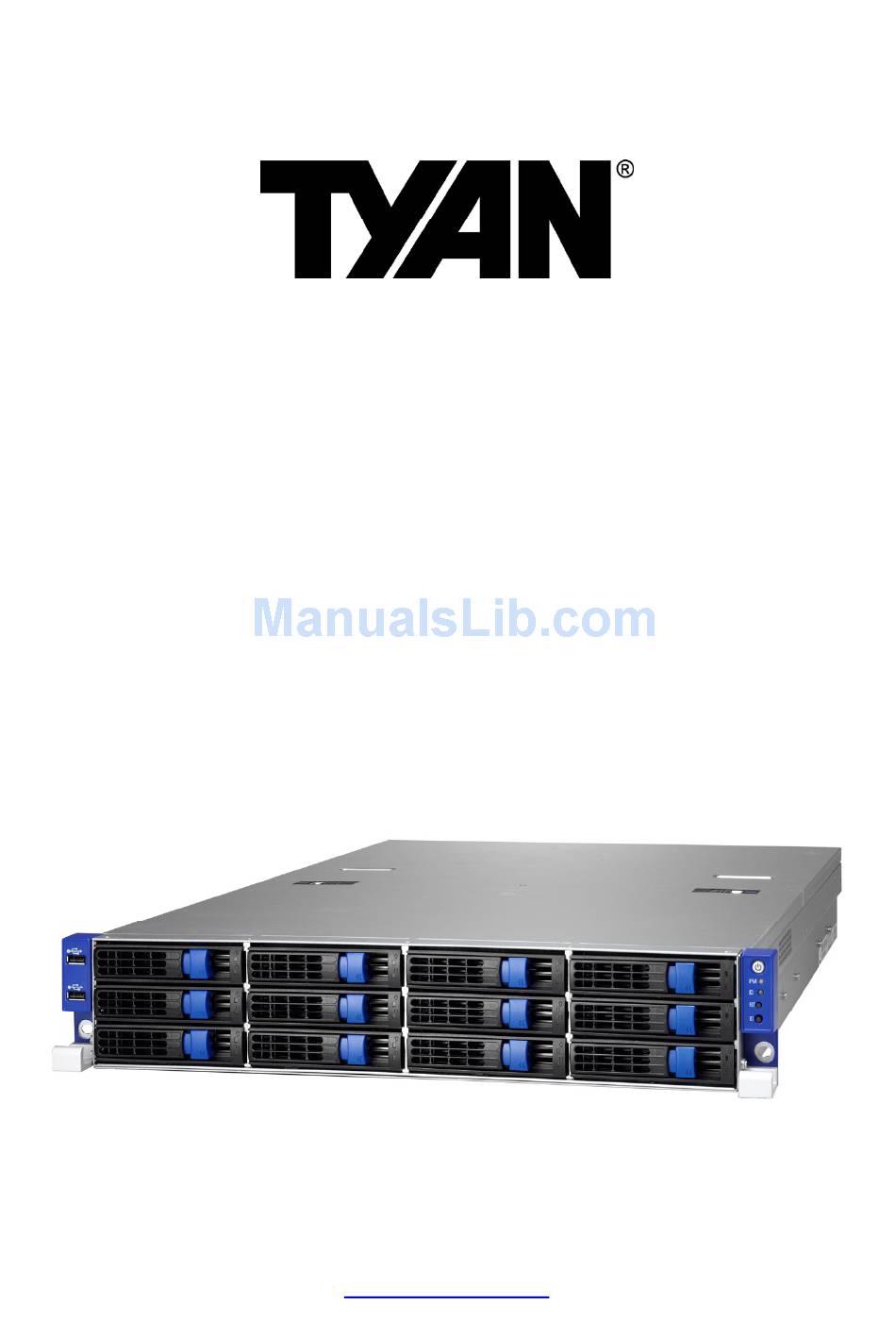

TN70-B7066
Service Engineer's Manual
1
http://www.tyan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TN70-B7066 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TYAN TN70-B7066

Summary of Contents for TYAN TN70-B7066

  • Page 1 TN70-B7066 Service Engineer’s Manual http://www.tyan.com...
  • Page 2 Corporation and has been reviewed for accuracy and reliability prior to printing. MiTAC assumes no liability whatsoever, and disclaims any ® express or implied warranty, relating to sale and/or use of TYAN products including liability or warranties relating to fitness for a particular purpose or merchantability.
  • Page 3 There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulations. http://www.tyan.com...

  • Page 4: About This Manual

    About this Manual This manual provides you with instructions on installing your TYAN TN70-B7066. This Manual is intended for experienced users and integrators with hardware knowledge of personal computers. This manual consists of the following parts: Chapter1: Overview Provides an introduction to the TYAN TN70-B7066 barebones, standard parts list, describes the external components, gives a table of key components, and provides block diagram of the system.

  • Page 5: Safety And Compliance Information

    Safety and Compliance Information Before installing and using TYAN TN70-B7066, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 6: Safety Information

    To reduce the risk of bodily injury, electric shock, fire and damage to the equipment, observe all precautions included in this guide. You must become familiar with the safety information in this guide before you install, operate, or service TYAN products. Symbols on Equipment Warning. This symbol indicates the presence of hazardous energy circuits or electric shock hazards.

  • Page 7: General Precautions

    · Do not attempt to move a fully loaded rack. Remove equipment from the rack before moving it. · Do not attempt to move a rack on an incline that is greater than 10 degrees from the horizontal. http://www.tyan.com...
  • Page 8 This will reduce the risk of personal injury, fire, or damage to the equipment. The total rack load should not exceed 80 percent of the branch circuit rating. Consult the electrical authority having jurisdiction over your facility wiring and installation requirements. http://www.tyan.com...
  • Page 9 · Dispose of used batteries according to the instructions of the manufacturer. Do not dispose of batteries with the general household waste. To forward them to recycling or proper disposal, use the public collection system or return them to TYAN, your authorized TYAN partner, or their agents. http://www.tyan.com...
  • Page 10 Equipment Modifications · Do not make mechanical modifications to the system. TYAN is not responsible for the regulatory compliance of TYAN equipment that has been modified. Equipment Repairs and Servicing · The installation of internal options and routine maintenance and service...

  • Page 11: Table Of Contents

    Table of Contents Chapter 1: Overview ............... 14  About the TYAN TN70-B7066 ..........14   Product Models ............... 14   Features .................. 15   Standard Parts List ..............19   1.4.1 Box Contents ..............19   1.4.2 Accessories ..............21  ...
  • Page 12 Replacing the HDD Backplane Board ........75   3.10.1 HDD BP Board Specifications ........76   3.10.2 HDD BP Board LED Definitions ........77   Appendix I: Cable Connection Tables .......... 79  Appendix II: FRU Parts Table ............81  http://www.tyan.com...
  • Page 13 Appendix III: Technical Support ............ 82  http://www.tyan.com...

  • Page 14: Chapter 1: Overview

    ® TYAN also offers the TN70-B7066 in a version that can support up to twelve 3.5”& 2.5” hot-swap hard drives and two internal 2.5” hard drives. TN70-B7066 ® uses TYAN ’s latest chassis featuring a robust structure and a solid mechanical...

  • Page 15: Features

    Features TYAN TN70-B7066 (B7066T70W12HR) 2U Rackmount Form Factor Gross Weight 27 kg Chassis Model TN70 System Dimension (D x W x 27.56" x 17.72" x 3.43" (700 x 450 x 87mm) Motherboard S7066WGM3NR EATX, 12"x13" (305x330mm) Board Dimension Buttons (1) RST / (1) ID / (1) PWR w/ LED...
  • Page 16 (4) PCI-E Gen3 x8 slot ( w/ x0 link or x8 link) / (2) PCI-E PCI-E Gen3 x16 slot ( w/ x16 link or x8 link) Expansion Slots Pre-install TYAN M7056-L24-3F / M7056-R24-3F Riser Card Port Q'ty (3) GbE ports (1 port shared with IPMI)
  • Page 17 Onboard Chipset IPMI 2.0 compliant baseboard management AST2300 IPMI Server controller (BMC) / Supports storage over IP and Feature Management remote platform-flash / USB 2.0 virtual hub 24-bit high quality video compression / 10/100 AST2300 iKVM Feature Mb/s MAC interface http://www.tyan.com...
  • Page 18 - 40° C ~ 70° C (-40° F ~ 158° F) Temp. Environment In/Non-operating 90%, non-condensing at 35° C Humidity RoHS 6/6 RoHS Compliant (1) TN70-B7066 Barebone Barebone Rail kit (1) sliding rail kit for YR290/TN70 Package Manual (1) Quick Installation Guide Contains (1) TYAN installation CD...

  • Page 19: Standard Parts List

    Standard Parts List This section describes TN70-B7066 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive packaged as illustrated below. 1.4.1 Box Contents Component Description 2U chassis,(12) hot swap HDD bays ®...
  • Page 20 M1701T70-FPB Front Panel Board (pre-installed) M7056-L24-3F riser card (pre-installed) M7056-R24-3F riser card (pre-installed) http://www.tyan.com...

  • Page 21: Accessories

    If any items are missing or appear damaged, contact your retailer or browse to ® TYAN ’s website for service: http://www.tyan.com ® The web site also provides information of other TYAN products, as well as FAQs, compatibility lists, BIOS settings, etc. ® 1 x TYAN Motherboard...

  • Page 22: About The Product

    Power On/OFF Button with Power On/Off LED IPMI LED ID LED RESET Button ID Button USB Ports 0~11 3.5” HDD trays sequence NOTE: Refer to Section 3.6.2 FPB LED and Connector Pin Definition (page 66) for details on Power On/Off, IPMI and ID LED Definitions. http://www.tyan.com...

  • Page 23: System Rear View

    1.5.2 System Rear View 770W Power Supply LAN3 (shared with IPMI) + 2 USB COM Port + VGA Port ID Button LAN1+LAN2 Blue ID LED PCI-E Slots http://www.tyan.com...

  • Page 24: Lan And Id Led Definitions

    Power LED on the front panel and the blue ID LED on the rear panel will light up. The technical personnel can easily locate the system on the rack, disconnect cables from the system, and remove it from the rack for later repair. State Color Description Blue System identified ID LED System not identified http://www.tyan.com...

  • Page 25: Motherboard (S7066) Layout

    The diagram is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above ® diagram. More motherboard information please refers to the TYAN S7066 motherboard manual. http://www.tyan.com...

  • Page 26: Jumpers & Connectors

    LSI IMR KEY (Optional) IDLED_BTN ID LED Button ID_LED ID LED SATA0/SATA1 Serial ATA Connector J19/J20/J64/J65/J66 4-pin Fan Power Connector J45/J63 4-pin CPU1/CPU0 Fan Power Connector Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover http://www.tyan.com...

  • Page 27: System Block Diagram

    1.5.6 System Block Diagram http://www.tyan.com...

  • Page 28: Internal View

    1.5.7 Internal View 3.5” HDD cage SAS/SATA HDD Backplane Board System Fan Unit Power Distribution Board PCI-E Riser Card Assembly 2.5” HDD tray Power Supply http://www.tyan.com...
  • Page 29 NOTE http://www.tyan.com...

  • Page 30: Chapter 2: Setting Up

    A grounding strap or an anti-static pad Most of the electrical and mechanical connections can be disconnected with your hands. It is recommended that you do not use pliers to remove connectors as it may damage the soft metal or plastic parts of the connectors. http://www.tyan.com...

  • Page 31: Precautions

    Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to TN70-B7066 or injury to yourself. Ground yourself properly before removing the top cover of the system.

  • Page 32: Installing Motherboard Components

    2.1.1 Removing the Chassis Cover Follow these instructions to remove the TN70-B7066 chassis cover. 1 Unscrew the rear top cover on the back side. 2 Unscrew the front top cover and pull the latches aside to lift up the top cover.
  • Page 33 3 Slide the rear top cover out. http://www.tyan.com...

  • Page 34: Removing The Riser Card Assembly

    Removing the Riser Card Assembly Follow these instructions to remove the PCI-E Riser Card Assembly and air duct. 1. Unscrew to release the PCI-E Riser Card Assembly. Note that you need to release two screws for each Assembly (RISER-1 and RISER-2). http://www.tyan.com...

  • Page 35: Installing The Cpu And Heatsink

    2.1.3 Installing the CPU and Heatsink Follow the steps below on installing CPUs and CPU heatsinks. 1. Remove the CPU protective cap. 2. Unlock the socket lever. 3. Unlock the other side of the socket levers. http://www.tyan.com...
  • Page 36 4. Open the CPU socket cover. 5. Install the processor and make sure the golden arrow is located in the right direction. 6. Close the CPU socket cover. 7. Close the CPU socket lever. http://www.tyan.com...
  • Page 37 8. Close the other side of the CPU socket lever. 9. Install the CPU heatsink. 10. Secure the heatsink screws. http://www.tyan.com...

  • Page 38: Installing The Memory

    1. Unlock the memory slot clips in the direction of the arrows as shown in the following illustration. 2. Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. 3. Lock the memory module clips. http://www.tyan.com...
  • Page 39 Memory Population Option Table The following pictures show common types of DDR3 memory modules. http://www.tyan.com...
  • Page 40 DIMM per channel. 6. Always install with DIMM_A0 Slot first, following the alphabetical order (starting with DIMM_A0, DIMM_B0, DIMM_C0, DIMM_D0), and then the numerical order (starting with DIMM_A1, DIMM_B1, DIMM_C1, DIMM_D1, DIMM_A2, DIMM_B2, DIMM_C2, DIMM_D2). http://www.tyan.com...
  • Page 41 DIMM per channel. 6. Always install with DIMM_A0 Slot first, following the alphabetical order (starting with DIMM_A0, DIMM_B0, DIMM_C0, DIMM_D0), and then the numerical order (starting with DIMM_A1, DIMM_B1, DIMM_C1, DIMM_D1, DIMM_A2, DIMM_B2, DIMM_C2, DIMM_D2). http://www.tyan.com...
  • Page 42 Physical Ranks are used to calculate DIMM Capacity. Supported and validated DRAM Densities are 2Gb and 4Gb. Command Address Timing is 1N. The speeds are estimated targets and will be verified through simulation. DDP -Dual Die Package DRAM stacking. P –Planer monolithic DRAM Die. http://www.tyan.com...
  • Page 43 QR RDIMM are supported but have not been validated by Intel/PMO in a homogenous environment. The coverage will have limited system level testing, no signal integrity testing, and no interoperability testing. All quad rank DIMMs that pass internal validation testing will be posted on http://www.tyan.com. http://www.tyan.com...

  • Page 44: Installing 3.5" Hard Drives

    2.1.5 Installing 3.5” Hard Drives The TN70-B7066 can support up to twelve (12) 3.5” and two (2) 2.5” hard drives. Follow these instructions to install a hard drive. 1 Press the locking lever latch. 2 Pull the locking lever open.
  • Page 45 5 Place the 3.5” hard disk drive into the HDD tray and secure the HDD to the HDD tray using 4 screws. 6 Reinsert the HDD tray into the chassis and press the locking lever to secure the tray. http://www.tyan.com...

  • Page 46: Installing 2.5" Hard Drives

    2.1.6 Installing 2.5” Hard Drives The TN70-B7066 can support up to twelve (12) 3.5” and two (2) 2.5” hard drives. Follow these instructions to install a hard drive. 1 Press the locking lever latch. 2 Pull the locking lever open.
  • Page 47 4 screws. 5 Reinsert the HDD tray into the chassis and press the locking lever to secure the tray. 6 Reinsert the HDD tray into the chassis and press the locking lever to secure the tray. http://www.tyan.com...
  • Page 48 2 Insert the 2.5” hard drives into the bracket and secure them with eight screws. Connect the SATA signal cables and the HDD power cables. 3 Position the HDD bracket in its original place. Screw it firmly to the chassis. http://www.tyan.com...

  • Page 49: Installing The Pci-E Cards

    2.1.7 Installing the PCI-E Cards The TN70-B7066 supports PCI-E Riser Card assemblies (RISER-1 and RISER-2). Follow these instructions to install PCI-E cards. 1 Unscrew the PCI-E slots to take out the I/O shields. 2 Insert the PCI-E cards as shown.

  • Page 50: Rack Mounting

    Follow these instructions to mount the TYAN TN70-B7066 into an industry standard 19" rack. NOTE: Before mounting the TYAN TN70-B7066 in a rack, ensure that all internal components have been installed and that the unit has been fully tested. Screws List...

  • Page 51: Installing The Inner Rails To The Chassis

    2.2.2 Installing the inner Rails to the Chassis 1. Press the button to pull out the inner rail from the outer rail of the TN70-B7066 sliding rails. 2. Align the inner sliding rail (1) on the side of the server, and pull towards the arrow (2) to secure the six hooks.

  • Page 52: Installing The Outer Rails To The Rack

    (2 in the front and 2 in the rear). 2.2.4 Rack mounting the Server Lift the unit and then insert the inner slide rails into the middle rails. Press the button to push the whole system into the rack. http://www.tyan.com...
  • Page 53 2. Push the whole system into the rack. 3. Secure the whole system with 2 (B) screws. NOTE: To avoid injury, it is strongly recommended that two people lift the TYAN TN70-B7066 into the place while a third person screws it to the rack. http://www.tyan.com...
  • Page 54 NOTE http://www.tyan.com...

  • Page 55: Chapter 3: Replacing Pre-Installed Components

    This chapter explains how to replace the pre-installed components, including the Motherboard, M1701T70-FPB Front Panel Board, M1239T70-BP6-12 SATA/SAS HDD Backplane Board, M7056-L24-3F & M7056-L24-3F PCI-E Riser card, System fan, Power supply unit etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure. http://www.tyan.com...

  • Page 56: Removing The Cover

    Follow these instructions to replace motherboard components, including the motherboard. 3.4.1 Replacing PCI-E Riser Cards The TN70-B7066 has two pre-installed PCI-E×16 riser cards. Follow the instructions below to disassemble the M7056-L24-3F and M7056-R24-3F PCI-E riser cards. 1 Unscrew to take out the PCI-E cards.
  • Page 57 3 Repeat the same procedures for the second Riser Card Assembly. 4 Unscrew the M7056-L24-3F riser card to replace a new one if necessary. http://www.tyan.com...

  • Page 58: Pci-E Riser Cards Specification

    3.4.2 PCI-E Riser Cards Specification M7056-L24-3F riser card M7056-L24-3F riser card http://www.tyan.com...
  • Page 59 Connect to Motherboard http://www.tyan.com...

  • Page 60: Disconnecting All Motherboard Cables

    Before replacing the motherboard or certain components, remove cables connected to the motherboard. Follow these instructions to remove all cables. 1 Disconnect power and PSMI cables. 2 Disconnect Mini SAS cable, USB cable and front panel cable. 3 Disconnect power cable. http://www.tyan.com...

  • Page 61: Removing The Motherboard

    After removing all of the aforementioned cables, follow the instructions below to remove the motherboard from the chassis. 1 Remove the heatsinks and processors if installed. 2 Remove the nine screws securing the motherboard to the chassis. 3 Carefully lift the motherboard from the chassis. http://www.tyan.com...

  • Page 62: Replacing The Power Distribution Board

    Replacing the Power Distribution Board Follow these instructions to replace the M1601T70-D-PDB power distribution board. 1 Disconnect all the cables. 2 Unscrew to replace a new power distribution board. http://www.tyan.com...

  • Page 63: Replacing The Front Panel Board

    Replacing the Front Panel Board Follow these instructions to replace the M1701T70-FP Front Panel Board. 1 Unscrew to release the Front Panel Board cover. 2 Remove the Front Panel Board cover. http://www.tyan.com...
  • Page 64 3 Unscrew the Front Panel Board to replace a new one. 4 Disconnect the Front Panel Board to replace a new one. 5 Follow the steps described earlier in reverse to reinstall the Front Panel Board. http://www.tyan.com...

  • Page 65: Front Panel Board Specifications

    HDD backplane board Power On/Off LED Color: Green (after power on) ID LED Color: Blue LEDs Warning (IPMI) LED Dual Color: Yellow (Warning) / Green(Normal) RESET button Push buttons ID button Power On/Off button with Power On/Off LED http://www.tyan.com...

  • Page 66: Fpb Led And Connector Pin Definition

    Chassis ID LED Locate LED key.* System not identified J1: FPIO connector Definition Definition PW_LED+ +5VSB ID_LED+ PW_LED- ID_LED- HD_LED+ LED_FAULT1- HD_LED- LED_FAULT2- PWR_SW+ LAN_ACT PWR_SW- LAN_LINK# RESET+ SMB_DAT RESET- SMB_CLK ID_SW- Temp_sensor SMB_ALR FPB_HDD_ACTIVITY_G- SMB_CLK FPB_HDD_FAULT_R- SMB_DAT http://www.tyan.com...

  • Page 67: Replacing The Usb Board

    Replacing the USB Board Follow these instructions to replace the M1702T70-USB USB Board. 1 Unscrew to release the USB front cover. 2 Remove the USB front cover. http://www.tyan.com...
  • Page 68 3 Unscrew the USB Board. 4 Disconnect the USB Board to replace a new one. 5 Follow the steps described earlier in reverse to reinstall the USB Board. http://www.tyan.com...

  • Page 69: Usb Board Specifications

    USB Board Connector Pin Definition J2: 2x5-pin Connector for FP Connector of Motherboard Definition Description Definition Description VCC_USB USB power VCC_USB USB power USB_P0_N Port1(J1) USB- USB_P1_N Port2(J3) USB- USB_P0_P Port1(J1) USB+ USB_P1_P Port2(J3) USB+ GND1 Ground GND2 Ground No connect http://www.tyan.com...

  • Page 70: Replacing The System Fan

    Follow these instructions to replace the system fan. 1 Press the latch in the direction as shown to lift up the fan in an iron holder. 2 Take out the fan unit. 3 Loose the screws on both sides. http://www.tyan.com...
  • Page 71 4 Push the latch in the direction as the arrow shown to release the fan from the iron holder. 5 Remove the iron holder to replace a new fan. 6 After replacing a new one, put the fan unit back into the cage. http://www.tyan.com...

  • Page 72: Replacing The Fan Backplane Board

    Follow these instructions to replace the Fan Backplane Board in your system. 1 Disconnect the cables attached to the Fan Backplane Board. 2 Use a screw drive to unscrew the fan cage and lift it up from the chassis. http://www.tyan.com...
  • Page 73 3 Release the 14 screws on the Fan Backplane Board to replace a new one. 4 Follow the steps described in reverse order to reinstall the fan cage. http://www.tyan.com...

  • Page 74: Fan Bp Board Specifications

    254 mm x 82 mm, 4-layer PCB (2) 1x4pin R/A Power Connector (8) 2x2pin Fan Connectors Integrated I/O (1) 2 x10pin Barebone Fan Connector (1) 2x2pin Connector for S7015 3.9.2 Fan BP Board LED Definitions FAN Status Green LED Red LED With Fan Without Fan http://www.tyan.com...

  • Page 75: Replacing The Hdd Backplane Board

    1 Disconnect all cables attached to the HDD BP Board. 2 Unscrew the HDD BP Board. Remove the HDD BP Board from the hook. 3 Replace a new HDD BP Board and reinstall it into the chassis following the steps in reverse. http://www.tyan.com...

  • Page 76: Hdd Bp Board Specifications

    Front View Rear View Form Factor 81.8 x 436 mm, 4-layer PCB 12 SAS HDD Connectors Integrated I/O 3 Mini SAS Connectors to MB 1 2 x 4-pin Power Connector 12 HDD active LEDs LEDs 12 HDD fault LEDs http://www.tyan.com...

  • Page 77: Hdd Bp Board Led Definitions

    Activity LED HDD Status  Color: Amber  Color: Green  No Driver Present or power disconnected  OFF  OFF  No Activity  OFF  Solid On  Driver Present  With Activity  OFF  Blinking  HDD Fail  Solid On  OFF  Drive Identify   Blinking(1Hz)  x  Drive Rebuild  Blinking(4Hz)  http://www.tyan.com...

  • Page 78: Replacing The Power Supply

    3.11 Replacing the Power Supply Press and hold the latch to pull the power supply out. After replacing a new power supply, press and hold the latch to push the power supply back into the chassis. http://www.tyan.com...

  • Page 79: Appendix I: Cable Connection Tables

    M1806G70-FB Front Panel Control Cable Front Panel Board Connects to Motherboard M1701T70-FPB USB Cable USB Board Connects to Motherboard M1702T70-USB Power Cables Power Board Connects to Motherboard M1601T70-D-PDB PW1 (MB) PWR1 PATX1 (MB1) PWR2 PATX2 (MB2) PWR3 J7 (PSMI) http://www.tyan.com...
  • Page 80 Internal 2.5” HDD Cables Power Board Connects to Internal 2.5” HDD M1601T70-D-PDB J4 (Riser1) 2.5” HDD Power Connector J5 (Riser2) 2.5” HDD Power Connector Motherboard Connects to Internal 2.5” HDD SATA 0 2.5” HDD SATA Connector SATA 1 2.5” HDD SATA Connector http://www.tyan.com...

  • Page 81: Appendix Ii: Fru Parts Table

    12000RPM,60*60*38MM,4PIN fan Heatsink & Cooler FRU-TH-0100 343T45700002 Heatsink M7056-L24-3F 5411T4390015 M7056-L24-3F Riser Card PCBA M7056-R24-3F 5411T4390016 M7056-R24-3F Riser Card Rack Mounting Parts CRAL-0170 340786900010 Slide Rail Kit FRU-CS-0130 422T50800001 Mini-sas cable w/ sideband,800mm Cable CCBL-0689 422797800004 Mini-sas cable, 500mm http://www.tyan.com...
  • Page 82 MiTAC serves multiple market segments with the industry’s most competitive services to support them. Please feel free to contact us directly for this service at tech-support@tyan.com Help Resources: 1. See the beep codes section of this manual.
  • Page 83 -mber. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. ® TYAN TN70-B7066 Service Engineer’s Manual V1.0a D2253 - 100 Document No.:...
