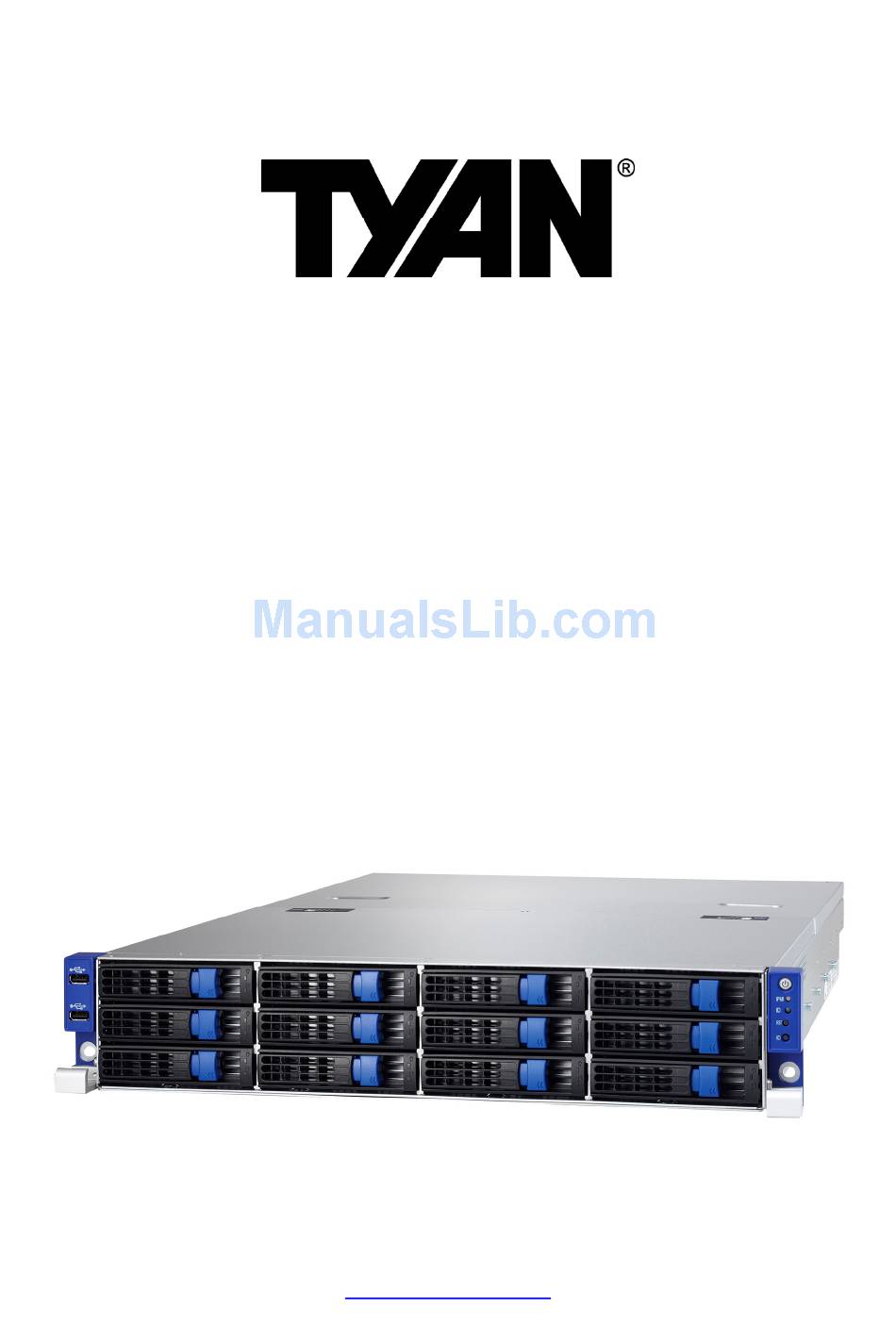

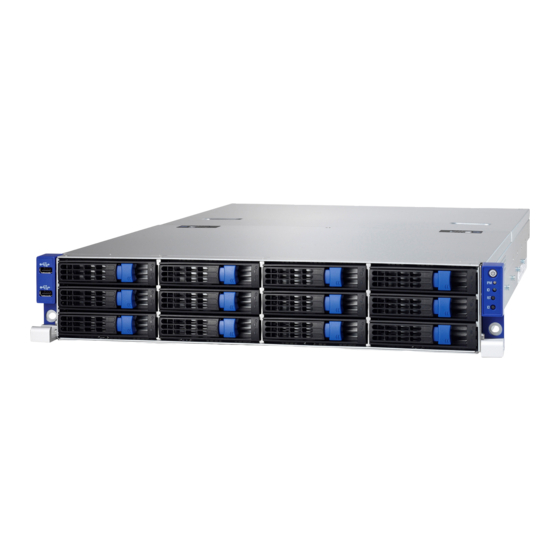

TN70-B7016
Service Engineer's Manual
1
http://www.tyan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TN70-B7016 and is the answer not in the manual?

Questions and answers

Related Manuals for TYAN TN70-B7016

Summary of Contents for TYAN TN70-B7016

  • Page 1 TN70-B7016 Service Engineer’s Manual http://www.tyan.com...
  • Page 2 http://www.tyan.com...
  • Page 3 Corporation and has been reviewed for accuracy and reliability prior to printing. MiTAC assumes no liability whatsoever, and disclaims any ® express or implied warranty, relating to sale and/or use of TYAN products including liability or warranties relating to fitness for a particular purpose or merchantability.
  • Page 4 There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulations. http://www.tyan.com...

  • Page 5: About This Manual

    About this Manual This manual provides you with instructions on installing your TYAN TN70-B7016. This Manual is intended for experienced users and integrators with hardware knowledge of personal computers. This manual consists of the following parts: Chapter1: Provides an introduction to the TYAN TN70-B7016...

  • Page 6: Safety And Compliance Information

    Safety and Compliance Information Before installing and using TYAN TN70-B7016, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 7: Safety Information

    To reduce the risk of bodily injury, electric shock, fire and damage to the equipment, observe all precautions included in this guide. You must become familiar with the safety information in this guide before you install, operate, or service TYAN products. Symbols on Equipment Caution. This symbol indicates a potential hazard.
  • Page 8 · Make sure racks are coupled together if it is a multiple-rack installation. · Make sure the rack is level and stable before installing an appliance in the rack. · Make sure the leveling jacks are extended to the floor. http://www.tyan.com...
  • Page 9 · Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times. · In all European electrical environments, you must ground the Green/Yellow tab on the power cord. If you do not ground the http://www.tyan.com...
  • Page 10 TYAN, your authorized TYAN partner, or their agents. Equipment Modifications · Do not make mechanical modifications to the system. TYAN is not responsible for the regulatory compliance of TYAN equipment that has been modified.
  • Page 11 – Liquid has been spilled on the product or an object has fallen into the product. – The product has been exposed to rain or water. – The product has been dropped or damaged. – The product does not operate normally when you follow the operating instructions. http://www.tyan.com...
  • Page 12 http://www.tyan.com...

  • Page 13: Table Of Contents

    Table of Contents Chapter 1: Overview ............... 15 About the TYAN TN70-B7016 ..........15 Product Models............... 15 Features ................16 Standard Parts List ..............20 1.4.1 Box Contents ..............20 1.4.2 Accessories ..............22 About the Product ..............23 1.5.1 System Front View............
  • Page 14 Fan BP Board LED Definitions ........71 3.10 Replacing the HDD Backplane Board ........72 3.10.1 HDD BP Board Specifications ........73 3.10.2 HDD BP Board LED Definitions........74 Appendix I: Cable Connection Tables .......... 77 Appendix II: Technical Support............. 79 http://www.tyan.com...

  • Page 15: Chapter 1: Overview

    ® TYAN also offers the TN70-B7016 in a version that can support up to twelve 3.5” hot-swap hard drives and two internal 2.5” hard drives. TN70-B7016 uses ® TYAN ’s latest chassis featuring a robust structure and a solid mechanical...

  • Page 16: Features

    Features TYAN TN70B7016 (B7016T70-077W12HR) 2U Rackmount Form Factor Chassis Model TN70 Dimension (D x W x 27.56" x 17.72" x 3.43" (700 x 450 x 87mm) System Motherboard S7016WGM3NR-T70-B EATX, 12"x13" (305x330mm) Board Dimension 27 kg Gross Weight Buttons (1) PWR / (1) RST / (1) ID...
  • Page 17 / (2) PCI-E Gen. 2 x8 slots(w/ x4 signal) Expansion M2206-L16-2F(left), (2) PCI-E Gen. 2 x8 open Slots Pre-install TYAN frame slots 2U riser card (w/ x8 signal) / Riser Card M2205-R8-2F(right), (2) PCI-E Gen. 2 x8 slots 2U...
  • Page 18 Pilot2 IPMI Feature Management Hardware-based security engine for SSL acceleration Highest resolution secured KVM over IP / Dual ServerEngines 10/100 Mb/s MAC interfaces Pilot2 iKVM Feature Brand / ROM size AMI / 4MB BIOS Feature Plug and Play (PnP) /PCI2.3 /WfM2.0 http://www.tyan.com...
  • Page 19 - 40° C ~ 70° C (-40° F ~ 158° F) Temp. Environment In/Non-operating 90%, non-condensing at 35° C Humidity RoHS 6/6 RoHS Complaint Barebone (1) TN70-B7016 Barebone (2) LGA1366 CPU heatsinks Heatsink / Cooler Package Contains (1) sliding rail kit for YR290/TN70 Rail kit Accessory (1) accessory kit http://www.tyan.com...

  • Page 20: Standard Parts List

    Standard Parts List This section describes TN70-B7016 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive packaged as illustrated below. 1.4.1 Box Contents Component Description 2U chassis,(12) hot swap HDD bays ®...
  • Page 21 M2206-L16-2F riser card (pre-installed) M2205-R8-2F riser card (pre-installed) http://www.tyan.com...

  • Page 22: Accessories

    If any items are missing or appear damaged, contact your retailer or browse to ® TYAN ’s website for service: http://www.tyan.com ® The web site also provides information of other TYAN products, as well as FAQs, compatibility lists, BIOS settings, etc. ® 2 x Heatsinks 1 x TYAN...

  • Page 23: About The Product

    3.5” HDD bays Power On/OFF Button with Power On/Off LED IPMI LED ID LED RESET Button ID Button NOTE: Refer to Section 3.6.2 FPB LED and Connector Pin Definition (page 63) for details on Power On/Off, IPMI and ID LED Definitions. http://www.tyan.com...

  • Page 24: System Rear View

    LAN LED: The three onboard Ethernet ports have green and amber LEDs to indicate LAN status. The table below illustrates the different LED states. http://www.tyan.com...
  • Page 25 Left: slow blinking green 100 Mbps Link Right: green Left: blinking green 100 Mbps Activity Right: green Left: slow blinking green 1000 Mbps Link Right: amber Left: blinking green 1000 Mbps Activity Right: amber Left: Off No Link Right: Off http://www.tyan.com...

  • Page 26: Motherboard (S7016) Layout

    1.5.3 Motherboard (S7016) Layout The diagram is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above diagram. http://www.tyan.com...

  • Page 27: Jumpers & Connectors

    BMC Enable/Disable Jumper BMC Update Jumper Flash Manageability Engine (ME) Jumper Clear CMOS Jumper JP2/JP3 COM2 Switch Jumper BMC Flash Jumper PCI-E x8/x16 select Jumper Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover http://www.tyan.com...

  • Page 28: System Block Diagram

    1.5.5 System Block Diagram http://www.tyan.com...

  • Page 29: Internal View

    1.5.6 Internal View 3.5” HDD cage SAS/SATA HDD Backplane Board System Fan Unit Power Distribution Board PCI-E Riser Card Assembly Power Supply http://www.tyan.com...
  • Page 30 NOTE http://www.tyan.com...

  • Page 31: Chapter 2: Setting Up

     A grounding strap or an anti-static pad Most of the electrical and mechanical connections can be disconnected with your hands. It is recommended that you do not use pliers to remove connectors as it may damage the soft metal or plastic parts of the connectors. http://www.tyan.com...

  • Page 32: Precautions

    Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to TN70-B7016 or injury to yourself.  Ground yourself properly before removing the top cover of the system.

  • Page 33: Installing Motherboard Components

    CPUs, memory modules, HDD and PCI-E cards. 2.1.1 Removing the Chassis Cover Follow these instructions to remove the TN70-B7016 chassis cover. Unscrew the rear top cover on the back side. Unscrew the front top cover and pull the latches aside to lift up the top cover.
  • Page 34 Slide the rear top cover out. http://www.tyan.com...

  • Page 35: Removing The Riser Card Assembly And Air Duct

    Follow these instructions to remove the PCI-E Riser Card Assembly and air duct. Unscrew to release the PCI-E Riser Card Assembly. Note that you need to release two screws for each Assembly (RISER-1 and RISER-2). Lift up the air duct. http://www.tyan.com...

  • Page 36: Installing The Cpu And Heatsink

    Follow the steps below on installing CPUs and CPU heatsinks. 1. Locate the CPU socket. 2. Press the lever and unlock the CPU socket. 3. Lift the CPU protection cap up and lay the CPU into the socket(A), ensuring pin1 is correctly located(B); http://www.tyan.com...
  • Page 37 4. Close the socket cover and press the CPU lever down to secure the CPU; 5. Place the heatsink on top of the CPU and secure it with 8 screws. http://www.tyan.com...

  • Page 38: Installing The Memory

    Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. http://www.tyan.com...
  • Page 39 Memory Population Option Table The following pictures show common types of DDR3 memory modules. http://www.tyan.com...
  • Page 40 DIMM D0, D1 & D2 Channel A DIMM A0, A1 & A2 Channel E DIMM E0, E1 & E2 Channel B DIMM B0, B1 & B2 Channel F DIMM F0, F1 & F2 Channel C DIMM C0, C1 & C2 http://www.tyan.com...
  • Page 41 The following table outlines the suggested rules for populating memory. For 3 slots per channel RDIMM DIMM2 DIMM1 DIMM0 Single Rank Dual Rank Quad Rank UDIMM DIMM2 DIMM1 DIMM0 Single Rank Dual Rank DIMM with heat spreader DIMM2 DIMM1 DIMM0 http://www.tyan.com...

  • Page 42: Installing Hard Drives

    2.1.4 Installing Hard Drives The TN70-B7016 can support up to twelve (12) 3.5” and two (2) 2.5” hard drives. Follow these instructions to install a hard drive. Press the locking lever latch and pull the locking lever open. Slide the HDD tray out.
  • Page 43 Place a hard drive into the drive tray. Use 6 HDD screws to secure the HDD. Reinsert the HDD tray into the chassis and press the locking lever to secure the tray. http://www.tyan.com...
  • Page 44 Unscrew the supplementary 2.5” HDD bracket. Insert the 2.5” hard drives into the bracket and secure them with eight screws. Connect the SATA signal cables and the HDD power cables. Position the HDD bracket in its original place. Screw it firmly to the chassis. http://www.tyan.com...

  • Page 45: Installing The Pci-E Cards

    2.1.5 Installing the PCI-E Cards The TN70-B7016 supports two PCI-E Riser Card assemblies (RISER-1 and RISER-2). Follow these instructions to install PCI-E cards. Unscrew the PCI-E slots to take out the I/O shields. Insert the PCI-E cards as shown. Repeat the same procedures for the second Riser Card Assembly.

  • Page 46: Rack Mounting

    Screw packet in accessory kit 2.2.1 Installing the Server in a Rack NOTE: Before mounting the TYAN TN70-B7016 in a rack, ensure that all internal components have been installed and that the unit has been fully tested. Screw Kit List Screw...

  • Page 47: Installing The Inner Rails To The Chassis

    Follow these instructions to install the inner rails to the chassis. Take out the rails and identify the front and rear end of the single rail. Slide the inner rail forward. Push and hold the locking tab to draw out the inner rail from the rail assembly. http://www.tyan.com...
  • Page 48 Install the inner rail to the chassis. Push the inner rail forwards to lock the rail in place. http://www.tyan.com...
  • Page 49 Before After Repeat the same procedures for the other side. The installation of the inner rail is now complete. http://www.tyan.com...

  • Page 50: Installing The Outer Rails To The Rack

    Installing the Outer Rails to the Rack NOTE: Before mounting the TYAN TN70-B7016 in a rack, ensure that all internal components have been installed and that the unit has been fully tested. However, to make the installation easier, we suggest that you remove all HDD trays before you insert the chassis to the rack.
  • Page 51 Align the chassis with inner rails with the outer rails. Slide the chassis back into the rack. Screw the chassis to the rack using 2pcs screw B (M5L10). The installation is now complete. http://www.tyan.com...

  • Page 52: Removing The Server From A Rack

    2.2.4 Removing the Server from a Rack Follow these instructions to remove the TYAN TN70-B7016 from an industry standard 19” rack. Unscrew the chassis from the rack. Slide the chassis forwards. Push and hold the locking tab on both sides while sliding the chassis out from the rack.

  • Page 53: Chapter 3: Replacing Pre-Installed Components

    This chapter explains how to replace the pre-installed components, including the Motherboard, M1008 LED control board, M1232 HDD board, PCI-E Riser card, System fan, ODD drive, Power supply unit etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure. http://www.tyan.com...
  • Page 54 http://www.tyan.com...

  • Page 55: Removing The Cover

    Follow these instructions to replace motherboard components, including the motherboard. 3.4.1 Replacing PCI-E Riser Cards The TN70-B7016 has two pre-installed PCI-E×16 riser cards. Follow the instructions below to disassemble the M2206-L16-2F and M2205-R8-2F PCI-E riser cards. Unscrew to take out the PCI-E cards.
  • Page 56 Repeat the same procedures for the second Riser Card Assembly. Unscrew the M2206-L16-2F riser card to replace a new one if necessary. 、 http://www.tyan.com...

  • Page 57: Disconnecting All Motherboard Cables

    Disconnecting All Motherboard Cables Before replacing the motherboard or certain components, remove cables connected to the motherboard. Follow these instructions to remove all cables. Disconnect power and PSMI cables. Disconnect Mini SAS cable, USB cable and front panel cable. Disconnect fan cables. http://www.tyan.com...

  • Page 58: Removing The Motherboard

    After removing all of the aforementioned cables, follow the instructions below to remove the motherboard from the chassis. Remove the heatsinks and processors if installed. Remove the nine screws securing the motherboard to the chassis. Carefully lift the motherboard from the chassis. http://www.tyan.com...

  • Page 59: Replacing The Power Distribution Board

    Replacing the Power Distribution Board Follow these instructions to replace the M1601T70-D-PDB power distribution board. Disconnect all cables. Unscrew to replace a new power distribution board. http://www.tyan.com...

  • Page 60: Replacing The Front Panel Board

    Replacing the Front Panel Board Follow these instructions to replace the M1701T70-FP Front Panel Board. Unscrew to release the Front Panel Board cover. Remove the Front Panel Board cover. http://www.tyan.com...
  • Page 61 Unscrew the Front Panel Board. Disconnect the Front Panel Board to replace a new one. Follow the steps described earlier in reverse to reinstall the Front Panel Board. http://www.tyan.com...

  • Page 62: Front Panel Board Specifications

    Warning (IPMI) LED Dual Color: Yellow (Warning) / Green(Normal)  RESET button  Push buttons ID button  Power On/Off button with Power On/Off LED M1701T70 Front Panel Board (FPB) to S7016 M1701T70 Connect to S7016 Control Cable  http://www.tyan.com...

  • Page 63: Fpb Led And Connector Pin Definition

    *: For more information on the Chassis Locate LED, please visit our Web site for the latest Pilot II Software Configuration Guide. J1: FPIO connector Definition Definition PW_LED+ +5VSB ID_LED+ PW_LED- ID_LED- HD_LED+ LED_FAULT1- HD_LED- LED_FAULT2- PWR_SW+ LAN_ACT PWR_SW- LAN_LINK# RESET+ SMB_DAT RESET- SMB_CLK ID_SW- Temp_sensor SMB_ALR FPB_HDD_ACTIVITY_G- SMB_CLK FPB_HDD_FAULT_R- SMB_DAT http://www.tyan.com...

  • Page 64: Replacing The Usb Board

    Replacing the USB Board Follow these instructions to replace the M1702T70-USB USB Board. Unscrew to release the USB front cover. Remove the USB front cover. http://www.tyan.com...
  • Page 65 Unscrew the USB Board. Disconnect the USB Board to replace a new one. Follow the steps described earlier in reverse to reinstall the USB Board. http://www.tyan.com...

  • Page 66: Usb Board Specifications

    USB Board Connector Pin Definition J2: 2x5-pin Connector for FP Connector of Motherboard Definition Description Definition Description VCC_USB USB power VCC_USB USB power USB_P0_N Port1(J1) USB- USB_P1_N Port2(J3) USB- USB_P0_P Port1(J1) USB+ USB_P1_P Port2(J3) USB+ GND1 Ground GND2 Ground No connect http://www.tyan.com...

  • Page 67: Replacing The System Fan

    Replacing the System Fan Follow these instructions to replace the system fan. Press the latch in the direction as shown to lift up the fan in an iron holder. Take out the fan unit. Loose the screws on both sides. http://www.tyan.com...
  • Page 68 Push the latch in the direction as the arrow shown to release the fan from the iron holder. Remove the iron holder to replace a new fan. After replacing a new one, put the fan unit back into the cage. http://www.tyan.com...

  • Page 69: Replacing The Fan Backplane Board

    Replacing the Fan Backplane Board Follow these instructions to replace the Fan Backplane Board in your system. Disconnect the cables attached to the Fan Backplane Board. Use a screw drive to unscrew the fan cage and lift it up from the chassis. http://www.tyan.com...
  • Page 70 Release the 14 screws on the Fan Backplane Board to replace a new one. Follow the steps described in reverse order to reinstall the fan cage. http://www.tyan.com...

  • Page 71: Fan Bp Board Specifications

    (2) 1x4pin R/A Power Connector  (8) 2x2pin Fan Connectors Integrated I/O  (1) 2 x10pin Barebone Fan Connector  (1) 2x2pin Connector for S7015 3.9.2 Fan BP Board LED Definitions FAN Status Green LED Red LED With Fan Without Fan http://www.tyan.com...

  • Page 72: Replacing The Hdd Backplane Board

    Disconnect all cables attached to the HDD BP Board. Unscrew the HDD BP Board. Remove the HDD BP Board from the hook. Replace a new HDD BP Board and reinstall it into the chassis following the steps in reverse. http://www.tyan.com...

  • Page 73: Hdd Bp Board Specifications

    Form Factor 81.8 x 436 mm, 4-layer PCB  12 SAS HDD Connectors  Integrated I/O 3 Mini SAS Connectors to MB  1 2 x 4-pin Power Connector  12 HDD active LEDs LEDs  12 HDD fault LEDs http://www.tyan.com...

  • Page 74: Hdd Bp Board Led Definitions

    Identify (Locate the HDD)  Blinking(4Hz)  x  SAS/SATA RAID Building  Blinking(1Hz)  x  NOTE: If the LSI 9280-l6i4e or 9260-l6i storage cards is installed, the LED status will change as below: Identify (Locate the HDD)  Blinking(4Hz)  SAS/SATA RAID Building  Blinking  Blinking  http://www.tyan.com...

  • Page 75: Replacing The Power Supply

    3.11 Replacing the Power Supply Press and hold the latch to pull the power supply out. After replacing a new power supply, press and hold the latch to push the power supply back into the chassis. http://www.tyan.com...
  • Page 76 NOTE http://www.tyan.com...

  • Page 77: Appendix I: Cable Connection Tables

     J23 & J22 FAN Control Cable FAN Board Connects to Motherboard M1806G70-FB  J49, J51, J52, J53 Front Panel Control Cable Front Panel Board Connects to Motherboard M1701T70-FPB  USB Cable USB Board Connects to Motherboard M1702T70-USB  http://www.tyan.com...
  • Page 78 Internal 2.5” HDD Cables Power Board Connects to Internal 2.5” HDD M1601T70-D-PDB  J4 (Riser1) 2.5” HDD Power Connector J5 (Riser2)  2.5” HDD Power Connector Motherboard Connects to Internal 2.5” HDD  2.5” HDD SATA Connector  2.5” HDD SATA Connector http://www.tyan.com...

  • Page 79: Appendix Ii: Technical Support

    MiTAC serves multiple market segments with the industry’s most competitive services to support them. Please feel free to contact us directly for this service at tech-support@tyan.com Help Resources: 1. See the beep codes section of this manual.
  • Page 80 -mber. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. TYAN® TN70-B7016 Service Engineer’s Manual V1.00 Document No.: D2124-100 http://www.tyan.com...
