Before starting assembly, look carefully through the individual assembly steps shown

and assemble the equipment in the order indicated.

Step 1:

Before you unpack the RX7 rowing machine, make sure that you have a work space

of 2m x 2.5 m.

Step 2:

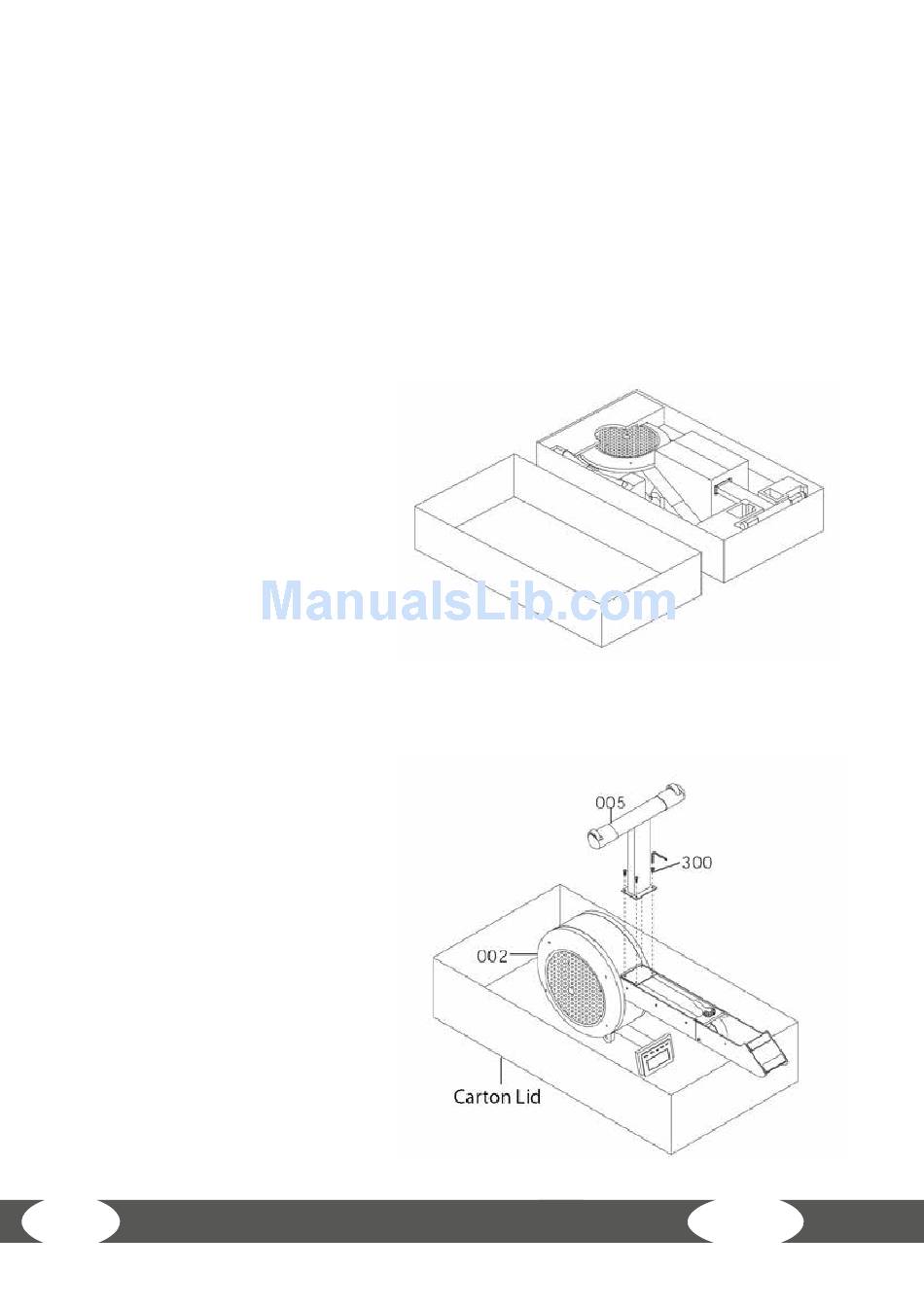

Open the box as shown in the

figure below.

NOTE: In order to protect the RX7

rowing machine from damage as

long as possible, you should only

remove the protective packaging

when it is necessary.

Step 3:

a) Place the frame [002] in the

carton lid as shown in the image on

the right.

b) Loosen the four pre-mounted

screws [300] from the frame [002].

c) Mount the front supporting foot

[005] as in the illustration with the

previously loosened screws [300]

and tighten them..
