Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly Cable Installation Overview STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List...
Page 5

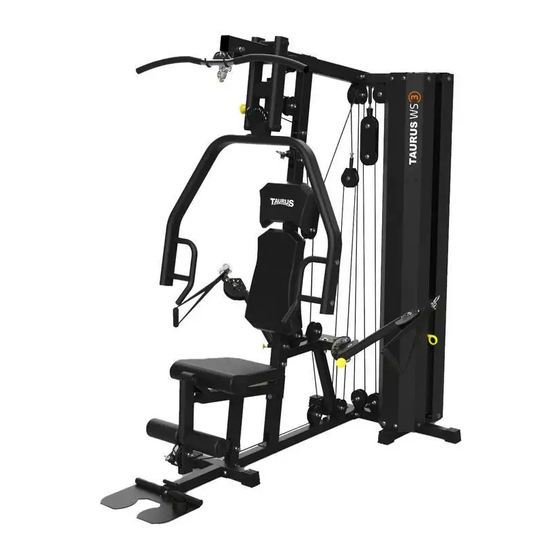

With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
Page 6
ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
GENERAL INFORMATION Technical Data Weight and dimensions: Article weight (gross, inc. packaging): 398,5 kg Article weight (net, without packaging): 193 kg Packaging dimensions (LxWxH): No. 1 approx. 194 cm x 32 cm x 24 cm No. 2 approx. 163 cm x 32 cm x 24 cm No.
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment.
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠...
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Then tighten the bolts using the tool only when you are instructed to do so. Step 1 Place the end caps (79) onto the base frame (1), the bottom cross connector (6) and the side row connector (7).
Page 16
Step 2 Mount the top frame (9) to the rear upright frame (5) with two bolt sets (96). Mount the joint plate (42) and the top frame (A9) to the front upright frame (A8) with two bolt sets (99).. Tighten all bolts with the tool. Step 3 Screw both guide rods (28) onto the bottom cross connector (6).
Page 18
Step 4 Mount the fixing bracket (10) to the guide rods (28) with two bolt sets (101). Mount the joint plate (42) and the fixing bracket (10) to the top frame (9) with two bolt sets (96). Mount the buffer (84) to the fixing bracket (10) with one bolt set (100). Tighten all bolts with the tool.
Page 19
Step 5 Mount the cable arm assemble (A13) to the rear connector (11) with two bolt sets (103). Screw the cable arm assemble (A13) to the front upright frame (A8) with two bolt sets (96). Place the end caps (79) onto the front base tube (2). Mount the low row connector (3) and the front base tube (2) to the base frame (1) with two bolt sets (96).
Page 20
Step 6 Mount the seat cushion support (A20) to the base frame (1) with one bolt set (96). Insert the cushion support (22) into the seat cushion support (A20) and secure the connection with the fast pin (86). Mount the seat cushion support (A20) and the joint plate (42) to the front upright frame (8) with two bolt sets (99).
Page 22
Step 7 Mount the press arm selector (A17) to the top frame (A9) and guide the pivot axle (31) through. Insert a screw (36) into the pivot axle (31) and secure it with a nut set (108). Mount the press arm (A16) to the press arm selector (A17) and guide the pivot axle (31) through. Insert a screw (36) into the pivot axle (31) and secure it with a nut set (108).
Page 24
Step 8 Figure A: Place the two plastic bushings (90) into the top frame (9). Place cable 1 (119) on pulley P1 (91). Mount pulley P1 (91) to the top frame (9) with one bolt set (98). Figure B: Place two plastic bushings (90) into the top frame (9). Place cable 1 (119) on pulley P2 (91).
Page 26
Step 9 Figure A: Place two plastic bushings (90S) into the leg extension (A21). Place cable 2 (120) on the Ø100 pulley P12 (92). Mount the Ø100 pulley P12 (92) to the leg extension (A21) with one bolt set (112). Figure B: Place two plastic bushings (90) into the seat cushion support (A20).
Page 28
Step 10 Figure A: Fix cable 3 (121) to the rotational pulley block (23) with one gyro wheel (33), one bushing (34) and one bolt set (114). Guide cable 3 (121) over pulley P19 (91) and mount pulley P19 (91) to the rotational pulley block (23) with one bolt set (110). Figure B: Fix the cable 3 (121) with pulley P20 (91) to the cable arm (14) with one bolt set (110).
Page 30
Step 11 Figure A: Screw cable 4 (122) into the upper part of the pulley block (12). Figure B: Guide cable 4 (122) over pulley P28 (91) backwards. Figure D: Guide the cable 4 (122) downwards and underneath pulley P29 (91). Mount pulley P29 (91) to the pulley holder on the bottom cross connector (6) with one bolt set (110).
Page 31
Step 12 Mount the left iron shell (25) to the bottom cross connector (6) and the fixing bracket (10) with four bolt sets (115). Mount the right iron shell (26) to the bottom cross connector (6) and the fixing bracket (10) with four bolt sets (115).
Page 32
Step 13 Mount the seat cushion (48) to the cushion support (22) with four bolt sets (117). Mount the headrest cushion (49) to the front upright frame (8) with two bolt sets (116). Mount the back cushion (47) to the front upright frame (8) with two bolt sets (115). Attach one hand grip (46) to each side on the end of cable 3 (121) with each one hoist hook (93).
Page 33
Step 14 Place the plugs (94) into the holes of the base frame (1), rear upright frame (5) and the bottom cross connector (6).
STORAGE AND TRANSPORT General Instructions ࣑ ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 5°C and 45°C. WARNING ⚠...
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Half-yearly Yearly Cables and pulleys...
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape.
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi-gym Model Name: Article Number: TF-WS3-2...
Parts List Name Qty. BASE FRAME FRONT BASE TUBE LOW ROW CONNECTOR FOOT PLATE REAR UPRIGHT BOTTOM CROSS CONNECTOR SIDE ROW CONNECTOR FRONT UPRIGHT TOP FRAME FIXING BRACKET REAR CONNECT SINGLE PULLEY BLOCK CABLE ARM ASSEMBLE CABLE ARM AXLE COLLAR PRESS ARM PRESS ARM SELECTOR HAND GRIP (LEFT)
Page 41
PULL PIN GYRO WHEEL BUSHING INSERT PIN DOUBLE - THREAD SCREW ROUND TUBE INTENSIFY PLATE (1) INTENSIFY PLATE (2) INTENSIFY PLATE (3) PULLEY BLOCK JOINT PLATE BIG WASHER IRON BUSHING PLASTIC BUSHING HAND GRIP OF CABLE ARM BACK CUSHION SEAT CUSHION HEADREST CUSHION WEIGHT PLATE TOP PLATE...
Page 42
PULLEY - Ø100 HOIST HOOK HOLE PLUG SQUARE NECK BOLT M10×60 + WASHER + LOCK NUT BOLT M10×75 + TWO WASHERS + LOCK NUT SQUARE NECK BOLT M10×60 BOLT M10×70 + TWO WASHERS + LOCK NUT BOLT M10×90 + TWO WASHERS + LOCK NUT CROSS RECESSED COUNTERSUNK HEAD SCREW M10×65 + TWO NUTS BOLT M10×20 + WASHER CROSS PAD HEAD SCREW M6×10...
Page 43
RECTANGLE PLUG - 7050 SQUARE PLUG - 38 SQUARE PLUG - 25 SPRING FOAM TUBE LAT BAR CIRCLIPS FOR SHAFT BIG WASHER 12 CORE PULLING RIVET WASHER 10 + LOCK NUT M10 PROTECT PAD BOLT M10×45 + TWO WASHERS + LOCK NUT RUBBER PLATE CROSS SOCKET HEAD SCREWS M5×10 SQUARE NECK BOLT M10×60...
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
Page 47
Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 +49 4621 4210-698 info@fitshop.dk service-france@fitshop.fr technik@sport-tiedje.de ...
Page 49
LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store for www.sport-tiedje.co.uk home fitness equipment with currently 80 stores www.sport-tiedje.de/blog and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 web shops www.facebook.com/SportTiedje in the respective national language or have their desired equpiment assembled on site.
