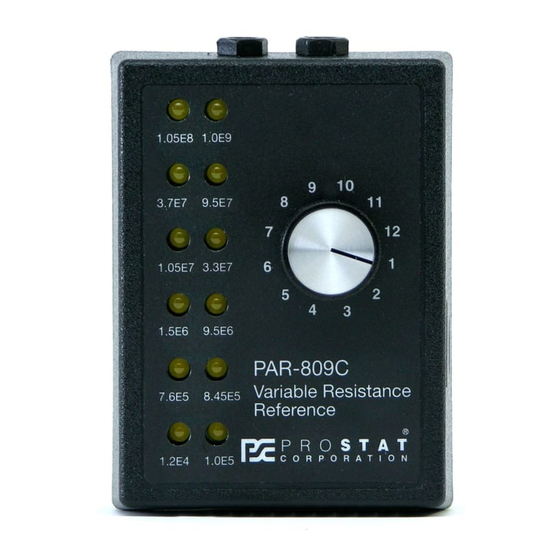

VARIABLE RESISTANCE REFERENCE
PAR-809C
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PAR-809C and is the answer not in the manual?

Questions and answers

Related Manuals for Prostat PAR-809C

Summary of Contents for Prostat PAR-809C

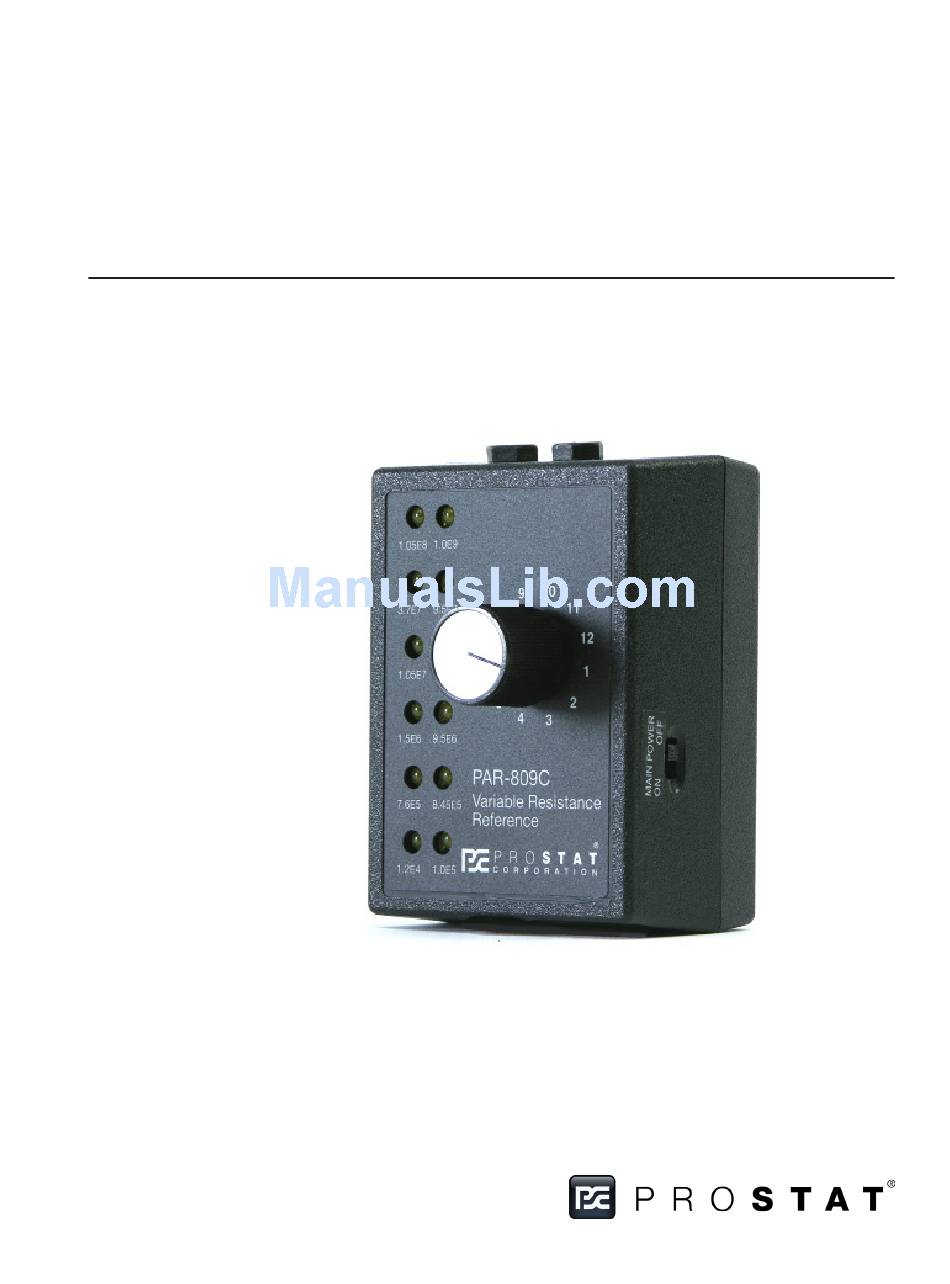

  • Page 1 VARIABLE RESISTANCE REFERENCE PAR-809C User Manual...

  • Page 3: Table Of Contents

    Maintenance General Specifications Copyright © 2011 by Prostat® Corporation. All rights reserved. Printed in the United States of America. No part of this manual may be used or reproduced in any manner whatsoever without written permission. For information contact Prostat Corporation, 1072 Tower Lane, Bensenville, IL 60106 USA...

  • Page 4: Introduction

    B. The PAR-809C is intended as a resistance reference for DC circuits of 100 volts or less. 1. The factory resistance references are documented at 10 and 100 volts DC. 2. Inspection and re-certification of resistance reference values should be conducted annually.

  • Page 5: Applications

    ON position. 5. Insure the wrist strap device under test is ON and functional. 6. Using the second PAR-809C test lead with metal alligator clip installed, press the Push to Test button or plate on the wrist strap tester.
  • Page 6 B. Confirming Foot Wear Tester Resistance Performance Range 1. Plug the two supplied test leads into the PAR-809C receptacles. 2. Attach an alligator clip to one PAR-809C test lead. Attach the alligator clip to the Foot Wear test plate. Rev. B / January 2012...
  • Page 7 ON position. 5. Insure the Foot Wear device under test is ON and functional. 6. Using the second PAR-809C test lead with a metal alligator clip installed, press the push to Test Button or plate on the Footwear tester.
  • Page 8 4. Plug the tow test lead banana plugs into the PWA-805 Meter receptacles 5. Plug the two supplies test leads into the PAR-809C receptacles 6. Attach an alligator clip (not provided) to one PAR-809C test lead. Attach the alligator clip to the Right hand cuff cylinder of the PWA-805 Wrist Strap Auditor.

  • Page 9: Maintenance

    PAR-809C Variable Resistance Reference 12. Vary the PAR-809C reference resistance by rotating the Position Selector Knob on the face of the PAR-809C to successive positions and record measurements as in step 11. 13. The indicated resistance of the resistance meter should be within 10 percent of the factory resistance documented.

  • Page 10: General Specifications

    PAR-809C Variable Resistance Reference PAR-809C Variable Resistance Reference Specifications Resistance Reference & Position: Resistance in Ohms Position #1: 1.2x10 Position #5: 1.5x10 Position #9: 3.7x10 Position #2: 1.0x10 Position #6: 9.5x10 Position #10: 9.5x10 Position #3: 7.6x10 Position #7: 1.05x10 Position #11: 1.05x10...
  • Page 12 Specifications are subject to change without notice. All Prostat trademarks and trade names are the property of Prostat Corporation. All other trademarks and trade names are the property of their respective companies. P R O F E S S I O N A L...
