Summary of Contents for Prostat PAN-750

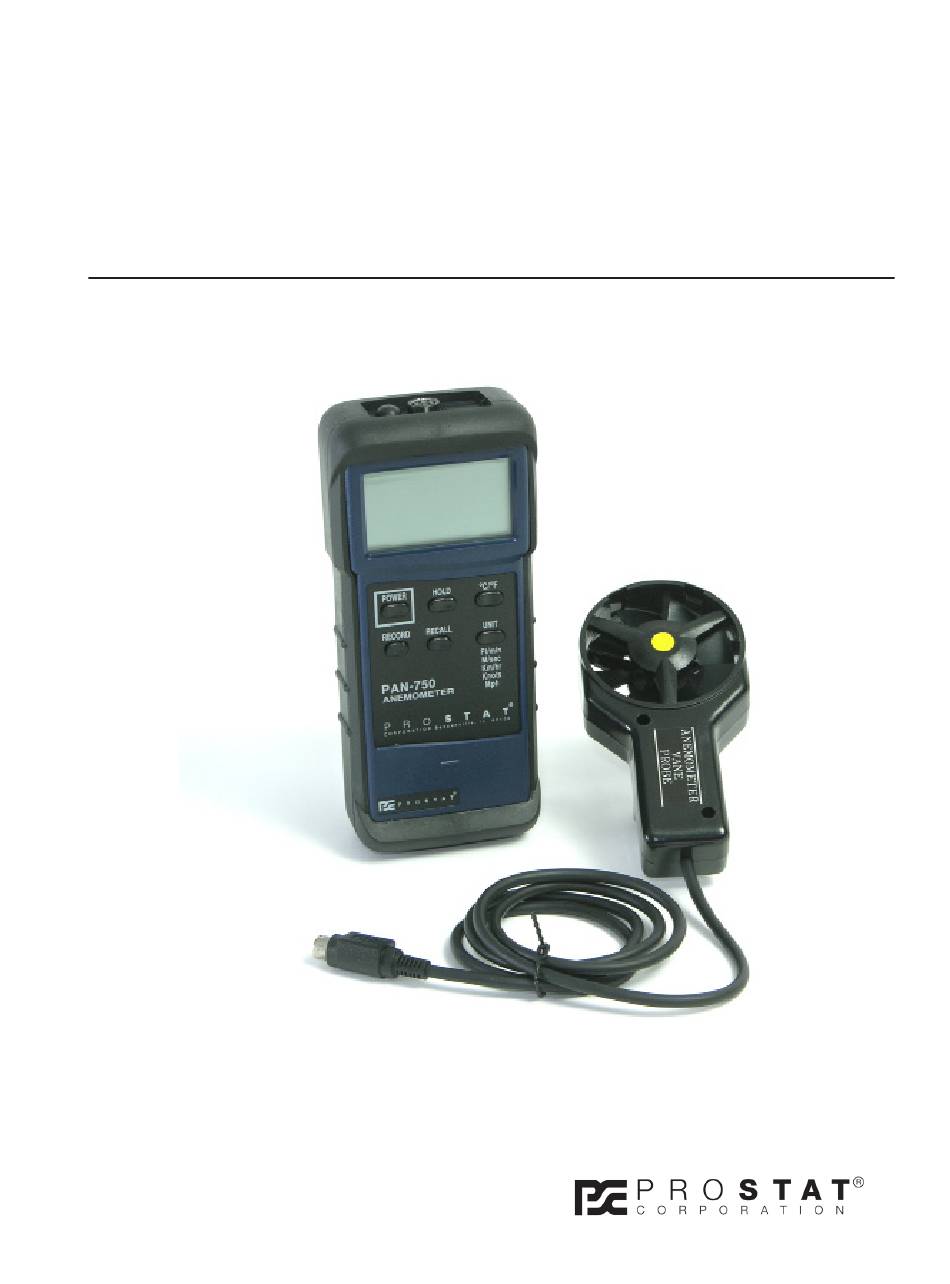

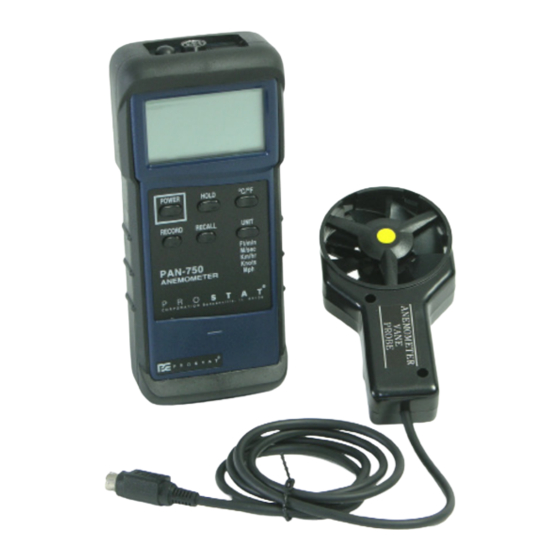

- Page 1 ANEMOMETER PAN-750 User Manual...
-
Page 3: Table Of Contents
Features General Specifications Copyright © 2011 by Prostat® Corporation. All rights reserved. Printed in the United States of America. No part of this manual may be used or reproduced in any manner whatsoever without written permission. For information contact Prostat Corporation, 1072 Tower Lane, Bensenville, IL 60106 USA... -
Page 4: General Operation
A. Install the Sensor Plug into the Sensor Input Socket 1. The flat arrow side of the sensor input socket faces down and the arrow points towards the PAN-750 when install- ing. 2. If the sensor input socket does not easily slide into the sensor plug, look at the direction of the arrow and try again. -
Page 5: Data Hold Function
2. The flat arrow side of the sensor input socket faces down and the arrow points towards the PAN-750 when installing. 3. If the sensor input socket does not easily slide into the sensor plug, look at the direction of the arrow and try again. -
Page 6: Auto Power Off Feature
PAN-750 Anemometer m/s = meters per second ft/min = feet per minute mile/h = miles per hour km/h = kilometer per hour knots = nautical miles per hour (international knot) The units printed on the keypad under the unit button DO correspond to the units on the display, however the sequence of units (order in which they appear on the display) is not as listed on the keypad. -
Page 7: Contrast
PAN-750 Anemometer 1. To override the Auto Power Off function, during measurement, press the Record key to ex- ecute the memory record function. The unit will not automatically turn itself off while in the record function. VI. Contrast A. It may be necessary to adjust the display contrast because of a change in the viewing angle or bat- tery power voltage drift. - Page 8 PAN-750 Anemometer F. Operation Temperature - 0 ° C to 50 ° C (32 ° F to 122 ° F) G. Operating Humidity - Maximum 80% RH H. Power Supply - 9V battery (Heavy Duty Type) I. Power Current - Approximately DC 8.3 mA J.
-
Page 9: General Specifications
PAN-750 Anemometer PAN-750 Anemometer Specifications Input Power: One 9 Volts battery (included). Battery provide up to 500 hours of operation. Relative Humidity Range: 5 to 95% at operation temperatures from -10 to +50 ° C Temperature Range: -10 to +50 ° C (+14 to +122 ° F) - Page 10 PAN-750 Anemometer NOTES Rev. B / July 2001...
- Page 12 Specifications are subject to change without notice. All Prostat trademarks and trade names are the property of Prostat Corporation. All other trademarks and trade names are the property of their respective companies. P R O F E S S I O N A L...
