FIELD METER SET
PFK-100
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PFK-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Prostat PFK-100

Summary of Contents for Prostat PFK-100

  • Page 1 FIELD METER SET PFK-100 User Manual...

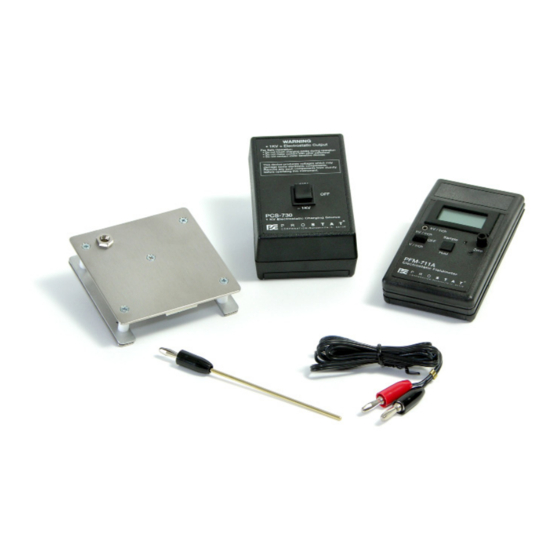

  • Page 3 PFK-100 Field Meter Set I. Introduction The PFM-711A is an accurate, compact electrostatic fieldmeter used for locating and measuring static charge potentials. The Charge Plate Assembly CPM-720A allows the PFM-711A to be used to balance & Monitor air ionization equipment, and generally function as a Charge Plate Monitor (CPM). Using the PCS-730 Charging Source, decay performance of ionizers, materials and other equipment may be measured.
  • Page 4 PFM-100 Field Meter Set Hand Held by Grounded Operator (Table 1) 12 inches 18 inches 24 inches (+)Average 1.042 0.844 0.861 (-) Average 0.977 0.930 0.798 Global Ave 1.006 0.890 0.824 Table 1: Hand Held by Grounded Operator Rev. C / February 2, 2015...
  • Page 5 PFK-100 Field Meter Set Mounted on 5lb. Weight with Grounded Wrist Strap (Table 2) 12 inches 18 inches 24 inches (+)Average 1.054 0.912 0.932 (-) Average 0.929 0.927 0.901 Global Ave 0.962 0.920 0.914 Table 2: Mounted on 5lb. Weight with Grounded Wrist Strap D.
  • Page 6 PFM-100 Field Meter Set II. Cautions & Warnings A. Do not point the PFM-711A Field Meter Ranging Lights into anyone’s eyes. CAUTION Do not point ranging lights into anyone’s eyes. B. Do not exceed 6,000 volts on CPM-720A Charge Plate Assembly. C.
  • Page 7 PFK-100 Field Meter Set INTERNAL ZERO ADJUSTMENT (r27) DIGITAL DISPLAY ANALOG OUTPUT PANEL ZERO (r16) INTERNAL GAIN ADJUSTMENT (r10) RANGE/POWER SWITCH (s1) SAMPLE/HOLD BUTTON (s2) B. PFM-711A Field Meter Preparation for use. 1. Install 9 volt battery provided by sliding battery com- partment open and firmly snapping battery terminals to the appropriate connectors.

  • Page 8: Operational Note

    PFM-100 Field Meter Set b. Cycle the SAMPLE/HOLD button (s2) by pushing it a few times; note the HOLD indication on the meter’s display. Release SAMPLE/HOLD so that the meter is free to measure fields. c. Hold a flat sheet of material in front of the meter’s sensing plate to confirm operation of the red ranging Bull’s Eye light system.
  • Page 9 PFK-100 Field Meter Set between the sensing and notched ground plates. D. CPM-720A Charge Plate Assembly Preparation for use 1. With the PFM-711A Field Meter controls and the CPM-720A sensing plate facing up (the lower plate has a cutout for the meter), carefully slide the CPM-720A’s lower ground plate into the LOWER mounting grooves molded into the sides of the PFM- 711A’s case.

  • Page 10: Operational Requirement

    PFM-100 Field Meter Set OPERATIONAL REQUIREMENT Cases of PFM-711A field meter and PCS-730 charging source MUST be grounded for proper operation . 4. With the operator’s fingers contacting the grounding snap on the back of the PFM-711A Field Meter unit, slide the three position (kV/inch, OFF, V/inch) RANGE/POWER switch (s1) to the kV/inch position.
  • Page 11 PFK-100 Field Meter Set F. PCS-730 Charging Source Preparation for Use 1. Install provided 9 volt battery by sliding battery com- partment open and firmly snapping battery terminals to the appropriate connectors. Battery can only be con- nected in one way. Carefully re-close the battery com- partment.
  • Page 12 PFM-100 Field Meter Set Assembly and Charge the CPM-720A to approximately +1.20kV. 7. Discharge the upper plate to ground, or short the upper and lower plates, until the PFM-711A meter reads zero. 8. With the operator’s fingers contacting the metal ground- ing snap on the back of the PCS-730 Charging Source, press the three position rocker switch to the rear, -kV position.
  • Page 13 PFK-100 Field Meter Set 1. Confirming the electrostatic voltage balance of ionizer blowers and systems 2. Measuring electrostatic voltage generation of personnel in conjunction with footwear and floor surfaces. 3. Measuring electrostatic voltage generation related to chairs, carts and equipment.
  • Page 14 Follow the manufacturer’s instructions for normal operations. 2. Mount the CPM-720A Charge Plate Assembly on the PFM-711A Field Meter Case. 3. Ground the case of the PFM-711A. Note there are two ways to use Prostat devices to ground the PFM-711A/CPM-720A combination.
  • Page 15 PFK-100 Field Meter Set OPERATIONAL REQUIREMENT If documentation of ionizer balance is required, connect the analog output of the PFM-711A to PGA-710 Autoanalysis System or an X-Y Plotter. Note that the RED analog output lead is Positive (+) and the BLACK is Negative (-). Zero the PFM- 711A/CPM-720A combination and the X-Y Plotter to ground.
  • Page 16 PFM-100 Field Meter Set 4. Select the range you wish to use for auditing the ionizer’s decay performance. NOTE: Most accurate decay time measurements are obtained using the analog output connected to a PGA- 710 Autoanalysis System or an X-Y plotter, PDT-740B Timer or digital Multimeter. a.
  • Page 17 1. Mount the CPM-720A Charge Plate Assembly on the PFM- 711A Field Meter case. 2. Ground the case of the PFM-711A, as described below. a. Using a Prostat® wrist strap cuff, mount the cuff on one of the five pound NFPA electrodes found in Prostat® kits.
  • Page 18 PFM-100 Field Meter Set c. Snap mount the PFM-711A’s 10 mm female snap (located on the back of the PFM-711A’s case) onto the wrist strap 10 mm male snap. d. Adjust the wrist strap cuff so that the instrument is held firmly to the electrode; lock the adjustment buckle.
  • Page 19 PFK-100 Field Meter Set INTERNAL ZERO ADJUSTMENT (r27) DIGITAL DISPLAY ANALOG OUTPUT PANEL ZERO (r16) INTERNAL GAIN ADJUSTMENT (r10) RANGE/POWER SWITCH (s1) SAMPLE/HOLD BUTTON (s2) 1. PFM-711A Controls The PFM-711A has two switches and a rotary knob. A three-position slide switch (S1) pro- vides Range Selections and ON/OFF control.
  • Page 20 Zero knob range position, general user maintenance is not required. The case has been sealed and BREAKING THE SEALS WILL VOID THE WARRANTY. If for any reason you believe the meter is not working correctly, contact Prostat Corporation for assis- tance.

  • Page 21: User Caution

    PFK-100 Field Meter Set USER CAUTION Other than battery replacement & front panel zero range adjustment, there are no user serviceable parts. Any unauthorized service will void the warranty and result in additional repair charges. 1. Cleaning the PFM-711A Case & Display a.
  • Page 22 2. User adjustment is not recommended. 3. Low output voltage is usually due to a weak battery or improper grounding. 4. The PCS-730 should only be serviced by Prostat or Qualified Instrument Repair Technicians Opening the unit will void warranty.
  • Page 23 PFK-100 Field Meter Set PFK-100 Field Meter Set Specifications PFM-711A Electrostatic Fieldmeter: Meter Hold Display: 3-1/2 digit Liquid Crystal Display with 0.4” digit height. Automatic polarity, and LOW BATTERY indicators. Output: Analog signal output and 30 inch two conductor cable provided. ±10.0 kV meter reading equals ±1.0 volts output.
  • Page 24 PFM-100 Field Meter Set CPM-720A Charge Plate Assembly: Isolated Plate: Stainless Steel parallel plates, 3.25 inches square. Auxiliary female jack installed. Capacitance: Plate Capacitance is 15.6 to 15.8 picofarads (pF) ± 1 pF when mounted to PFM-711A Filed Meter Range: 0 to ±...
  • Page 25 PFK-100 Field Meter Set NOTES Rev. C / February 2, 2015...
  • Page 27 Specifications are subject to change without notice. All Prostat trademarks and trade names are the property of Prostat Corporation. All other trademarks and trade names are the property of their respective companies. P R O F E S S I O N A L...
