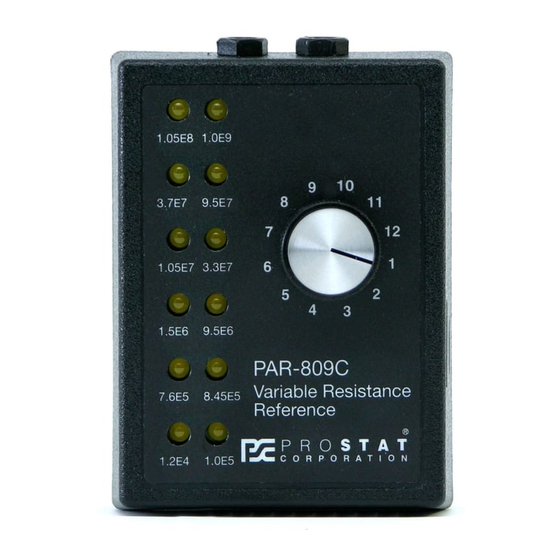

VARIABLE RESISTANCE REFERENCE
PAR-809C
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PAR-809C and is the answer not in the manual?

Questions and answers

Related Manuals for Prostat PAR-809C

Summary of Contents for Prostat PAR-809C

  • Page 1 VARIABLE RESISTANCE REFERENCE PAR-809C User Manual...

  • Page 3: Table Of Contents

    General Specifi ca ons Copyright © 2011 by Prostat® Corpora on. All rights reserved. Printed in the United States of America. No part of this manual may be used or reproduced in any manner whatsoever without wri en permission. For informa on contact Prostat Corpora on, 1072 Tower Lane, Bensenville, IL 60106 USA Prostat is the registered trademark of Prostat®...

  • Page 4: Introduc On

    B. The PAR-809C is intended as a resistance reference for DC circuits of 100 volts or less. 1. The factory resistance references are documented at 10 and 100 volts DC. 2. Inspec on and re-cer fi ca on of resistance reference values should be conducted annually.

  • Page 5: Applica Ons

    Prostat PWA-805 Wrist Strap Auditor. Calibra on of resistance meters is easily confi rmed using the PAR-809C. C. Proper use of the PAR-809C insures accurate, func onal performance confi rma on of cri cal ESD control tools.
  • Page 6 B. Confi rming Foot Wear Tester Resistance Performance Range 1. Plug the two supplied test leads into the PAR-809C receptacles. 2. A ach an alligator clip to one PAR-809C test lead. A ach the alligator clip to the Foot Wear test plate.
  • Page 7 3. Rotate the PAR-809C’s Posi on Selector knob to Posi on 1, the lowest resistance reference. 4. Turn ON the PAR-809C’S posi on indica ng lights by sliding the ON/OFF switch located on the side of the instrument to the ON posi on.
  • Page 8 5. Plug the two supplies test leads into the PAR-809C receptacles 6. A ach an alligator clip (not provided) to one PAR-809C test lead. A ach the alligator clip to the Right hand cuff cylinder of the PWA-805 Wrist Strap Auditor.

  • Page 9: Maintenance

    PAR-809C Variable Resistance Reference 12. Vary the PAR-809C reference resistance by rota ng the Posi on Selector Knob on the face of the PAR-809C to successive posi ons and record measurements as in step 11. 13. The indicated resistance of the resistance meter should be within 10 percent of the factory resistance documented.

  • Page 10: General Specifi Ca Ons

    PAR-809C Variable Resistance Reference PAR-809C Variable Resistance Reference Specifi ca ons Resistance Reference & Posi on: Resistance in Ohms Posi on #1: 1.2x10 Posi on #5: 1.5x10 Posi on #9: 3.7x10 Posi on #2: 1.0x10 Posi on #6: 9.5x10 Posi on #10: 9.5x10 Posi on #3: 7.6x10...
  • Page 12 Specifi ca ons are subject to change without no ce. All Prostat trademarks and trade names are the property of Prostat Corpora on. All other trademarks and trade names are the property of their respec ve companies. P R O F E S S I O N A L...
