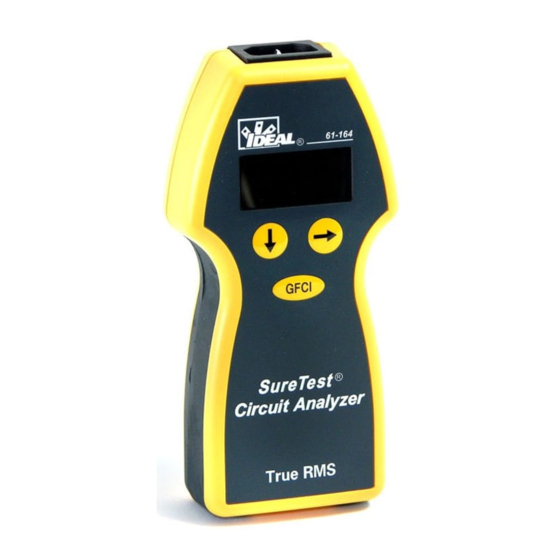

- Page 1 P R O F E S S I O N A L S T A T I C C O N T R O L P R O D U C T S SureTest® Universal Circuit Analyzer PGT-61-164 SureTest®, Manufactured by Ideal Industries, Sycamore, Illinois USA Operations Manual...
- Page 2 Copyright © 2001-2007 by PROSTAT® Corporation. All rights reserved. Printed in the United States of America. No part of this manual may be used or reproduced in any manner whatsoever without written permission. For information contact PROSTAT Corporation, 1072 Tower Lane, Bensenville, IL 60106...
-
Page 3: Table Of Contents
PGT-61-164 SureTest Circuit Analyzer TABLE OF CONTENTS ® ® PROSTAT PGT-61-164 SURETEST CIRCUIT ANALYZER Title Page # Introduction ........................3 General Operation......................3 III. Menu Navigation ......................4 GFCI Test Button ......................5 Testing Procedure......................5 GFCI Testing........................9 General Specifications ....................11... -
Page 4: Introduction
PGT-61-164 SureTest Circuit Analyzer WARNING! To maintain stated accuracies during repeated use, allow 20 seconds between insertions to adequately dissipate any heat buildup during the load testing. Introduction Utilizing patented technology, the SureTest circuit analyzer “look behind walls” to identify wiring problems that can lead to personal shock hazards, electrical fires, or equipment performance issues. -
Page 5: Menu Navigation
PGT-61-164 SureTest Circuit Analyzer SureTest Circuit Analyzer Menu Structure Navigation Buttons GFCI Test Button AFCI Test Button (Not included on the 61-164) III. Menu Navigation The microprocessor’s top priorities are to take live measurements and then analyze the data. Hence, the microchip occasionally will not recognize the keypad buttons being rapidly depressed, while it’s executing these changes. -
Page 6: Gfci Test Button
PGT-61-164 SureTest Circuit Analyzer GFCI Test Button Depressing this button displays the GFCI main menu. Two tests can be performed in this menu: GFCI and EPD. The GFCI tests Ground Fault Circuit Interrupting devices by faulting 6-9mA from hot-to-ground per UL-1436. The EPD tests those breakers, which have an Equipment Protective Device feature that trips the breaker if a ground fault of greater than 30mA is detected. - Page 7 PGT-61-164 SureTest Circuit Analyzer Voltage Measurements The line voltage measurement should be 120 VAC +/-10% fluctuation at 60 Hz. The peak voltage should be 1.414 times the rms line voltage reading for a clean sine waveform. Ground- to-neutral voltage should be less than 2 VAC. In a single-phase circuit, a higher ground-neutral voltage indicates excessive current leakage between the neutral and ground conductors.
- Page 8 PGT-61-164 SureTest Circuit Analyzer Voltage Drop (V ) Measurements The SureTest measures the line voltage, applies a load on the circuit, measures the loaded voltage, then calculates the voltage drop. Results are displayed for 12A, 15A, and 20A loads. The National Electrical Code recommends 5% as the maximum voltage drop for branch circuits for reasonable efficiency (NEC article 210-19, FPN 4).
- Page 9 PGT-61-164 SureTest Circuit Analyzer ASCC = Line Voltage (V )/ (Hot Ω + Neu Ω) ASCC = Line Voltage (V )/ (Hot Ω + 1/(1/ Neu Ω + 1/Grd Ω) Impedance (Z) Measurements If the voltage drop measurement exceeds 5%, analyze the hot and neutral impedances. If one is significantly higher than the other, the problem is with the conductor with the much higher impedance.
-
Page 10: Gfci Testing
PGT-61-164 SureTest Circuit Analyzer GFCI Testing To test the GFCI device, the SureTest creates an imbalance between the hot and neutral conductors by leaking a small amount of current from hot to ground using a fixed value resistor. The trip current should not be less than 6mA or greater than 9mA per UL-1436. A functional GFCI should sense a imbalance and disconnect the power. - Page 11 PGT-61-164 SureTest Circuit Analyzer Expected Possible Possible Measurement Problem Result Causes Solutions GFCI doesn’t trip GFCI maybe Check wiring for GFCI Test GFCI trips within within proper trip installed proper installation trip time time improperly in accordance with manufacturer’s instructions and GFCI doesn’t trip GFCI may be Check wiring and defective...
-
Page 12: General Specifications
PGT-61-164 SureTest Circuit Analyzer ® PGT-61-164 SureTest Circuit Analyzer Specifications General Specifications Display: 128x64 OLED with backlight Display update for Volt: Less than 2.5 times second Over-range indication on all functions: Display “OL” Operating Environment, Relative Humidity: F to 122 F (0 C to 50 C) at <80% Rh... - Page 16 Copyright 2001-2007, Prostat Corporation Printed in U.S.A. 1072 Tower Lane, Bensenville, IL 60106 USA www.prostatcorp.com...
