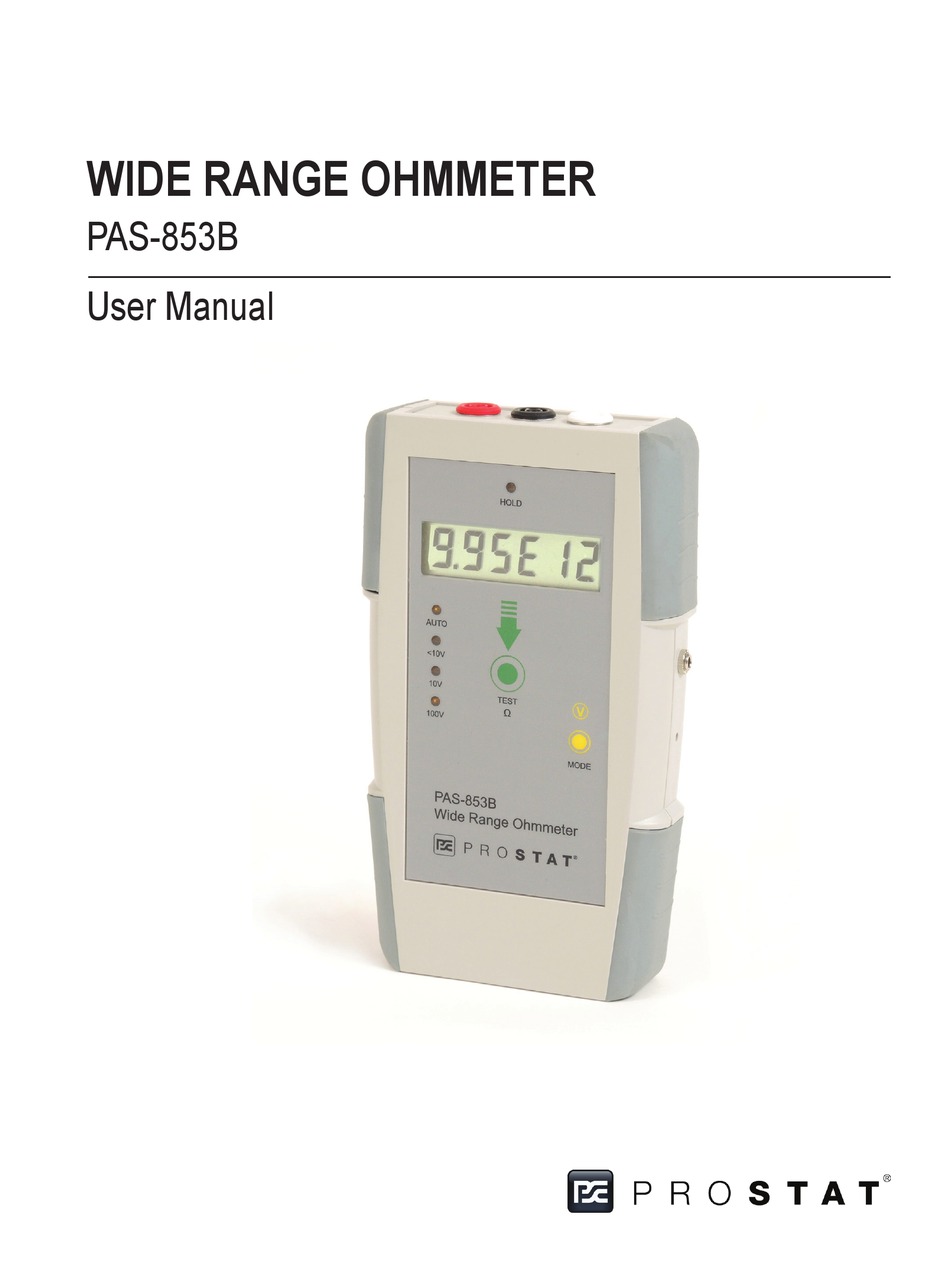

- Page 1 User Manual...
-
Page 3: Table Of Contents
Specifications General Copyright © 2016 by Prostat® Corporation. All rights reserved. Printed in the United States of America. No part of this manual may be used or reproduced in any manner whatsoever without written permission. For information contact Prostat Corporation, 1072 Tower Lane, Bensenville, IL 60106 USA... -
Page 4: Introduction & Description

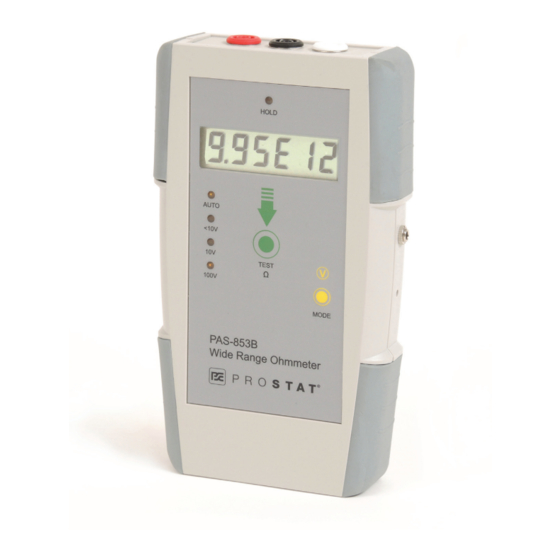

PAS-853B Wide Range Ohmmeter i. introduction & description The PAS-853B instrument is a wide range ohmmeter that measures accurately from 0.01 to <1.0x10 ohms, i.e., 9.99x10 ohms. In its AUTO mode the instrument automatically adjusts resistance range and selects test voltage in accordance with standard practices outlined in ANSI/ESD STM11.11, and meets audit requirements of ESD TR53: •... - Page 5 PAS-853B Wide Range Ohmmeter A. Modes of Operation There are two main Modes of PAS-853B Operation 1. AUTO mode (Displayed as GO A): Automatically adjusts resistance range, test voltage and Elec- trification Period (EP). Measurements stops at the end of EP, Green LED is On, measurement is displayed for 10 seconds then instrument resets for the next measurement.
-
Page 6: Battery Installation
• Close Cover Philips #1 screw Battery Cover Figure 5: main Power Battery Cut-Off Switch Figure 6: PAS-853B Battery Com- on side of instrument partment on bottom of instrument A. Install test leads or special fixtures as shown: 1. Slide mAin POweR Switch to On 2. - Page 7 These connectors are used for the Prostat® type PRF-912B and PRF-922B microprobe resistance measurement fixtures. Leads supplied with the PAS-853B are specially designed for this instrument. They have superior outer insulation and a high number of stranded conductors to minimize measurement errors.
-
Page 8: Resistance Measurements In Automatic Mode
Long 200 cm leads are supplied for auditing purposes where lead length is physically neces- sary. Long Prostat leads will allow the instrument to perform within its targeted perfor- mance. Figure 9: The shield is connected to the me-... -
Page 9: Electrification Period In Auto/Go A Mode
(EP) to insure an accurate representation of the material under test. The PAS-853B measurement process is quite fast and once a measurement is stable in the LCD, the operator may elect to use the stable displayed measurement. In this case the EP is manually deter- mined by the operator. -
Page 10: Null Adjustment For Lead Resistance
LCD. This is especially impor- tant when making low resistance measurements less than 1.0 or 2.0 ohms. Two 200 cm Prostat leads have a combined resistance of approximately <0.35 ohms. - Page 11 D. To adjust the PAS-853B to compensate for lead resistance connect the leads to the instrument and then short the leads together using the supplied shorting connector (shunt). The instrument should be OFF before starting this sequence.
- Page 12 PAS-853B Wide Range Ohmmeter 2. While CAL? is displayed press mOde one time and nULLr? will be displayed. Figure 17: Press mOde to select NULL pro- Figure 18: Press TeST and r nULL displays and starts cess 3. Press TeST briefly so that “r nULL” is displayed in the LCD, which begins the automatic Null ad- justment process.
-
Page 13: Battery Replacement
PAS-853B Wide Range Ohmmeter 5. Once the lead resistance is stored in memory, the unit restarts. During startup the instrument firmware ID version is displayed when the instrument is ready to take measurements Go A is displayed. Figure 20: Firmware version... -
Page 14: User Adjustments & Maintenance
This warranty extends only to the original buyer or end-user customer of a Prostat Authorized Reseller, and does not apply to fuses, disposable batteries or to any product which, in Prostat’s opinion, has been misused, altered, neglected or damaged by accident or abnormal conditions of operation or handling. - Page 15 PAS-853B Wide Range Ohmmeter Out of warranty Repairs Prostat expressly warrants that for a period of 90 Days from the date of repair, by Prostat, instru- ments and products will be free of defects in material (parts) and workmanship (labor). If Pros- tat receives notice of such defect during the warranty period, Prostat will replace or repair at its expense such parts which it determines to be defective.
-
Page 16: General Specifications
- When data in hOLd, press mOde to terminate hOLd without changing operational mode - Press mOde with TeST to change from Auto to Continuous - Used to measure lead resistance (NULL) - Used by Prostat Authorized Technicians for Voltage Calibration COnneCTiOnS Positive (+) Test Voltage (RED) –... - Page 17 PAS-853B Wide Range Ohmmeter TYPiCAL TOLeRAnCeS Nominal performance by range: 0.01E- 1 – 1.0E 0 Ω <±10%, ±2 Counts 1.0E 0 – 9.99E10 Ω <±2%, ±2 Counts 1.0E11 – 9.99E12 Ω <± 10%, ±4 Counts TeST VOLTAgeS Automatically selected and controlled in AUTO mode. May be manually selected by pressing mOde pad in the following order: •...
- Page 18 PAS-853B Wide Range Ohmmeter nOTeS Rev. A / February 2016...
- Page 19 PAS-853B Wide Range Ohmmeter nOTeS Rev. A / February 2016...
- Page 20 PAS-853B Wide Range Ohmmeter nOTeS Rev. A / February 2016...
- Page 21 PAS-853B Wide Range Ohmmeter nOTeS Rev. A / February 2016...
- Page 22 PAS-853B Wide Range Ohmmeter nOTeS Rev. A / February 2016...
- Page 24 Specifications are subject to change without notice. All Prostat trademarks and trade names are the property of Prostat Corporation. All other trademarks and trade names are the property of their respective companies. P R O F E S S I O N A L...
