Congratulations on purchasing the DGW-521 the most popular automation solution for
remote monitoring and control applications. This Quick Start Guide will provide
information needed to get started with the DGW-521. Please also consult the User
Manual for detailed information on the setup and use of the DGW-521.
In addition to this guide, the shipping box includes the following items:

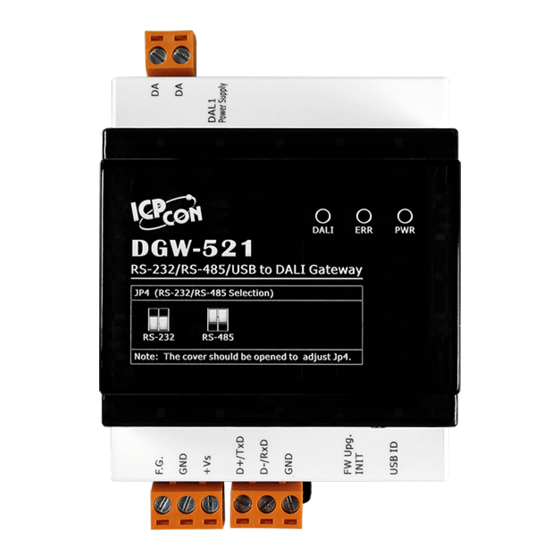

DGW-521
ICP DAS Website
http://www.icpdas.com/
Copyright © 2014 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com
Software Utility CD
Quick Start Guide
for DGW-521
Mar. 2014, Version 1.00
Quick Start
1
Advertisement
Related Manuals for ICP DAS USA DGW-521
Summary of Contents for ICP DAS USA DGW-521
-
Page 1: Quick Start Guide
Congratulations on purchasing the DGW-521 the most popular automation solution for remote monitoring and control applications. This Quick Start Guide will provide information needed to get started with the DGW-521. Please also consult the User Manual for detailed information on the setup and use of the DGW-521. -
Page 2: Specifications
---------------------------------------------------------------------------------- Understanding the Hardware Specifications Before installing the hardware, you should have a basic understanding of hardware specification and the wiring diagrams. Specifications： ： ： ： Interface Connector 2-pin Terminal Block Baud Rate (bps) 1200 DALI Isolation 1500 DC 16 ±... - Page 3 Humidity 10 %~ 95% RH, Non-condensing Pin Assignment： ： ： ： -------------------------------------------- Booting the DGW-521 in Init Mode Make sure the INIT switch placed in the “ON” position. Copyright © 2014 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...
- Page 4 --------------------------------------------------------------------------------- Connecting to the PC and the Power Supply The DGW-521 series is equipped with an RS-485 port for connection to a 232/USB converter to PC Connect to the PC using an RS-485 Converter RS-232 Power Supply Connect to PC...
- Page 5 ---------------------------------------------------------------------------------- Using the DCON Utility to Initialize the DGW-521 Module The DGW-521 based on the DCON protocol, meaning that you can use the DCON Utility to easily initialize it. Step 1: Run the DCON Utility Copyright © 2014 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...
- Page 6 N,8,1 Step 3: Search for the DGW-521 module Click “Start Search” button from the toolbox to search for the DGW-521 module. After the DGW-521 module is displayed in the list, click “Stop Search” button. Copyright © 2014 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...
- Page 7 Start Search Stop Search Step 4: Connect to the DGW-521 After clicking on the name of the module in the list, a dialog box will be displayed. Step 5: Initialize the DGW-521 module Set the “Address” field in the dialog box to 1 and then click “Setting” button to save the settings.
- Page 8 ---------------------------------------------------------------------------------- Starting the Module Operation After rebooting the DGW-521 module, search for the module to make sure the settings have been changed. You can double click on the name of the module in the list to open the configuration dialog box.
