Owner's Manual &
Technical Information (RTF)
Specification
Wingspan: ..................... 408mm (16.0")
Length: .......................... 318mm (12.5")
All-up weight: ................ 40g (1.41oz)
Battery: ......................... 1S 180mAh LiPo
Motor: ............................ Brushed, geared
Propeller:....................... 5"
Charger: ........................ 1S USB
Transmitter: .................. 3-channel 2.4GHz
On-board electronics: ... 6-axis stabilization
Stability modes: ............ High, Medium, Off
Controls: ........................ Rudder, elevator, throttle
AZSA3150

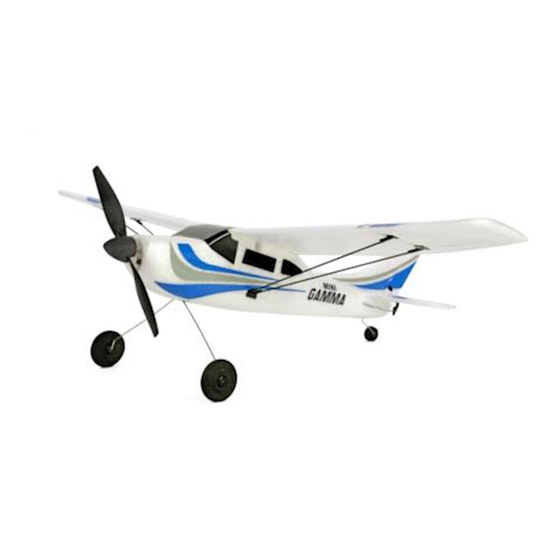

Mini Gamma RTF
AZSA3150M1 Mini Gamma RTF (Mode 1)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ares Mini Gamma AZSA3150
Summary of Contents for Ares Mini Gamma AZSA3150

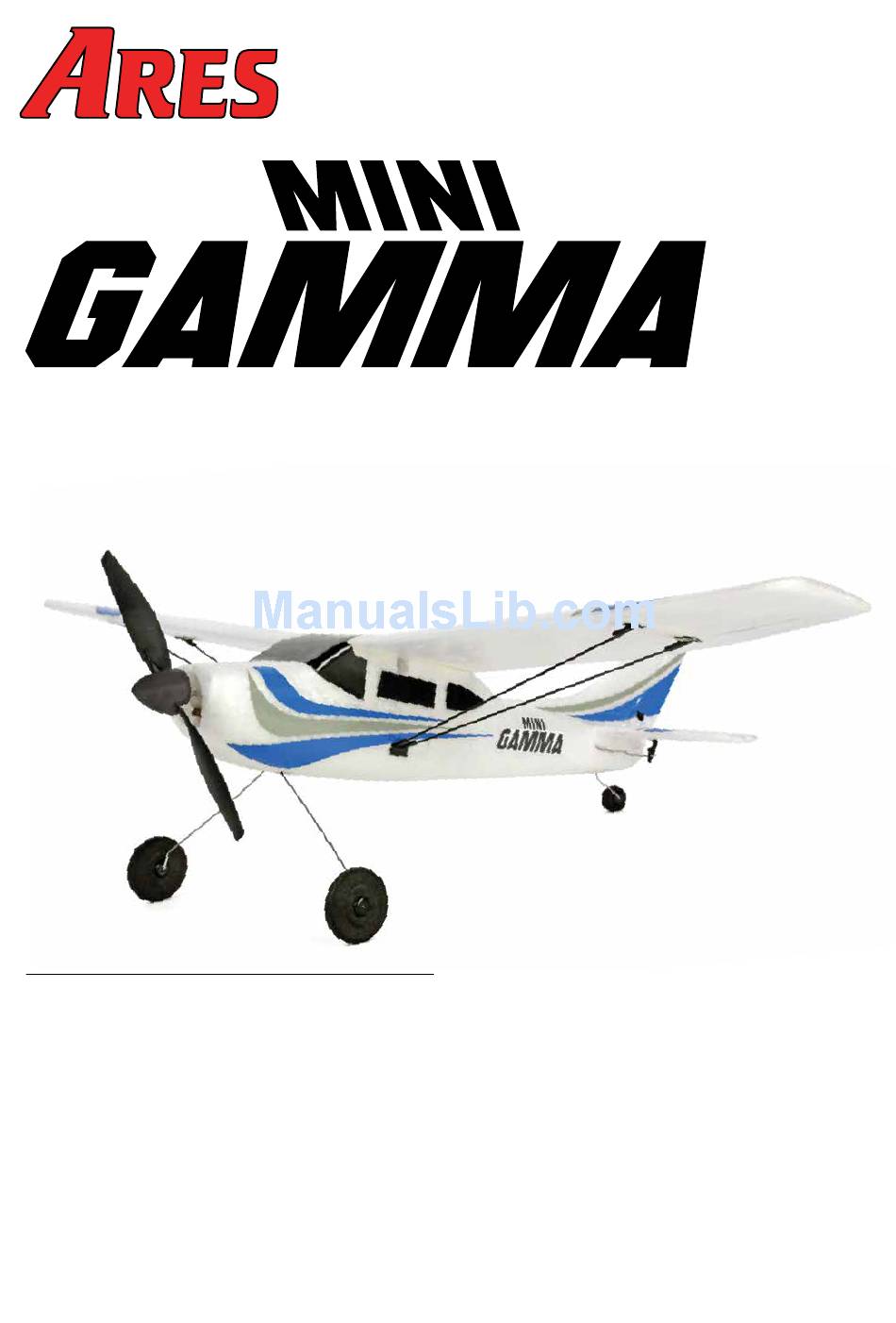

- Page 1 Owner’s Manual & Technical Information (RTF) AZSA3150 Mini Gamma RTF AZSA3150M1 Mini Gamma RTF (Mode 1) Specification Wingspan: ..... 408mm (16.0”) Length: ......318mm (12.5”) All-up weight: ....40g (1.41oz) Battery: ......1S 180mAh LiPo Motor: ......Brushed, geared Propeller:....... 5” Charger: ......
-
Page 2: Table Of Contents
Contents Introduction ................3 FCC Information ................. 3 Safety Precautions ..............3 LiPo Battery Warnings ..............4 Box Contents ................5 Required to Complete ..............5 Transmitter Details (Mode 2)............. 6 Transmitter Details (Mode 1)............. 7 Preparing for Flight ..............8 Flight Stabilization Control ............12 Finding a Flying Field ...............12 Flying Conditions and Experience ...........13... -
Page 3: Introduction
The heavier they are the harder they fall! It’s a fact, and with this in mind the light and versatile Ares Mini Gamma makes perfect sense for anyone seeking a low cost, low commitment introduction to RC model flying. Your hobby budget will rarely return this much fun and performance for such a small investment, not to mention a level of sophistication that’ll have you... -
Page 4: Lipo Battery Warnings
As the user of this product you are solely and wholly responsible for operating it in a manner that does not endanger yourself and others or result in damage to the product or the property of others. This model is controlled by a radio signal that is subject to possible interference from a variety of sources outside your control. -
Page 5: Box Contents
result in a fire causing property damage and / or personal injury. DO NOT use a NiCd or NiMH charger. • We recommend charging the LiPo in a proprietary, fireproof, dedicated LiPo charge bag. If at any time during the charge or discharge process the battery begins to balloon or swell, discontinue charging or discharging immediately. -
Page 6: Transmitter Details (Mode 2)
Transmitter Details (Mode 2) Note that since the Mini Gamma is a 3-channel model the rudder is controlled using the aileron stick. Antenna Stabilization mode switch LED indicator Throttle / rudder Elevator / stick (note aileron stick that the Mini Gamma’s rudder is controlled by... -
Page 7: Transmitter Details (Mode 1)
Transmitter Details (Mode 1) Note that since the Mini Gamma is a 3-channel model the rudder is controlled using the aileron stick. Antenna Stabilization mode switch LED indicator Elevator / Throttle / rudder stick aileron stick (note that the Mini Gamma’s rudder is controlled by the aileron... -
Page 8: Preparing For Flight
Preparing for Flight 1. Plug the undercarriage into the slot just forward of the battery bay and push it right home. 2. Remove the transmitter battery cover and insert four AA alkaline batteries making sure to observe the correct polarity. For guidance the cell orientation is indicated inside the battery box. - Page 9 On connection of a discharged battery the red LED on the charger will illuminate. A discharged battery will be charged in approximately 60 minutes and can be seen to be fully charged when the red LED light turns off. When this happens the battery is ready to use and can be disconnected from the charge lead.
- Page 10 8. In the unlikely event that the trim buttons are not sufficient to center the control surfaces, use a pair of needle-nose pliers to open or close the gap in the U-section of the pushrod to achieve the same result. 9.
- Page 11 11. Clear the propeller of obstructions and hold the model firmly at the tail with the propeller facing away from you. Arm the motor by raising the throttle stick to full then lowering it to the off position. To confirm that the motor is live the rudder and elevator will temporarily move to the full right and full up position, then return to center.
-
Page 12: Flight Stabilization Control
Flight Stabilization Control The Mini Gamma is equipped with a three-position, 6-axis gyro-assisted flight stabilzation control that reduces the control sensitivity for beginners, limits the airplane’s angle of bank and helps dampen the effects of wind and turbulence during a flight. The three positions are: 0 –... -
Page 13: Flying Conditions And Experience
Flying Conditions and Experience It is typically best to fly on days that are calm, especially when learning. When learning to fly even light winds can make things difficult and can even carry the model beyond your range of vision. When you have properly trimmed the airplane in calm conditions and become familiar with its handling and capability you will be able to fly it in light winds of up to 7mph. -
Page 14: Propeller Replacement
Propeller Replacement Do not attempt to fly your Mini Gamma with a damaged or broken propeller. In the event that you damage the propeller, replace it with a new one using the following procedure: • Disconnect the battery from the airplane. •... -
Page 15: Replacement Parts
Replacement Parts AZSA3151 Fuselage AZSA3152 Wing and tail set AZSA3153 Wing strut set AZSA3154 Window decals AZSA3155 Landing gear AZSA3156 Spinner AZSA3157 Propeller 5” AZSA3158 Pushrod set AZSA3159 Servo horn set AZSA3160 Motor and gearbox AZSA3161 180mAh 3.7V LiPo AZSA3162 4 in 1 control unit AZSA3163 2.4GHz transmitter... - Page 16 - Waste Electrical and Electronic Equipment Directive 2002/96/EG). You should take unwanted electrical equipment to your nearest local authority waste collection point or recycling centre. Distributed in the UK by: J Perkins Distribution Ltd, Lenham, Kent, ME17 2DL. www.jperkins.com www. Ares-RC.com REV- 000...
