Summary of Contents for Viotek NB27C

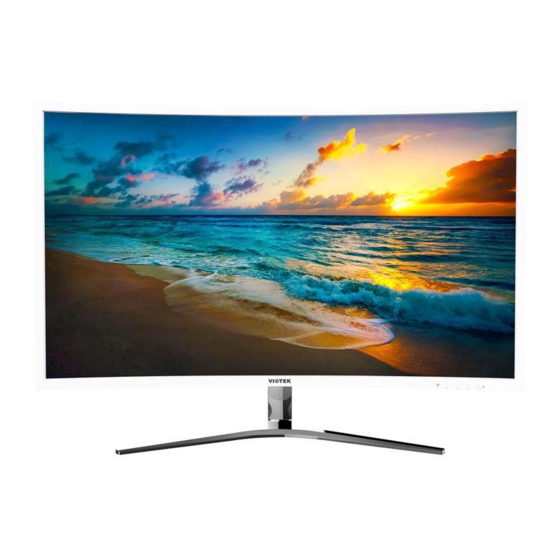

- Page 1 CURVED LED MONITOR USER’S MANUAL NB27C...
- Page 2 Viotek shall not be held responsible for injury or damage of products or persons due to failure to adhere to the aforementioned precautions or any others noted hereafter.
- Page 3 Box Contents 1x Monitor 1x Power Cable (AC 100-240V 50/60Hz) 1x VGA Video Cable 1x Warranty Card 1x User manual Basic Setup Insert one end of the VGA video cable into your PC’s graphics card. DVI or HDMI may also be used, cables not included. Connect the other end of the video cable to the corresponding connector on your monitor.
- Page 4 Control Panel The Control Panel is located at the corner of the monitor. Its labels are on the front of the monitor while its buttons are located directly under the labels on the bottom edge. The Control Panel is used in combination with the OSD Menu to adjust the monitor settings.
-
Page 5: Adjustment Settings
Adjustment Settings Main Menu Main Menu Submenu Submenu Options Description Item Icon Item Brightness NONE Adjusts brightness Contrast NONE Adjusts contrast STANDARD Best for overall use. Best for reading and TEXT writing. BRIGHTNESS GAME Best for games. MOVIE Best for movies. Enables DCR Disables DCR Adjust horizontal... - Page 6 Main Menu Main Menu Submenu Submenu Item Description Item Icon Options Selects the OSD menu language (English, French, German, LANGUAGE NONE Simplified Chinese, Italian, Spanish, Portuguese, Turkish, Polish, Dutch, Russian, Korean) OSD H.POSITION NONE Adjusts OSD Horizontal position OSD SETTING OSD V.POSITION NONE Adjusts OSD Vertical position...
-
Page 7: Troubleshooting
Troubleshooting The screen is blank. Be sure the power button has been pressed to turn the monitor on. Confirm the brightness and contrast settings are set normally Check if the Indicator Light is flashing, if so, this indicates there is no signal from your video source ... -
Page 8: Compatible Resolutions
Compatible Resolutions 19.5” Series 18.5” Series H-Frequency V-Frequency Resolution H-Frequency V-Frequency Resolution (KHz) (Hz) (KHz) (Hz) 720x400 31.47 70.0 720x400 31.47 70.0 640x480 31.47 60.0 640x480 31.47 60.0 640x480 37.86 72.8 640x480 37.86 72.8 640x480 37.50 75.0 640x480 37.50 75.0 800x600 37.87 60.0... -
Page 9: Specifications
If a hardware defect arises and a valid claim is received within the warranty period, at its option and to the extent permitted by law, Viotek will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;... - Page 10 ANY TERM(S) IS HELD ILLEGAL OR UNENFORCEABLE, THE LEGALITY AND ENFORCEABILITY OF THE REMAINING TERMS SHALL NOT BE AFFECTED OR IMPAIRED. EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW, VIOTEK IS NOT RESPONSIBLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION OR PERFORMANCE OF THE PRODUCT, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE;...
- Page 11 “Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules.
