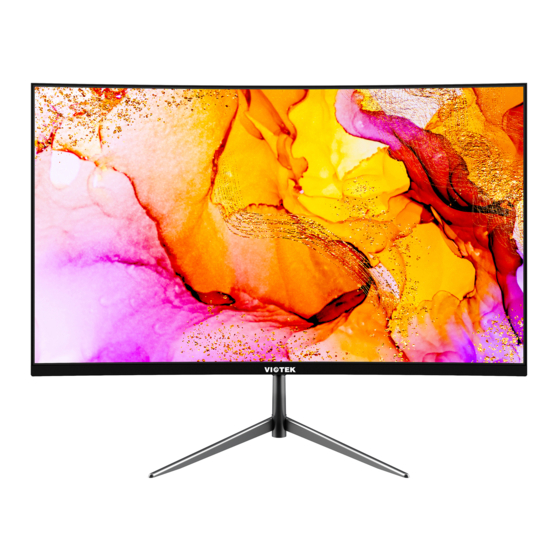

- Page 1 NBV24CB2 GAMING MONITOR USER MANUAL In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials.
-
Page 3: Table Of Contents
Table of Contents Section 1: Safety Precautions ............. 4 Section 2: Box Contents .............. 5 Section 3: Product Overview ............6 3.1 – Monitor Buttons ............... 6 3.2 – Monitor Ports ..............6 Section 4: Stand Installation ............7 Section 5: Basic Operation ............8 Section 6: Indicator Light ............ -
Page 4: Section 1: Safety Precautions
® VIOTEK shall not be held responsible for injury or damage of products or persons due to failure to adhere to the aforementioned precautions or any others noted hereafter. -
Page 5: Section 2: Box Contents
Section 2: Box Contents Monitor x 1 Stand Base x 1 NO.1 Screws x 4 Stand Stem x 1 (for Stand Installation) HDMI Cable x 1 Power Adapter x 1 User Manual x 1... -
Page 6: Section 3: Product Overview
Section 3: Product Overview 3.1 – Monitor Buttons M Menu Button: Press to display the OSD menu or enter sub-menus. Down Button: Press to move down in the menus. Up Button: Press to move up in the menus. E Exit Button: Press to exit. Power Button: Press to turn the monitor on/off. -
Page 7: Section 4: Stand Installation
Section 4: Stand Installation Keep the foam underneath the monitor before attaching the stand. 1. Open the package and take out the monitor with foam still attached. Gently place it top-down on a desktop or table. 2. Take out the stem and base. Use a screwdriver (not included) and the included one screw to fasten base to the stem. -
Page 8: Section 5: Basic Operation
Section 5: Basic Operation 1. Insert one end of the HDMI cable (included) into your PC’s graphics card. A VGA cable (not included) may also be used. 2. Connect the other end of the cable to the corresponding port on your monitor. VGA Port HDMI Port Audio Out... -
Page 9: Section 7: Osd
Section 7: OSD The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s standard configuration settings. -
Page 10: Osd Menu Functions
7.1 – OSD Menu Functions Main Menu Sub-Menu Options Description Brightness 0~100 Adjust display brightness Contrast 0~100 Adjust display contrast Standard, EYES, Game, RTS, Set visual mode Luminance FPS, Movie Turn on DCR function Turn off DCR function Image Setup Image Ratio Wide, 4:3 Set aspect ratio... -
Page 11: Section 8: Eco Modes And Gameplus
Section 8: ECO Modes and Gameplus 1. Press button to switch ECO modes. These modes (Standard, EYES, Game, RTS, FPS, Movie) can be used to optimize settings according to your activity. Standard mode is suitable for most activities. 2. Press to enter volume screen to adjust volume directly. - Page 12 The screen appears to be scrolling, rolling, or moving unusually. • Check that your source frequency is within 60Hz. • Reconnect and ensure your video cable is secure. The monitor needs cleaning • Make sure the monitor has been powered off before cleaning. •...
-
Page 13: Section 10: Specifications
Warranty services are provided by Viotek Warranty Pro (“WP”). If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, WP will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;... - Page 14 This Warranty is not assignable or transferable. The original purchaser may call WP’s toll-free number at 1-855-229-9472 for service requests. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes WP’s property. This warranty only covers technical hardware defectiveness during the warranty period and under normal use conditions.
- Page 16 COPYRIGHT © 2021 VIOTEK. ALL RIGHTS RESERVED.
