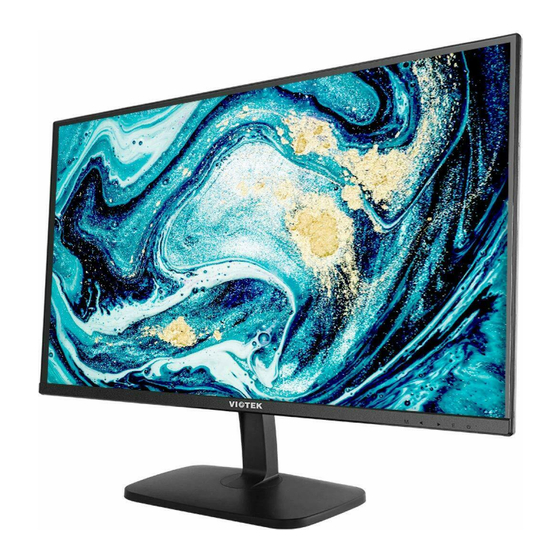

H270
LED MONITOR
USER MANUAL
In order to continue serving our customers and providing the best products, our product information
including our user manuals may receive updates from time to time. Please check our website for the
latest user manuals and product materials.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H270 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viotek H270

Summary of Contents for Viotek H270

  • Page 1 H270 LED MONITOR USER MANUAL In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials.

  • Page 3: Table Of Contents

    Table of Contents Section 1: Safety Precautions ............. 4 Section 2: Box Contents .............. 4 Section 3: Product Overview ............5 3.1 – Monitor Buttons ............... 5 3.2 – Monitor Ports ..............5 Section 4: Stand Installation ............6 Section 5: Wall Mounting ............. 7 Section 6: Connectivity Options ..........

  • Page 4: Section 1: Safety Precautions

    VIOTEK shall not be held responsible for injury or damage of products or persons due to ®...

  • Page 5: Section 3: Product Overview

    Section 3: Product Overview 3.1 – Monitor Buttons M Menu Button: Press to display the OSD menu or enter sub-menus. Button: Press to move down in the menus. Button: Press to move up in the menus. E Exit Button: Press to exit current menu. Power Button: Press to turn the monitor on/off.

  • Page 6: Section 4: Stand Installation

    Section 4: Stand Installation 1. Open the package, take out the product with the foam still attached, and gently place it on a desktop or table. 2. Take out the two parts of the stand and remove the foam covering the back of the monitor. Attach the stem to the base by inserting it into the opening and turning it to lock it in place.

  • Page 7: Section 5: Wall Mounting

    Section 5: Wall Mounting VESA and/or mounting accessories not included. 1. Open the package, take out the product with the foam still attached, and gently place it on a desktop or table. If the monitor is attached to the stand, remove the stand.

  • Page 8: Section 6: Connectivity Options

    Section 6: Connectivity Options 6.1 – Connecting the Power Cable Connect the included power cable into the DC IN port in the back of the monitor, then plug the other end into a wall outlet. Power Cable 6.2 – VGA Connectivity In order for the monitor to receive VGA signals from the computer, use the VGA cable to connect the monitor to the computer.

  • Page 9: Section 7: Basic Operation

    Section 7: Basic Operation Insert one end of the HDMI cable into your PC’s graphics card. VGA may also be used. VGA cable not included. For optimal refresh rate (or “performance”), it is recommended to use an HDMI cable with the monitor’s corresponding connector.

  • Page 10: Section 9: Osd Setup

    Section 9: OSD Setup The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration and parts etc.

  • Page 11: Osd Menu Functions

    9.1 – OSD Menu Functions Main Menu Sub-Menu Options Description Brightness 0~100 Adjust display brightness Contrast 0~100 Adjust display contrast Standard Best for overall use Text Best for reading and writing Brightness Game Best for games Movie Best for movies Turn on DCR function Turn off DCR function Adjust the picture horizontal...

  • Page 12: Section 10: Troubleshooting

    Section 10: Troubleshooting The screen is blank • Press power button to turn the monitor on. • Confirm the brightness and contrast settings are set normally. • Check if the Indicator Light is flashing. If so, there is no signal from your video source. •...

  • Page 13: Section 11: Specifications

    Section 11: Specifications Item Detail Model Number H270 Screen Size 27’’ Viewing Angle 170° (H)/160° (V) Aspect Ratio 16:9 Resolution 1920x1080p LED Indicator Power on: Blue (LED); Power saving : Blue Flicker (LED) Typical Brightness 220 cd/m (Typical) Default Color Temperature...

  • Page 14: Section 12: 1 Year Limited Hardware Warranty

    Section 12: 1 Year Limited Hardware Warranty Your VIOTEK H270 Monitor (“Product”) includes a One Year Limited Hardware ® Warranty (“Warranty”). The Warranty covers product defects in materials and workmanship under normal use. This Warranty is limited to residents of the United States and Canada only and is available only to original purchasers.
  • Page 15 SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY.
  • Page 16 COPYRIGHT © 2017 VIOTEK. ALL RIGHTS RESERVED.
