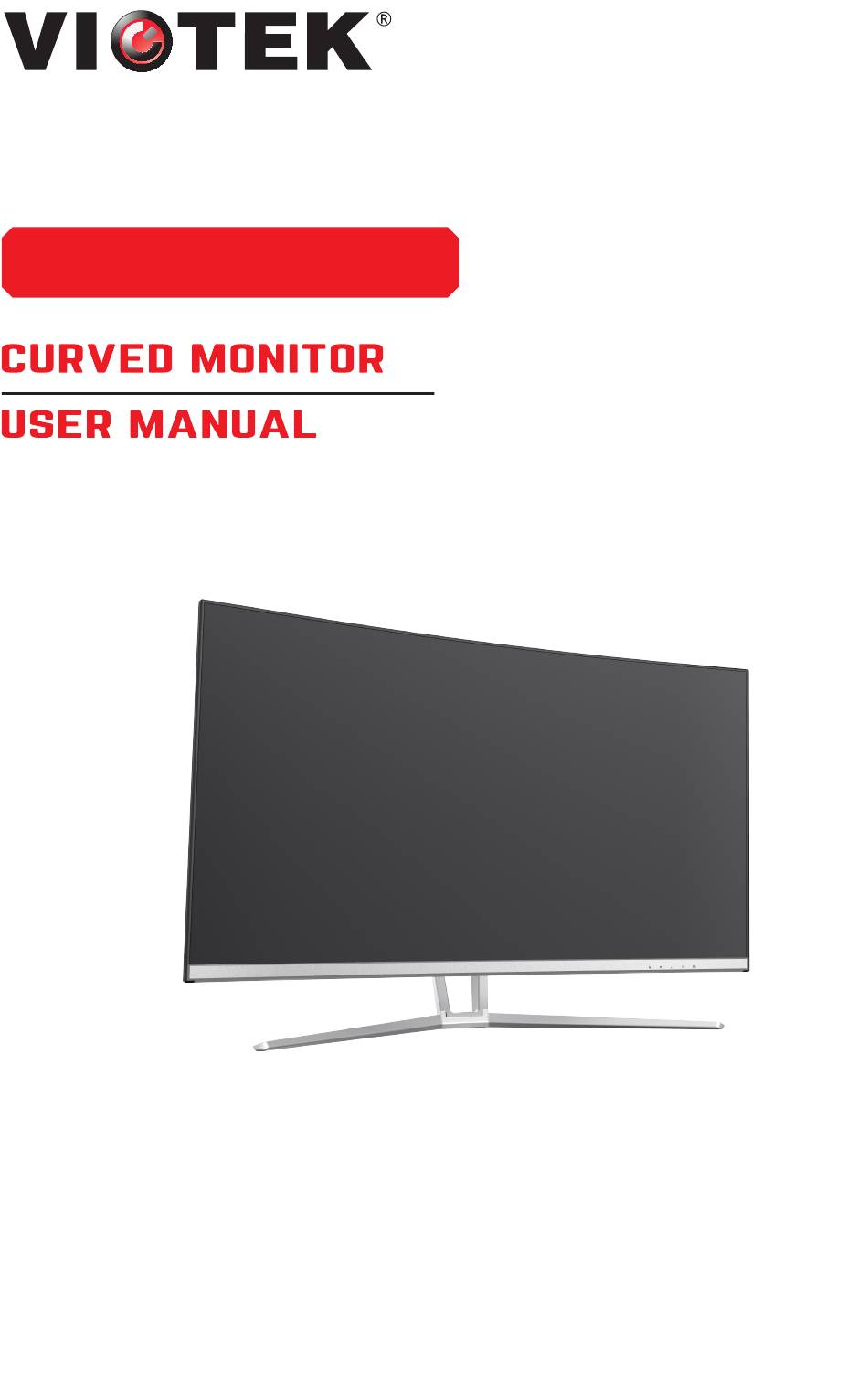

- Page 1 NB32CW/NB32CB In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials. ver.3.0 2/21/19...
-
Page 3: Table Of Contents
Table of Contents Section 1: Safety Precautions ..........4 Section 2: Box Contents ............. 5 Section 3: Product Overview ..........6 3.1 – Monitor Buttons ............6 3.2 – Monitor Ports ............6 Section 4: Stand Installation ..........7 Section 5: Mount Installation ..........8 Section 6: Connectivity Options ........ -
Page 4: Section 1: Safety Precautions
VIOTEK shall not be held responsible for injury or damage of products or persons ®... -
Page 5: Section 2: Box Contents
Section 2: Box Contents Monitor x 1 Stand Stem x 1 Stand Base x 1 K-Head P-Head NO.1 Screws x 7 NO. 2 Screws x 4 (for Stand Installation) (for Mounting) HDMI Cable x 1 Power Cable x 1 (AC 100-240V, 50/60Hz) Screwdriver x 1 User Manual x 1 •... -
Page 6: Section 3: Product Overview
Section 3: Product Overview 3.1 – Monitor Buttons Power Connector: Insert the power cable to supply power to the monitor. M Menu Button: Press to display the OSD menu or enter sub-menus. Down Button: Press to move down in the menus. Up Button: Press to move up in the menus. -
Page 7: Section 4: Stand Installation
Section 4: Stand Installation Keep the foam underneath the monitor before attaching the stand. 1. Open the package and take out the monitor with foam still attached. Gently place it on a desktop or table. Next, use the included screwdriver and three NO.1 P-Head screws to fasten the base to the stem. -
Page 8: Section 5: Mount Installation
Section 5: Mount Installation This monitor ONLY includes screws that may be used when attaching the monitor to a VESA 75 x 75mm type mount. No VESA mount or mounting accessory is included. Keep the foam underneath the monitor before attaching the stand to a mount or accessory. -
Page 9: Section 6: Connectivity Options
Section 6: Connectivity Options 6.1 – Removing the Port Cover Before connecting any cables, remove the port cover first. Port Cover Back of Monitor 6.2 – Connecting Your Earphones Plug in your earphones to receive the audio signals from your monitor. Earphones (Not included) After pluging in the earphones, you can use the clip on the back of the stand stem to conveniently manage cables or store your headphones. -
Page 10: Connecting The Power Cable
6.3 – Connecting the Power Cable Connect the included power cable to the power connector, and then plug the other end into a wall outlet. Power Cable 6.4 – VGA Connectivity In order for the monitor to receive VGA signals from the computer, use a VGA cable to connect the monitor to the computer. -
Page 11: Section 7: Basic Operation
Section 7: Basic Operation When connecting or disconnecting any cables, remove the port cover first. Refer to Section 6.1. 1. Insert one end of the HDMI cable into your PC’s graphics card. A VGA cable may also be used. A VGA cable is not included. 2. -
Page 12: Section 9: Osd
Section 9: OSD The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration and parts etc. -
Page 13: Osd Menu Functions
9.1 – OSD Menu Functions Main Menu Sub-Menu Options Description BRIGHTNESS Brightness 0~100 Adjust display brightness Contrast 0~100 Adjust display contrast Standard, Game, Set visual mode RTS, FPS, Movie, Text Turn on DCR function Turn off DCR function IMAGE Aspect Wide, Auto, 4:3 Set aspect ratio COLOR TEMP. -
Page 14: Section 10: Eco Modes And Gameplus Switching
Section 10: ECO Modes and Gameplus Switching 1. Press any one of the buttons (M, , , E, ) to activate the navigation window. 2. Press to switch Gameplus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios. -
Page 15: Section 11: Troubleshooting
Section 11: Troubleshooting The screen is blank • Press the power button to turn the monitor on. • Confirm the brightness and contrast settings are set normally. • Check if the indicator light is flashing. If so, this indicates there is no signal from your video source. -
Page 16: Section 12: Specifications
• Please adjust Clock or Auto settings. Color difference (colors are not optimized) • Adjust RGB colors or reset color temperature. Section 12: Specifications Item Detail Model Number NB32CW/NB32CB Screen Size 31.5’’ Curvature 1800R Viewing Angle 178° (H)/178° (V) Aspect Ratio... -
Page 17: Section 13: 1 Year Limited Hardware Warranty
Section 13: 1 Year Limited Hardware Warranty Your VIOTEK NB32CW/NB32CB Curved Monitor (”Product”) includes a One Year ® Limited Hardware Warranty (“Warranty”). The Warranty covers product defects in materials and workmanship under normal use. This Warranty is limited to residents of the United States and Canada only and is available only to original purchasers. - Page 18 SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY.
- Page 20 COPYRIGHT © 2019 VIOTEK. ALL RIGHTS RESERVED.
