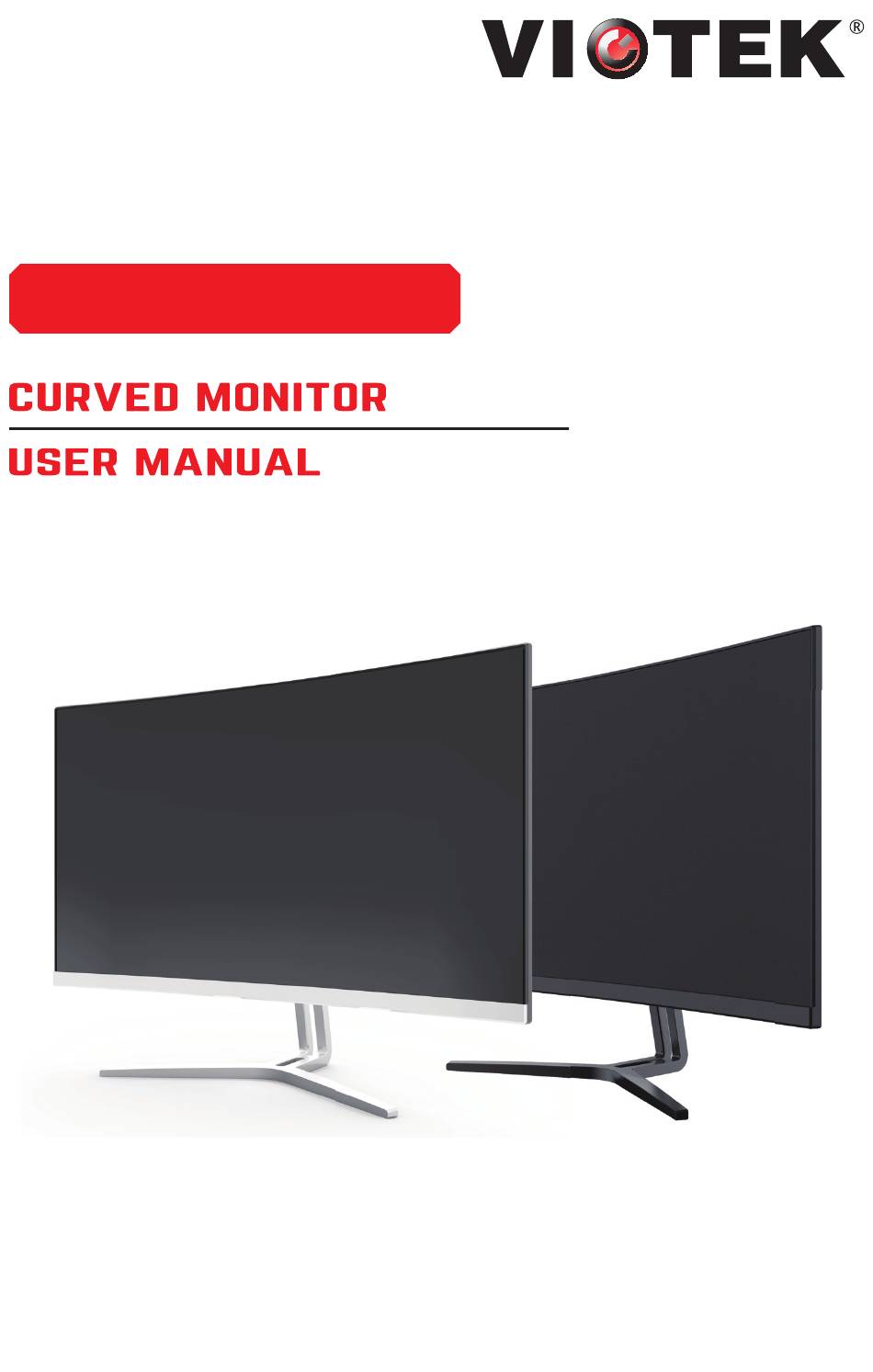

- Page 1 NB24CW/NB24CB In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials. Ver 1.0 05/25/18...
-
Page 3: Table Of Contents
Table of Contents Section 1: Safety Precautions ............. 4 Section 2: Box Contents .............. 5 Section 3: Product Overview ............6 3.1 – Monitor Buttons ............... 6 3.2 – Monitor Ports ..............6 Section 4: Stand Installation ............7 Section 5: Mount Installation ............8 Section 6: Connectivity Options .......... -
Page 4: Section 1: Safety Precautions
VIOTEK shall not be held responsible for injury or damage of products or persons ®... -
Page 5: Section 2: Box Contents
Section 2: Box Contents Monitor x 1 Stand Stem x 1 Stand Base x 1 HDMI Cable x 1 NO.1 Screws x 2 NO. 2 Screw x 2 VESA Adapter x 1 Power Adapter x 1 Screwdriver x 1 User Manual x 1 (100-240V 1.0A) The screws come in two sizes, 6mm x 2 and 8mm x 2. -
Page 6: Section 3: Product Overview
Section 3: Product Overview 3.1 – Monitor Buttons M Menu Button: Press to display the OSD menu or enter sub-menus. Down Button: Press to move down in the menus. Up Button: Press to move up in the menus. E Exit Button: Press to exit. Power Button: Press to turn the monitor on/off. -
Page 7: Section 4: Stand Installation
Section 4: Stand Installation Keep the foam underneath the monitor before attaching the stand. 1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table. 2. Take out the two parts of the stand, and remove the foam covering the back of the monitor. -
Page 8: Section 5: Mount Installation
Section 5: Mount Installation This monitor ONLY includes screws which may be used when attaching the monitor to a VESA 75x75mm type mount. No VESA mount or mounting accessory is included. Keep the foam underneath the monitor before attaching the stand to a mount or accessory. -
Page 9: Section 6: Connectivity Options
Section 6: Connectivity Options 6.1 – Connecting the Power Cable Connect the included power adapter to the power connector, and then plug the other end into an wall outlet. Power Adapter 6.2 – VGA Connectivity In order for the monitor to receive VGA signals from the computer, use the VGA cable to connect the monitor to the computer. -
Page 10: Section 7: Basic Operation
Section 7: Basic Operation 1. Insert one end of the HDMI cable into your PC’s graphics card. A VGA cable may also be used. A VGA cable is not included. 2. Connect the other end of the cable to the corresponding connector on your monitor. -
Page 11: Section 9: Osd
Section 9: OSD The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration and parts etc. -
Page 12: Osd Menu Functions
9.1 – OSD Menu Functions Main Menu Sub-Menu Options Description BRIGHTNESS Brightness 0~100 Adjust display brightness Contrast 0~100 Adjust display contrast Standard, Game, Set visual mode RTS, FPS, Movie, Text Turn on DCR function Turn off DCR function IMAGE Aspect Wide, Auto, 4:3 Set aspect ratio COLOR TEMP. -
Page 13: Section 10: Eco Modes And Gameplus Switching
Section 10: ECO Modes and Gameplus Switching 1. Press any one of the buttons (M, , , E, ) to activate the navigation window. 2. Press button to switch Gameplus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios. -
Page 14: Section 11: Troubleshooting
Section 11: Troubleshooting The screen is blank • Press the power button to turn the monitor on. • Confirm the brightness and contrast settings are set normally. • Check if the indicator light is fl ashing. If so, this indicates there is no signal from your video source. -
Page 15: Section 12: Specifications
• Please adjust Clock or Auto setting. Color difference (colors are not optimized) • Adjust RGB color or reset color temperature. Section 12: Specifications Item Detail Model Number NB24CW/NB24CB Screen Size 23.6’’ Curvature 1800R Viewing Angle 178° (H)/178° (V) Aspect Ratio... -
Page 16: Section 13: 1 Year Limited Hardware Warranty
Section 13: 1 Year Limited Hardware Warranty Your VIOTEK NB24CW/NB24CB Curved Monitor (”Product”) includes a One Year ® Limited Hardware Warranty (“Warranty”). The Warranty covers product defects in materials and workmanship under normal use. This Warranty is limited to residents of the United States and Canada only and is available only to original purchasers. - Page 17 THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY. DECLARATION OF CONFORMITY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 20 COPYRIGHT © 2018 VIOTEK. ALL RIGHTS RESERVED.
