Start Up

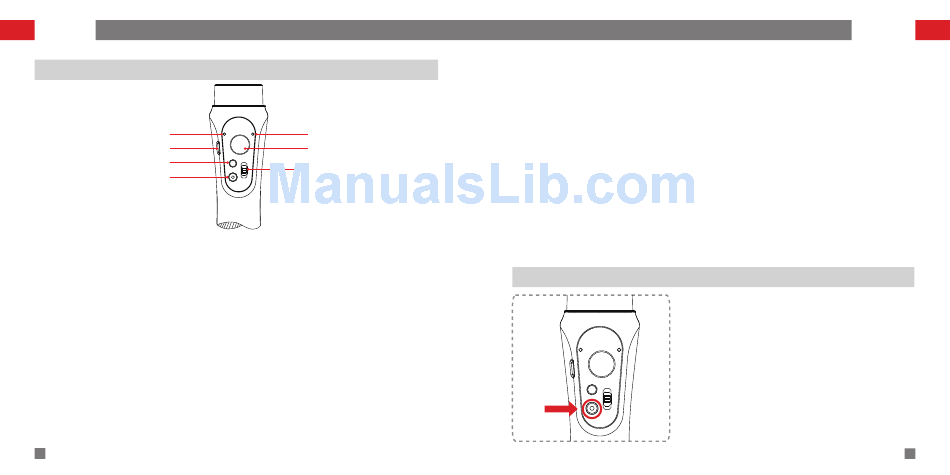

Control Panel Introduction
Bluetooth Indicator
Micro USB Port
MODE
ON/OFF
Joystick Operation
Joystick controls the smartphone movement when pushed or pulled up/down and
left/right.
Power ON/OFF
Power on the stabilizer by pressing the Power button for about 3 sec.
The Power button is used for camera shooting controls when paired to the Mobile APP.
Bluetooth Indicator
1.Unpaired: Quick continuous flashing
2.Paired: Solid light
MODE Button
The stabilizer enters Pan Following Mode by default each time when powered on. Switch
into Locking Mode by single pressing on the MODE button. Double press the MODE
button to enter the Following mode. Single press the MODE button under the Following
Mode will return to the previous mode.
13 zhiyun-tech.com
Batter y Level Indicator
Joystick
Shifter Lever
Shifter Lever Operation
When connected to the smartphone with the APP on, push the Shifter Lever up/down to
adjust the focal length.
Micro USB Port
Connect the stabilizer with a USB power source using a Micro USB cable for charging.
Connect the stabilizer with a computer using a Micro USB cable for firmware upgrade and
on-line calibration.
Batter y Level Indicator
1.Shines YELLOW light when the stabilizer is powered on/off :
a)Quick flash for 3 sec. and shines solid for 1 sec. when powered on.
b)Quick flash for 3 sec. when powered off.
2.Shines BLUE light when the stabilizer is in normal operation, the flashing frequency of
the BLUE light indicates the current batter y level:
a)Quick flash 4 times for batter y level of 76%-100%.
b)Quick flash 3 times for batter y level of 51%-75%.
c)Quick flash 2 times for batter y level of 26%-50%.
d)Quick flash 1 time for batter y level of 1%-25%.
How to Power ON/OFF
Long press the power button for 3 sec. to power on/off.
