Usage of Main Accessories

NOTICE: All accessories hereunder shall be purchased separately.

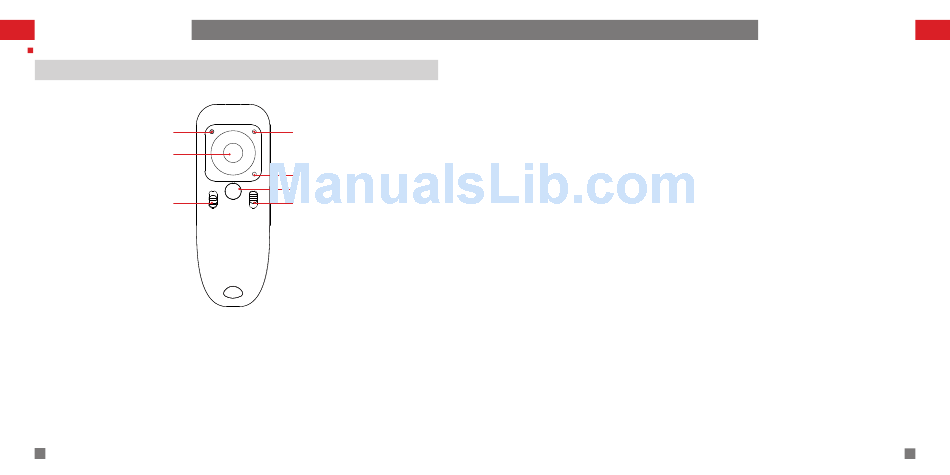

ZW-B01 Wireless Remote Control
Batter y Level Indicator
Joystick
Device Switch
Specifications:
Charging voltage: 5V
Charging current: 100mA
Theoretical work time: ≥50 hr.
Built-in Polymer lithium batter y capacity: 150mAh
Emission and received current: 11.9mA
Operating current: 2.8mA
Effective control distance: 10M /394 inch (without
blockage)
19 zhiyun-tech.com
Bluetooth Indicator
Charging Indicator
Multi-functional Button
Power Switch
Device Switch
Turn up to connect the stabilizer.
Turn down to connect the mobile.
Power Switch
Turn up to power on.
Turn down to power off.
Pairing of Remote Control with the Stabilizer
When using the remote control for the first time, long press the Multi-functional Button
while keeping the remote control near the stabilizer, and at the same time turn the
Power Switch ON. The Bluetooth Indicator shines solid light when pairing is successful.
Batter y Level Indicator
90%-100%: quick flash for 4 times each second.
75%-90%: quick flash for3 times each second.
55%-75%: quick flash for2 times each second.
30%-55%: quick flash for1 time each second.
0%-30%: quick flashing.
Batter y Level Indicator
90%-100%: quick flash for 4 times each second.
75%-90%: quick flash for3 times each second.
55%-75%: quick flash for2 times each second.
30%-55%: quick flash for1 time each second.
0%-30%: quick flashing.
Multi-functional Button
Single press this button to instruct the stabilizer to return to center position when
connected to the stabilizer.
Joystick
For camera movement control and mode switch (operates the same as the joystick of
the stabilizer).
Bluetooth Indicator
No connection: Continuous flashing.
Connected: Shines solid light.
Device switch: Flashes once.
Usage of Main Accessories
Charging Indicator
Charging: RED light.
Charging complete: GREEN light.
