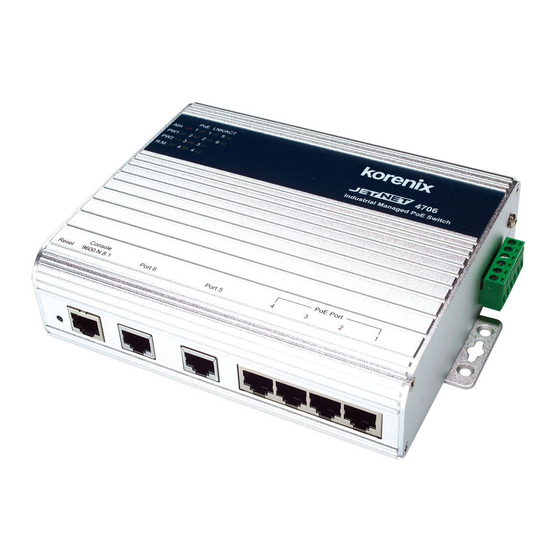

Korenix JetNet 4706 User Manual

Industrial managed poe switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

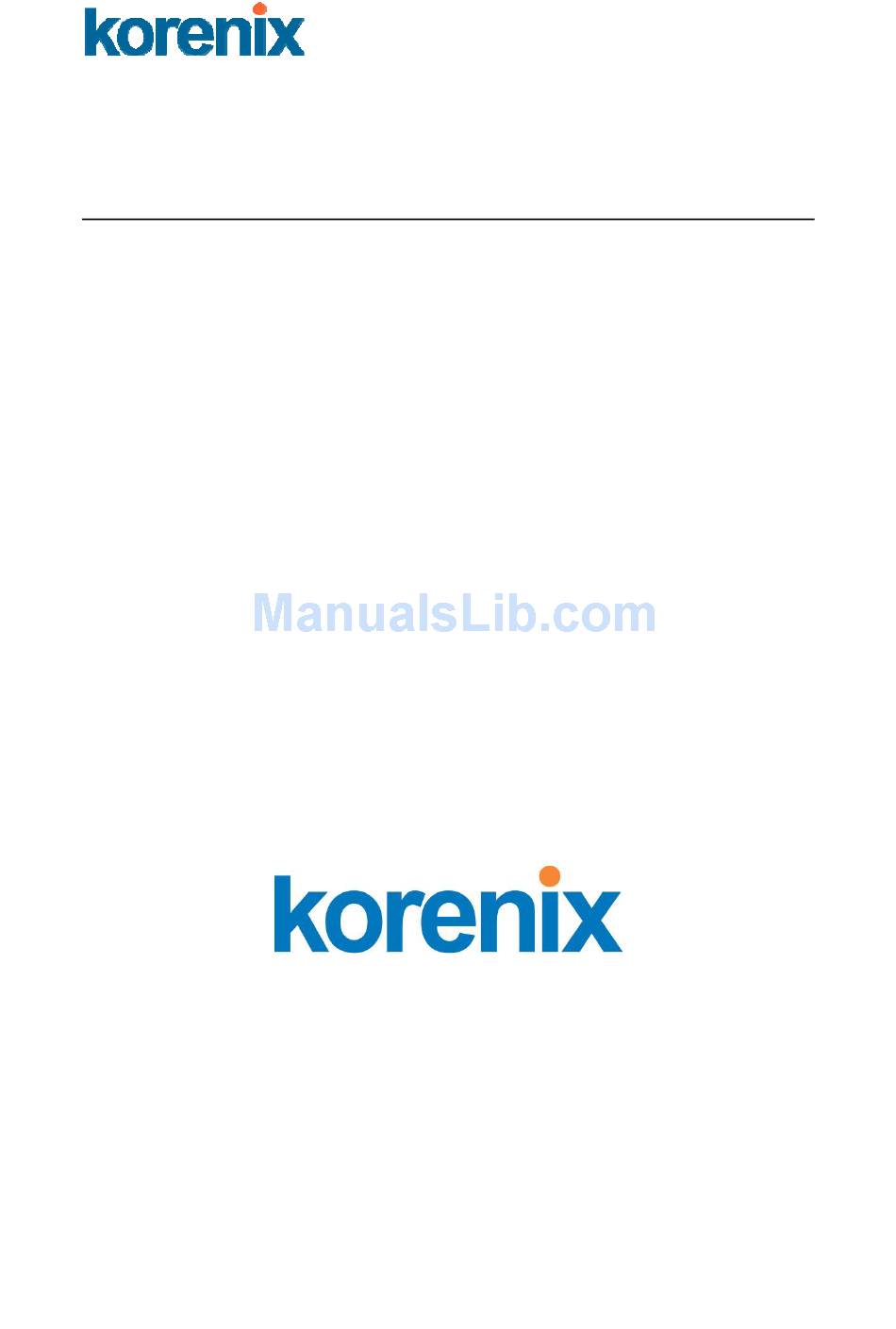

Korenix JetNet 4706/4706f
Industrial Managed PoE Switch

User Manual

Version 2.11, 20-DEC-2010
www.korenix.com
JetNet 4706/4706f Industrial Managed PoE Switch
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JetNet 4706 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Korenix JetNet 4706

Summary of Contents for Korenix JetNet 4706

  • Page 1: User Manual

    Korenix JetNet 4706/4706f Industrial Managed PoE Switch User Manual Version 2.11, 20-DEC-2010 www.korenix.com JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 2 Korenix JetNet 4706/4706f Industrial Managed PoE Switch User Manual Copyright Notice Copyright © 2008 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 3 The user is cautioned that changes and modifications made to the equipment without approval of the manufacturer could void the user's authority to operate this equipment JetNet 4706/4706f Industrial Managed PoE Switch...

  • Page 4: Table Of Contents

    4.13 Device Front Panel............88 4.14 Save to Flash ..............88 4.15 Logout ................90 Appendix ................91 Product Specifications........... 91 Pin Assignment for RS-232 Console Cable ....93 Korenix Private MIB ............93 Revision History ............95 About Korenix ............... 96...

  • Page 5: Introduction

    Ethernet standards and provides 80W PoE high power forwarding capability in 4-PoE ports totally. In order to apply to a non-standard power source system, JetNet 4706/4706f is equipped with dual mode PoE powering mechanisms, which detects power voltage and executes different powering and disconnecting processes.

  • Page 6: Product Features

    Note: Detailed specifications are listed in Appendix 5.1. Package Checklist The Korenix JetNet 4706/4706f includes the following items: One Industrial Managed PoE switch- JetNet 4706 or JetNet 4706f One DIN-Rail clip One wall mounting plate and screws One RS-232 DB-9 to RJ-45 console cable...

  • Page 7: Hardware Installation

    2.7 Wiring RS-232 console cable and pin assignment 2.8 DIN-Rail Mounting Installation 2.9 Wall-Mount Installation Hardware Introduction Dimensions JetNet 4706/4706f Industrial Gigabit Switch dimensions: 174.8mm W x 46.5mm H x 136mm D (6.98”W x 1.82”H x 5.31”D) JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 8 Mylar Layout There is one Mylar stick on the top side of the JetNet 4706/4706f. It includes four LEDs for the system alarm, power, and Ring Master; and ten LEDs for the port operating status. For details, please check the following figure Mylar Layout.

  • Page 9: Wiring Power Inputs

    Note 2: Suitable electric wire ranges from 12 to 24 AWG. Note 3: If the 2 power inputs are both connected, JetNet 4706/4706f will be powered from the highest connected voltage. The unit will signal an alarm for loss of power in either PWR1 or PWR2.

  • Page 10: Wiring Digital Output

    To ensure the system will not be damaged by noise or electric shock, we suggest making a direct connection between the JetNet 4706/4706f and earth ground to avoid system damage. 1. On the right side of the JetNet 4706/4706f, there is one earth ground screw. 2. Loosen the earth ground screw with a screwdriver 3.

  • Page 11: Connecting Powered Device (Pd)

    100Base-TX: 2-pair UTP/STP Cat. 5e, 6 cable, EIA/TIA-568-B.2 100-ohm (up to 100m) Connecting Powered Device (PD) JetNet 4706/4706f is equipped with 4-Port PoE injectors which are in compliance with IEEE 802.3af standards for 15.4w forwarding capability and IEEE 802.3at pre-standard for high power.

  • Page 12: Wiring Rs-232 Console Cable And Pin Assignment

    Note 2: For PoE High Power feeding purpose, JetNet4706/JetNet4706f should be wall mounted on control panel to obtain great heat radiation. Caution: The PoE port of JetNet 4706/4706f should not make connection to Ethernet network with outside plant routing includeing campus, due the lighting strike may damage the system through the power system.

  • Page 13: Din-Rail Mounting Installation

    JetNet 4706/4706f Wall-Mount Installation Follow the steps below to install the JetNet 4706/4706f wall-mount plate. Use the hook holes located at the corners of the wall-mount plate to hang JetNet 4706/4706f onto a wall. Wall-mount...

  • Page 14: Preparation For Management

    Attach the RS-232 DB-9 connector to your PC COM port, then connect the RJ-45 to the console port of JetNet 4706/4706f. If you lose the cable, please follow the console cable Pin assignment to find one (See Appendix).

  • Page 15: Preparation For Web Interface

    3.2.1 Web Interface The Korenix web management page uses JavaScript. This allows you to use a standard Web browser such as Microsoft Internet Explorer or Mozilla FireFox to configure the switch from anywhere while connected to the network.
  • Page 16 Users must directly modify the browser settings to selectively enable Java applets in order to use network ports. Note 2: The Web UI connection session of JetNet 4706/4706f will logout automatically if you do not input anything after 30 seconds. Re-login if this occurs.

  • Page 17: Preparation For Telnet Console

    The SSH connection can secure all the configuration commands you send to the switch. SSH is a client/server architecture in which JetNet 4706/4706f is the SSH server. When you want to make a SSH connection with the switch, you should download the SSH client tool first.
  • Page 18 4706/4706f) and Port number (default = 22). Choose the “SSH” protocol. Then click on “Open” to start the SSH session console. 2. After clicking on Open, you will see the cipher information in the popup screen. Press "Yes" to accept the Security Alert. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 19 After a few seconds, the SSH connection to JetNet 4706/4706f will open. 4. Type in the login name and password. The default login name and password are admin. 5. All the commands you see in SSH are the same as the CLI commands you see via RS232 console.

  • Page 20: Feature Configuration

    4 Feature Configuration This chapter explains how to configure the JetNet 4706/4706f software and its features. The following topics are covered in this chapter: 4.1 Command Line Interface (CLI) Introduction 4.2 Basic Settings 4.3 Port Configuration 4.4 Power over Ethernet 4.5 Network Redundancy...

  • Page 21: Command Line Interface (Cli) Introduction

    Negate a command or set its defaults Configure NTP password Assign the terminal connection password Quality of Service (QoS) relay relay output type information rmon Remote monitoring router Enable a routing process smtp-server SMTP server configuration JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 22 The port interface name for fast Ethernet port 1 is fa1; fast Ethernet 6 is fa6. You can type the interface name accordingly when you want to enter a specific interface configuration mode. You can type exit to leave or “?” for a list of available commands. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 23 Exit current mode and down to previous mode Interface Internet Protocol config commands list Print command list Negate a command or set its defaults quit Exit current mode and down to previous mode shutdown Shutdown the selected interface JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 24 In this mode, you can Enter: Type interface VLAN Switch(config-vlan)# Interface configure settings for specific VID in global configuration Configuration VLAN. mode. Exit: Type exit or Ctrl+Z to global configuration mode. Type end to privileged EXEC mode. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 25 An alert message appears when multiple users try to configure the switch. If the administrator is in configuration mode, then Web users will not be able to change the settings. JetNet 4706/4706f only allows one administrator at a time to configure the switch. JetNet 4706/4706f Industrial Managed PoE Switch...

  • Page 26: Basic Settings

    4.2.10 CLI Commands for Basic Settings 4.2.1 Switch Setting You can assign a System name, Location, Contact and view the system information. The following figure is the Web UI for Switch Setting. Figure 4.2.1.1 JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 27 MIB in the MIB browser. Note: When you attempt to view a private MIB, you should compile private MIB files into your MIB browser first. System Description: View a description of the system. JetNet 4706/4706f Industrial Management Ethernet Switch is the name of this device.
  • Page 28 Gateway: Assign the gateway for the switch. The default gateway is 192.168.10.254. Note: In the CLI, we use 0.0.0.0/0 to represent the default gateway. Once you finish configuring the settings, click the Apply button to apply your configuration. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 29 NTP client: Select the Time Setting Source to NTP client can let device enable the NTP client.It allow JetNet4706/4706f get time from 2 different NTP servers. The system will send request packet to acquire current time from the NTP server. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 30 42 (GMT+03:30) Tehran 43 (GMT+04:00) Abu Dhabi, Muscat 44 (GMT+04:00) Baku, Tbilisi, Yerevan 45 (GMT+04:30) Kabul 46 (GMT+05:00) Ekaterinburg 47 (GMT+05:00) Islamabad, Karachi, Tashkent 48 (GMT+05:30) Calcutta, Chennai, Mumbai, New Delhi 49 (GMT+05:45) Kathmandu JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 31 4.2.5 DHCP Server You can select to Enable or Disable DHCP Server function. JetNet 4706/4706f will assign a new IP address to link partners. DHCP Server configuration After selecting to enable DHCP Server function, type in the Network IP address for the DHCP server IP pool, Subnet Mask, Default Gateway address and Lease Time for client.
  • Page 32 Add or remove an IP address from the Excluded Address List by clicking the Add or Remove button. Manual Binding: JetNet 4706/4706f provides a MAC address and IP address binding and removing function. You can type in the specified IP and MAC address, and then click the Add button to add a new MAC&IP address binding rule for a specified link partner, like...
  • Page 33 DHCP Leased Entries: JetNet 4706/4706f provides an assigned IP address list for user check. It will show the MAC and IP address that was assigned by JetNet 4706/4706f. Click the Reload button to refresh the listing. 4.2.6 Backup and Restore With the Backup command, you can save current configuration files saved in the switch’s...
  • Page 34 You can use show running-config to view it in the CLI. the process. The following figure is the Main UI for Backup & Restore The following figure is the WEB UI for Backup/Restore Configuration - Local File mode. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 35 4.2.7 Firmware Upgrade In this section, you can update the switch with the latest firmware. Korenix provides the latest firmware on their Web site (www.korenix.com). New firmware may include new features, bug fixes or other software changes. The Web site also provides release notes for the update as well.
  • Page 36 Click on the Folder icon to select the correct firmware you want to upgrade The following Web UI is for Firmware Upgrade – TFTP Server mode. Type in the IP address of the TFTP Server and the Firmware File Name. Then click the JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 37 The following UI is a popup message screen to show you that the reset is complete. Click OK to close the screen. Then go to the Reboot page to reboot the switch. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 38 Below is the Main screen for Reboot Below is the popup alert screen to request confirmation for the Switch Reboot. Click Yes to reboot the switch. The popup message screen below appears when rebooting the switch. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 39 Switch(config-if)# ip address 192.168.10.8/24 255.255.255.0 Gateway Switch(config)# ip route 0.0.0.0/0 192.168.10.254/24 Remove Gateway Switch(config)# no ip route 0.0.0.0/0 192.168.10.254/24 Switch# show running-config Display ……… interface vlan1 ip address 192.168.10.8/24 no shutdown ip route 0.0.0.0/0 192.168.10.254/24 JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 40 Firmware upgrading, don't turn off the switch! Tftping file JetNet 4706.bin Firmware upgrading ......................................Firmware upgrade success!! Rebooting..Factory Default Switch# reload default-config file Factory Default Reload OK! Switch# reboot System Reboot JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 41 Switch# reboot Reboot JetNet 4706/4706f Industrial Managed PoE Switch...

  • Page 42: Port Configuration

    Fast Ethernet Port 1~6 (fa1~fa6) : Auto Negotiation, 10M Full Duplex(10 Full), 10M Half Duplex(10 Half), 100M Full Duplex(100 Full) and 100M Half Duplex(100 Half). The default mode is Auto Negotiation mode. Flow Control column: Symmetric or disable the flow control function. “Symmetric” means that JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 43 Rate control is a form of flow control used to enforce a strict bandwidth limit of a port. You can program separate trasmitting (Egress Rule) and receiving (Ingress Rule) rate limits for each port, and even apply the limit to certain packet types as described below. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 44 Flowcontrol off for port 1 set ok! Port Status Switch# show interface fa1 Port Status Interface fastethernet1 Administrative Status : Enable Operating Status : Connected Duplex : Full Speed : 100 Flow Control :off Default Port VLAN ID: 1 JetNet 4706/4706f Industrial Managed PoE Switch...

  • Page 45: Power Over Ethernet

    Set the ingress rate limit to 8192k for Port 1. Power over Ethernet Power over Ethernet is one of the key features of JetNet 4706/4706f. It is in compliances with IEEE 802.3af standards and supports High power forwarding capability. JetNet 4706/4706f adopts 4-Port PoE injectors in port 1 to port 4, each port with the ability to deliver a 0.615mA...
  • Page 46 If JetNet 4706/4706f is set to Standard mode, JetNet 4706/4706f will execute IEEE 802.3af power limiting rule by PD class. The maximum value of Manual mode is 15.4w; Ultra mode is more than 15.4w. Note 1: For high power feeding, JetNet 4706/ 4706f must powering with DC 55V to deliver maximum power. ℃...
  • Page 47 JetNet 4706/4706f delivers a useful function – PD Status Detection. This provides automatic detection of a remote device powered by JetNet 4706/4706f. If the remote system crashes or is unstable, JetNet 4706/4706f will perform a system reboot by turning off and on again to trigger the remote device.
  • Page 48 Invalid Signature Counter : 0 Denied Counter : 0 Overload Counter : 0 Short Counter : 0 Syntax show poe pd_detect Parameters Command Mode Enable mode Description Display the status of pd status detection. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 49 Switch(config)# poe powering-mode forced Switch(config)# Set PoE port 2 to schedule mode. EX 2: Switch(config)# poe powering-mode 802.3af Switch(config)# Syntax poe control-mode user/schedule Parameters user: user mode schedule: schedule mode Command Mode Interface mode JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 50 Add a schedule which enables PoE function at hour 1, 3, 5 and 10 to 23 on Sunday. Switch(config-if)# poe schedule 0 1,3,5,10-23 Syntax no poe schedule weekday Parameters Weekday : Valid range 0-6 (0=Sunday, 1=Monday, …, 6=Saturday) Command Mode Interface mode JetNet 4706/4706f Industrial Managed PoE Switch...

  • Page 51: Network Redundancy

    Ring redundancy technology. This is patented and protected by Korenix and is used in countries all over the world. MSR ranks the fastest restore and failover time in the world, 0 ms for restore and less than 5 milliseconds for failover.
  • Page 52 So that the bridge with the highest priority becomes the highest bridge ID. If all of the bridge IDs have the same priority, the bridge with the lowest MAC address will then become the root bridge. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 53 If JetNet 4706/4706f is not the root bridge, and if it has not received a hello message from the root bridge in the amount of time equal to the Max Age, then JetNet 4706/4706f will reconfigure itself as a root bridge.
  • Page 54 Mutilple Super Ring is the 3 Korenix Ring technology. It is designed for more complex ring application and even faster recovery time. These are patented and protected by Korenix and is used in countries all over the world. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 55 “RingID”. Version: The version of Ring can be changed here. There are two modes to choose: Rapid Super Ring as default and Super ring for compatible with Korenix 1 general ring. Device Priority: The switch with highest priority (highest value) will be automatically selected as Ring Master.
  • Page 56 Ring Port2: Assign another port for ring connection Path Cost: Change the Path Cost of Ring Port2 Rapid Dual Homing: Rapid Dual Homing is an important feature of Korenix 3r generation Ring redundancy technology. When you want to connect multiple RSR or form redundant topologies with other vendors, Rapid Dual Homing could allow you to have multiple links for redundancy The maximum uplink is 7 per group.
  • Page 57 Switch(config-if)# spanning-tree port-priority <0-240> Number from 0 to 240, in multiple of 16 Switch(config-if)# spanning-tree port-priority 128 bpdufilter Switch(config-if)# spanning-tree bpdufilter enable bpduguard Switch(config-if)# spanning-tree bpduguard enable Link Type - Auto Switch(config-if)# spanning-tree link-type auto JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 58 Designated bridge has priority 4096, address 0012.7701.0386 Designated Port ID is 128.1, Root Path Cost is 0 Timers : message-age 4 sec, forward-delay 0 sec Forwarding-State Transmit count BPDU: sent 624 , received 3600 JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 59 Note: When configure Rapid Dual Homing port, IFNAME is used for port priority. Ring Info Ring Info Switch# show multiple-super-ring [Ring ID] [Ring1] Ring1 Current Status : Disabled Role : Disabled Ring Status : Abnormal Ring Manager : 0000.0000.0000 Blocking Port : N/A JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 60 Link Down sent 0, received Role Transition count 0 Ring State Transition count 1 Ring ID is optional. If the ring ID is typed, this command will only display the information of the target Ring. JetNet 4706/4706f Industrial Managed PoE Switch...

  • Page 61: Vlan

    VLAN JetNet 4706/4706f supports Port-Based VLAN functionality for the purpose of limiting a broadcast domain to specific members of a group by physically grouping the members together. JetNet 4706/4706f determines the membership of a data frame by examining the configuration of the port that received the transmission, or by reading a portion of the data frame’s tag header.
  • Page 62 Port-based vlan mode: the ports for forwarding, Port PVID EgressMode Egress Ports and the egress mode of ---- ---- ---------- ---------------------------- the port. Tagged fa2-3 Untagged fa3-4 Untagged fa1-2,fa4-6 Untagged fa1-3,fa5-6 Untagged fa1-4,fa6 Untagged fa1-5 Switch# JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 63 Specify when a frame that switchport port-based-vlan mode is egressing from this port (untagged|tagged|unmodified) should be tagged, ex: Egress packet of port 1 with tagged. untagged or unmodified Switch(config-if)# switchport port-based-vlan mode tagged Set port-based vlan mode success JetNet 4706/4706f Industrial Managed PoE Switch...

  • Page 64: Traffic Prioritization

    This section allows you to configure Traffic Prioritization settings for each port in regards to setting priorities. The JetNet 4706/4706f QoS supports 4 physical queues, weighted fair queuing (WRR) and Strict Priority scheme, which follows 802.1p COS tag and IPv4 TOS/DiffServ information to prioritize the traffic of your industrial network.
  • Page 65 This is where users can change DSCP values to a Physical Queue mapping table. Since the switch fabric of the JetNet 4706/4706f supports 4 physical queues, (lowest, low, middle and high), users should assign a DSCP value to the level of the physical queue. With the...
  • Page 66 JetNet 4706/4706f users can easily change the mapping table to follow the upper layer 3 switch or routers’ DSCP setting. After configuring, click the Apply button to enable the settings. 4.7.4 CLI Commands for Traffic Prioritization Command Lines for Traffic Prioritization configuration...
  • Page 67 The CoS to queue mapping is set ok. Map CoS 3 to Queue 1 Switch(config)# qos cos-map 3 1 The CoS to queue mapping is set ok. Map CoS 4 to Queue 2 Switch(config)# qos cos-map 4 2 JetNet 4706/4706f Industrial Managed PoE Switch...

  • Page 68: Multicast Filtering

    6 | 3 3 3 3 Multicast Filtering For multicast filtering, JetNet 4706/4706f uses IGMP Snooping technology. The IGMP (Internet Group Management Protocol) is an Internet Protocol that provides a way for an internet device to report its multicast group membership to adjacent routers. Multicasting allows one computer on the internet to send data to a multitude of other computers that have identified themselves as being interested in receiving the originating computers data.
  • Page 69 4.8.3 CLI Commands of the Multicast Filtering 4.8.1 IGMP Snooping This page is to enable/disable the IGMP Snooping feature and view the IGMP Snooping table from dynamic learnt. IGMP Snooping, you can select Enable or Disable here. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 70 IGMP Snooping Table: In the table, you can see the multicast group IP address and the member ports of the multicast group. The JetNet 4706/4706f supports 256 multicast groups. Click the Reload button to refresh the table. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 71 4.8.2 IGMP Query This page allows user to configure the IGMP Query feature. Since JetNet 4706/4706f can only be configured by the member ports of the management VLAN, so that the IGMP Query can only be enabled on the management VLAN. If you want to run IGMP Snooping feature in several VLANs, you should notice that whether each VLAN have their own IGMP Querier first.
  • Page 72 Switch(config)# int vlan 1 Switch(config-if)# no ip igmp Display Switch# sh ip igmp interface vlan1 enabled: Yes version: IGMPv2 query-interval: 125s query-max-response-time: 10s Switch# show running-config …. interface vlan1 ip address 192.168.10.17/24 ip igmp no shutdown ……. JetNet 4706/4706f Industrial Managed PoE Switch...

  • Page 73: Snmp

    With Read and Write privileges, you will have the ability to read and set the values in the MIB tables. The default community string is set to Private. JetNet 4706/4706f allows users to assign 4 community strings. Type in each community string and select its privilege. Then press the Apply button.
  • Page 74 SNMP v3 can provide more security functions when the user performs remote management through SNMP protocol. It delivers SNMP information to the administrator with user authentication; all of data between JetNet 4706/4706f and the administrator are encrypted to ensure secure communication.
  • Page 75 Community name, and trap Version V1 or V2. After the configuration, you will be able to see the changes made to the SNMP pre-defined standard traps and the Korenix pre-defined traps. The pre-defined traps can be found in Korenix’s private MIB.
  • Page 76 SNMP trap: Enabled SNMP trap community: public Switch# show running-config ..snmp-server community public ro snmp-server community private rw snmp-server enable trap snmp-server host 192.168.10.33 version 2 admin snmp-server host 192.168.10.33 version 1 admin …….. JetNet 4706/4706f Industrial Managed PoE Switch...

  • Page 77: Security

    4.10 Security In the IP Security section, you will be able to set up specific IP addresses to perform authorization for management access to JetNet 4706/4706f via web browser, Telnet or SNMP. Once you have finished configuring the settings, click the Apply/Add button to apply your configuration.

  • Page 78: Warning

    4.11.5 CLI Commands for Warning 4.11.1 Fault Relay Setting JetNet 4706/4706f provides 1 digital output, also known as Relay Output. The relay contacts are energized (open) for normal operation and will close under faulty conditions. Faulty conditions include Power Failure, Ethernet port Link Failure, Ping Failure and Super Ring Topology Change.
  • Page 79 When the amount of time is reached, the system will turn the Relay Output on or off. Event Type: Power Failure Power ID: Select either Power 1 or Power 2. When power is shut down, the system will short Relay Out and light the DO LED. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 80 After ping has failed after 10 seconds (Reset Time), the system will turn the Relay Output and Alarm LED off. After 40 seconds (Hold Time), the system will turn the Relay Output and alarm LED on again. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 81 Power 1 is failure. Power 2 Failure Power 2 is failure. Authentication failure An incorrect password, SNMP Community String is entered Time Synchronize Time Synchronize Failure Failure Fault Relay The DO/Fault Relay is on. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 82 Local Mode: In this mode, JetNet 4706/4706f will print selected past events (selected in the Event Selection page) to the System Log table of JetNet 4706/4706f. You can monitor the system logs in the [Monitor and Diag] / [Event Log] page.
  • Page 83 Remote Mode: The remote mode is also known as Server mode in the JetNet 4706 series. In this mode, you should assign the IP address of the System Log server. JetNet 4706/4706f will send the selected occurrences, selected on the Event Selection page, to the System Log server that you have assigned.
  • Page 84 Switch(config)# relay 1 dry 5 <0-4294967295> turn off period in second Switch(config)# relay 1 dry 5 5 Ping Failure Switch(config)# relay 1 ping 192.168.10.33 <cr> reset reset a device Switch(config)# relay 1 ping 192.168.10.33 reset JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 85 Fault Relay: Disabled Syslog Configuration Local Mode Switch(config)# log syslog local Server Mode Switch(config)# log syslog remote 192.168.10.33 Both Switch(config)# log syslog local Switch(config)# log syslog remote 192.168.10.33 Disable Switch(config)# no log syslog local JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 86 Switch(config)# smtp-server server 192.168.10.100 admin@korenix.com SMTP Email Alert set Server: 192.168.10.100, Account: admin@korenix.com ok. Receiver mail Switch(config)# smtp-server receipt 1 korecare@korenix.com SMTP Email Alert set receipt 1: korecare@korenix.com ok. Authentication with Switch(config)# smtp-server authentication username admin username and password admin password...

  • Page 87: Monitoring And Diagnostic

    4.12 Monitoring and Diagnostic JetNet 4706/4706f provides several types of features for you to monitor the status of the switch or create a diagnostic for you to check the problem when issues with the switch occur. Features include MAC Address Table, Port Statistics, Event Log and Ping.
  • Page 88 Click the Bad-Collision Mode button to change counter mode to RxBad and TxCollisions mode and the Good Mode button to change counter mode to RxGood and TxGood mode. Note: If the mode is changed. The statistics counter will be reset to 0.. JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 89 In section 4.10.3, we introduced the System Log feature. When System Log Local mode is selected, JetNet 4706/4706f will record past events in the local log table. This page shows the log table. The entries include the index, and data, time and content of the occurrences.
  • Page 90 Table – All types ***** UNICAST MAC ADDRESS ***** Destination Address Address Type Vlan Destination Port ------------------- --------------- ------- ------------------------ 000f.b079.ca3b Dynamic 0012.7701.0386 Dynamic 0012.7710.0101 Static 0012.7710.0102 Static 0012.77ff.0100 Management ***** MULTICAST MAC ADDRESS ***** JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 91 Destination Address Address Type Vlan Destination Port MAC addresses ------------------- --------------- ---- ------------------------ 000f.b079.cb93 Dynamic Show MAC Address Switch# show mac-address-table multicast Table – Multicast MAC JetNet 4706 Mana# show mac-address-table multicast addresses Vlan Mac Address Status Ports ---- --------------- ---- ------- --------------------------...

  • Page 92: Device Front Panel

    After selecting Save Configuration, click the Save to Flash button to save your new configuration. Command Lines: Feature Command Line Switch# write Save Building Configuration... [OK] Switch# copy running-config startup-config Building Configuration... [OK] JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 93 JetNet 4706/4706f Industrial Managed PoE Switch...

  • Page 94: Logout

    30 seconds. The Logout command allows you to manually log out the web connection. Click Yes to logout, and No to go back to the configuration page. Command Lines: Feature Command Line Switch> exit Logout Switch# exit JetNet 4706/4706f Industrial Managed PoE Switch...

  • Page 95: Appendix

    RFC 1213 MIBII, RFC 1493 Bridge MIB, RFC 1757 RMON MIB, RFC 2674 VLAN MIB, RFC 1643 Ethernet like MIB, RFC1215 Trap MIB, RFC 3621 Power Ethernet MIB, and Korenix Private MIB. SNMP Trap The SNMP trap agent provides Cold start, Warm start, Port event, Power event, Authentication failure, PoE trap and Korenix private Trap for proprietary functions.
  • Page 96 Network Redundancy Supports Rapid Super Ring function for network redundancy with 5ms network recovery time; To inter-operate with other higher level switches, JetNet 4706/4706f provides Dual Homing II technology to conform with RSTP protocol and also comforms with IEEE802.1D 2004 edition for RSTP and STP standard protocols.

  • Page 97: Pin Assignment For Rs-232 Console Cable

    Korenix provides many standard MIBs for users to configure or monitor the switch’s configuration through SNMP. But, since some commands can not be found in standard MIB, Korenix provides Private MIB to meet the needs. Compile the private MIB file with JetNet 4706/4706f Industrial Managed PoE Switch...
  • Page 98 SNMP tool. You will then be able to use it. Private MIB can be found in the product CD or downloaded from the Korenix Web site (www.korenix.com). The private MIB tree is the same as the web tree. This is easier to understand and use.

  • Page 99: Revision History

    Modify Specification as V11 Catalogue. Operating temperature change. (Note: the -40~60℃ operating temperature is supported in the production from Q2, 2010 to now, unless product phase out.) JetNet 4706/4706f Industrial Managed PoE Switch...
