Convenient usage
(1) Using the start and end triggers
During analysis, the analyzer utility can obtain data only when a specific condition is satisfied in the
entire session of communication. The condition that can be specified is a communication status
(polling, transmit/receive, etc.), a change to the control line (EOL, SRQ, ATN, etc.), a data line
match (specified ASCII code), or a delimiter match.
Select "Set Trigger Condition" from the "Set" menu.

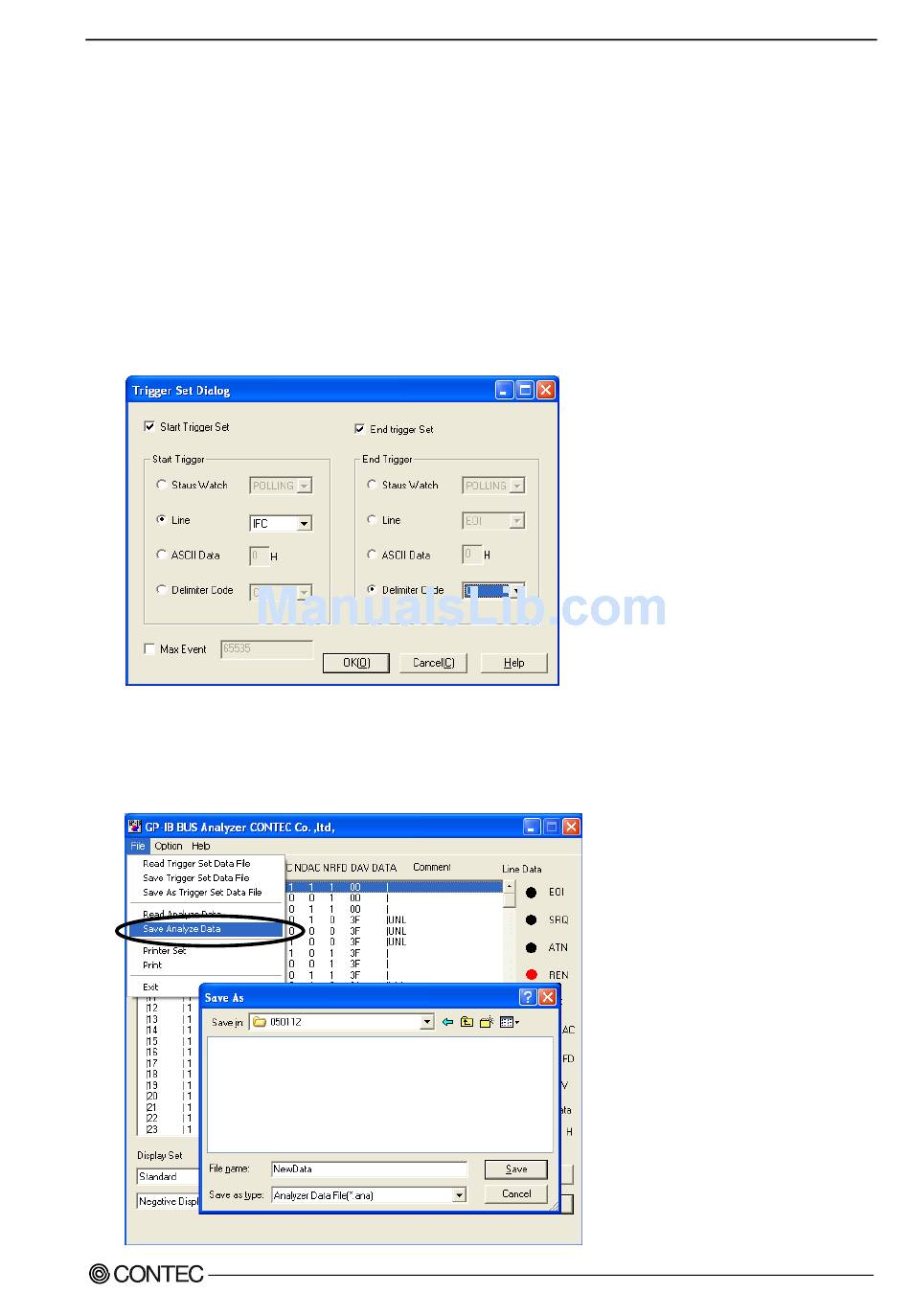

The analyzer utility works as follows with the settings made on the Trigger Set Dialog below.
- The analyzer utility starts analysis the moment IFC changes.
- The analyzer utility ends analysis upon transmit/receive of data "CR" (0DH).
(2) Saving analysis data
Once saved, obtained analysis data can be opened again with the analyzer utility. Since analysis
data is saved in CSV format as well, you can reference and edit the data using a proper program such
as Excel.
