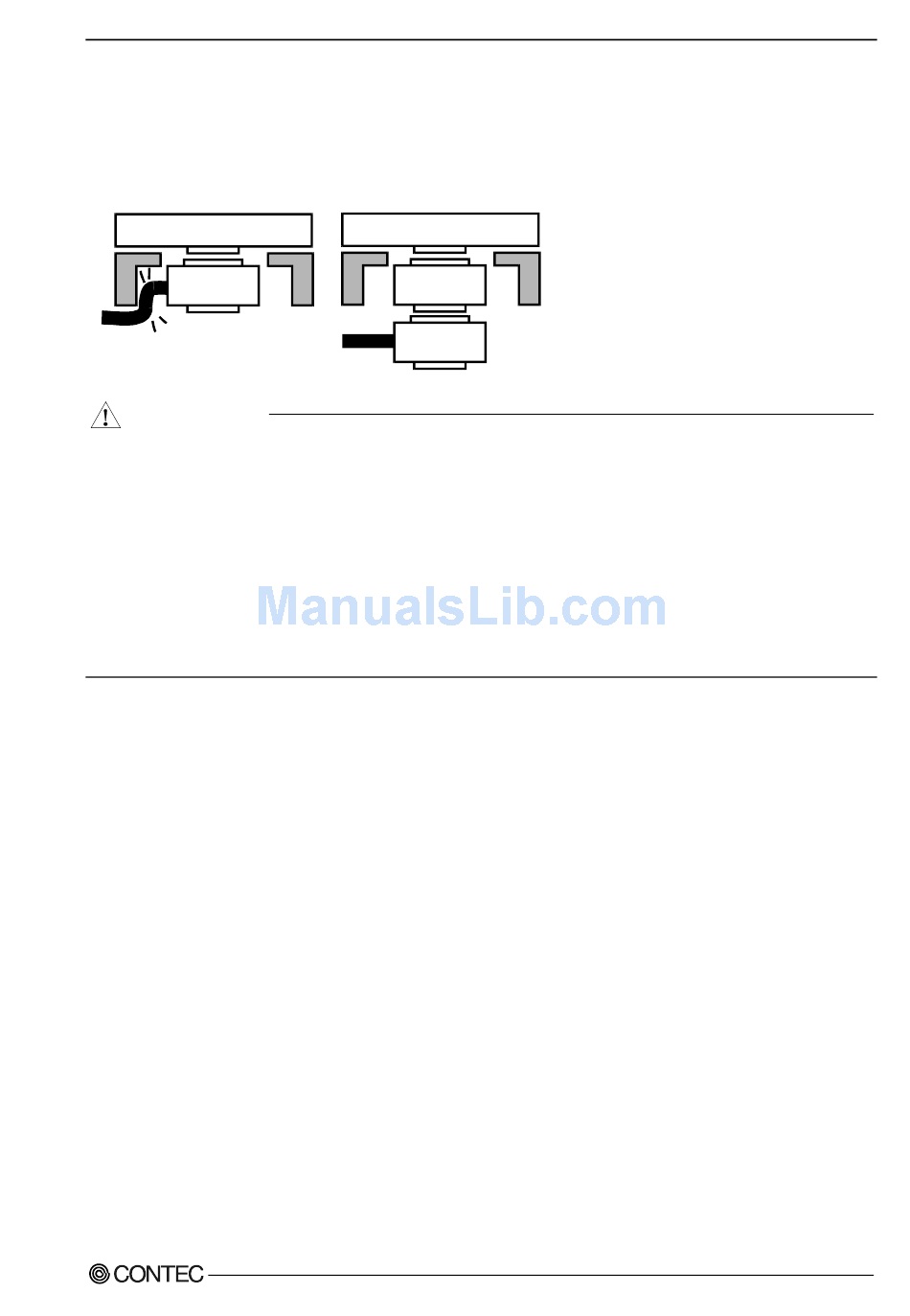

Using the Connector Adaptor
When connecting the GPIB cable to the GPIB-F-LPE and GPIB-FL-LPE, the cable may be obstructed by
the PC case. To avoid this, fit the supplied CN-GP/C connector adaptor as shown below.
Board
GPIB
Cable
CAUTION
-
Do not touch the board's metal plated terminals (edge connector) with your hands.
Otherwise, the board may malfunction, overheat, or cause a failure.
If the terminals are touched by someone's hands, clean the terminals with industrial alcohol.
-
Do not install or remove the board to or from the slot while the computer's power is turned on.
Otherwise, the board may malfunction, overheat, or cause a failure.
Doing so could cause trouble. Be sure that the personal computer or the I/O extension unit power is
turned off.
-
Make sure that your PC or extension unit can supply ample power to all the boards installed.
Insufficiently energized boards could malfunction, overheat, or cause a failure.
GPIB-F-LPE, GPIB-FL-LPE
Board
CN-GP/C
GPIB
Cable
2. Setup
19
