SBC86620 AMD Geode GX3 Mini ITX Board User's Manual

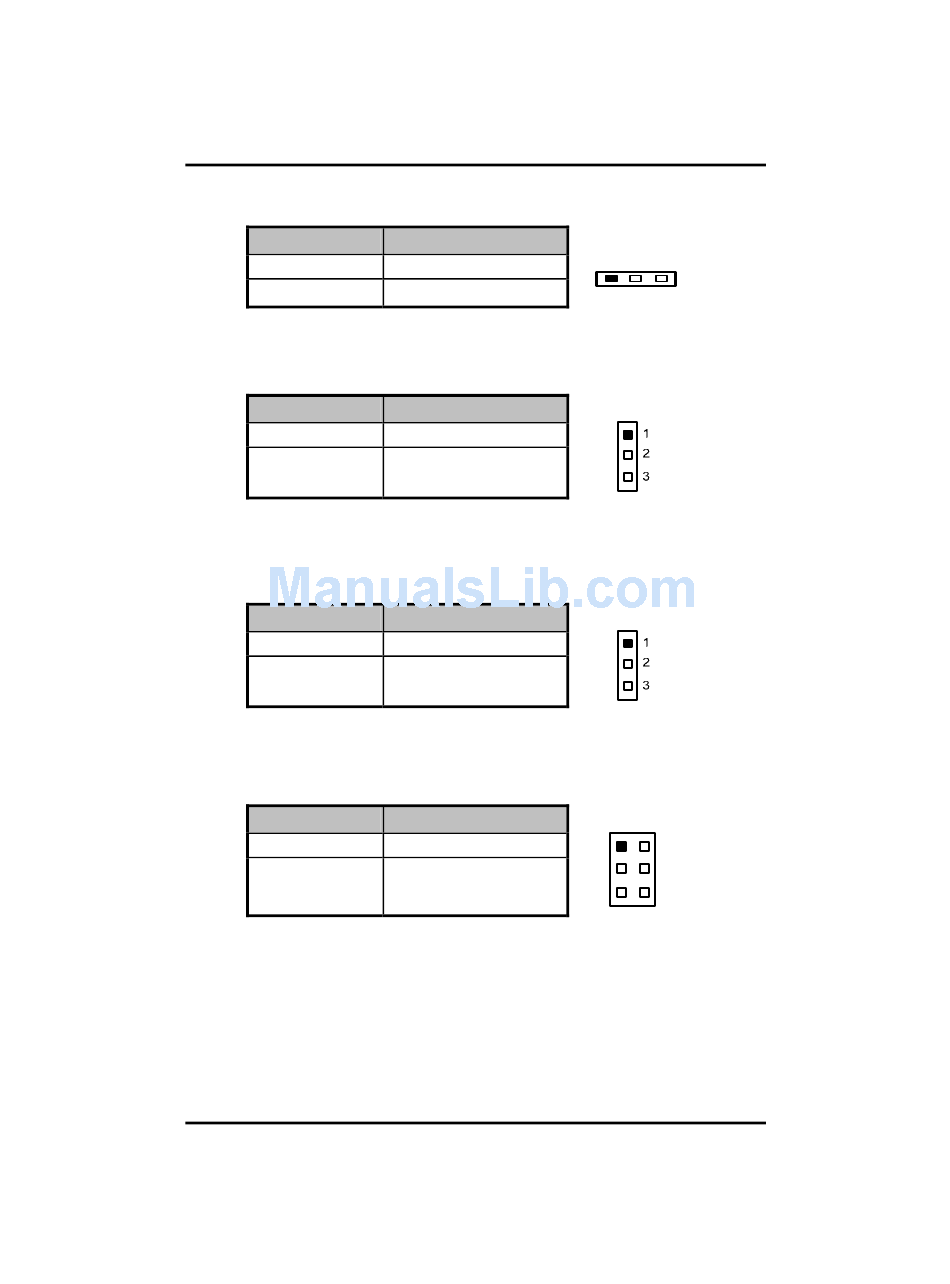

2.3.1 CMOS Clear Jumper: JP1

Options
Normal
Clear CMOS

2.3.2 Compact Flash Voltage Selection: JP2

Options
3.3V
5V

2.3.3 Compact Flash Mode Selection: JP3

Options
Slave
Master

2.3.4 COM1 Mode: JP4

Options
RS-422,RS-485
RS-232
10
Settings
Short 1-2 (default)
Short 2-3
Settings
Short 1-2 (default)
Short 2-3
Settings
Short 1-2 (default)
Short 2-3
Settings
Short 1-3,2-4
Short 3-5,4-6(default)
Jumpers and Connectors
JP1
1 2 3
JP2
JP3
JP4
1 2
3 4
5 6
