DESCRIPTION
20.5349
ACCESSORIES
10IMB
Bracket accessory
35.1609: black cover
35.1302: white cover
35.1303: silver cover
This device can be expected to comply with Part 15 of the FCC Rules, provided it is assembled in exact accordance with the instructions
provided with this kit. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
75.5782.08 IXIO-ST 20230913
1
3
1.
cover
2.
LED window
3.
AIR curtain width adjustment
4.
LCD
Curved door accessory
4
5
10ICA
Ceiling accessory
10CDA

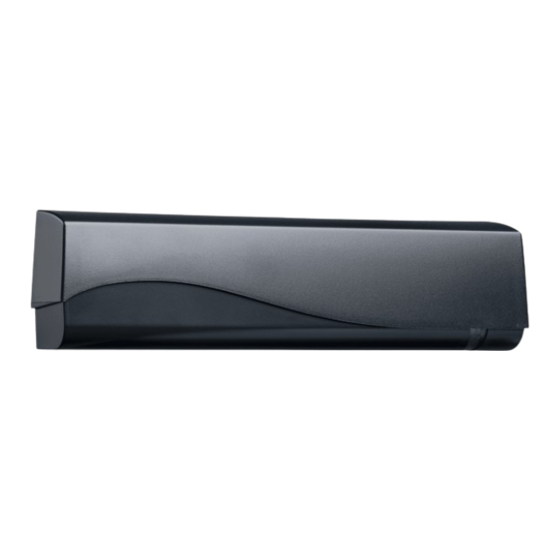

IXIO-ST
PRESENCE SENSOR FOR AUTOMATIC
SLIDING DOORS
2
8
7
6
5.
AIR lenses
6.
main adjustment knob
7.
AIR curtain angle adjustment knob
8.
main connector
10URA
Universal rain accessory
10IXIOSPACER
Spacer
Page 1 of 12
Advertisement
Table of Contents
Related Manuals for BEA IXIO-ST
Summary of Contents for BEA IXIO-ST
- Page 1 IXIO-ST PRESENCE SENSOR FOR AUTOMATIC Visit website for SLIDING DOORS available languages of this document. Download the BEA DECODER app for a quick overview of settings DESCRIPTION 20.5349 cover AIR lenses LED window main adjustment knob AIR curtain width adjustment...
-
Page 2: Installation
BEA, Inc. does not guarantee any use of the sensor/device outside of its intended purpose. BEA, Inc. strongly recommends that installation and service technicians be AAADM-certifi ed for pedestrian doors, IDA-certifi ed for doors/ gates, and factory-trained for the type of door/gate system. -
Page 3: Technical Specifications
ISO 13849 PL «c» CAT. 2 (under the condition that the door control system monitors the sensor at least once per door cycle) Specifications are subject to change without prior notice. All values measured in specific conditions. 75.5782.08 IXIO-ST 20230913 Page 3 of 12... -
Page 4: Navigating In Menus
Pressing a parameter symbol on your remote control displays the saved value directly on the LCD screen. Additionally, the green LED will blink the number of times that the parameter is set to. Do not unlock first. Page 4 of 12 75.5782.08 IXIO-ST 20230913... -
Page 5: Mounting And Wiring
* The sensor LED will briefly flash RED during monitoring communication with door control, indicating that external monitoring is functional. Monitoring functionality must be active on the sensor, door control, and monitoring wires must be properly connected to the door control. 75.5782.08 IXIO-ST 20230913 Page 5 of 12... - Page 6 Wide setting has 1:1 ratio. For example, a 6-foot mounting height will project a 6-foot detection width at floor. Always verify the actual detection field width by walk-testing according to ANSI 156.10. Additional adjustments are possible by LCD or remote control (see OVERVIEW OF SETTINGS). Page 6 of 12 75.5782.08 IXIO-ST 20230913...
- Page 7 + reference picture either hold the knob for 4 seconds, or use the remote control buttons as specified TEST THE PROPER OPERATION OF THE INSTALLATION BEFORE LEAVING THE PREMISES! LED flashes red-green 75.5782.08 IXIO-ST 20230913 Page 7 of 12...
-
Page 8: Overview Of Settings
POWERSUPPLY .... supply voltage at power connector OPERATINGTIME ..power duration since first startup RESET LOG ....delete all saved errors PASSWORD ....LCD and remote control password (0000= no password) ADMIN ......enter code to access admin mode Page 8 of 12 75.5782.08 IXIO-ST 20230913... - Page 9 Monitoring functionality must be active on the sensor and door control, and monitoring wires must be properly connected to the door control. Note 4 partial: outputs are not reset 75.5782.08 IXIO-ST 20230913 Page 9 of 12...
-
Page 10: Led Signals
The sensor is disturbed by Increase the AIR immunity filter. external conditions. GREEN LED illuminates The sensor vibrates. Check if the sensor and door cover is secure. sporadically Check position of cable and cover. Page 10 of 12 75.5782.08 IXIO-ST 20230913... - Page 11 Active High. Safety output is set incorrectly. Set the safety output required for the door control. Can’t find your answer? Visit www.beainc.com or scan QR code for Frequently Asked Questions! 75.5782.08 IXIO-ST 20230913 Page 11 of 12...
- Page 12 BEA, Inc. does not guarantee any use of the sensor/device outside of its intended purpose. BEA, Inc. strongly recommends that installation and service technicians be AAADM-certifi ed for pedestrian doors, IDA-certifi ed for doors/ gates, and factory-trained for the type of door/gate system.
