BEA IXIO-ST User Manual

BEA IXIO-ST User Manual

Safety sensor for automatic sliding doors
Hide thumbs Also See for IXIO-ST:
Table of Contents

Advertisement

Quick Links

Download this manual
JOIN OUR
COMMUNITY!
Download the BEA DECODER app
for a quick overview of settings

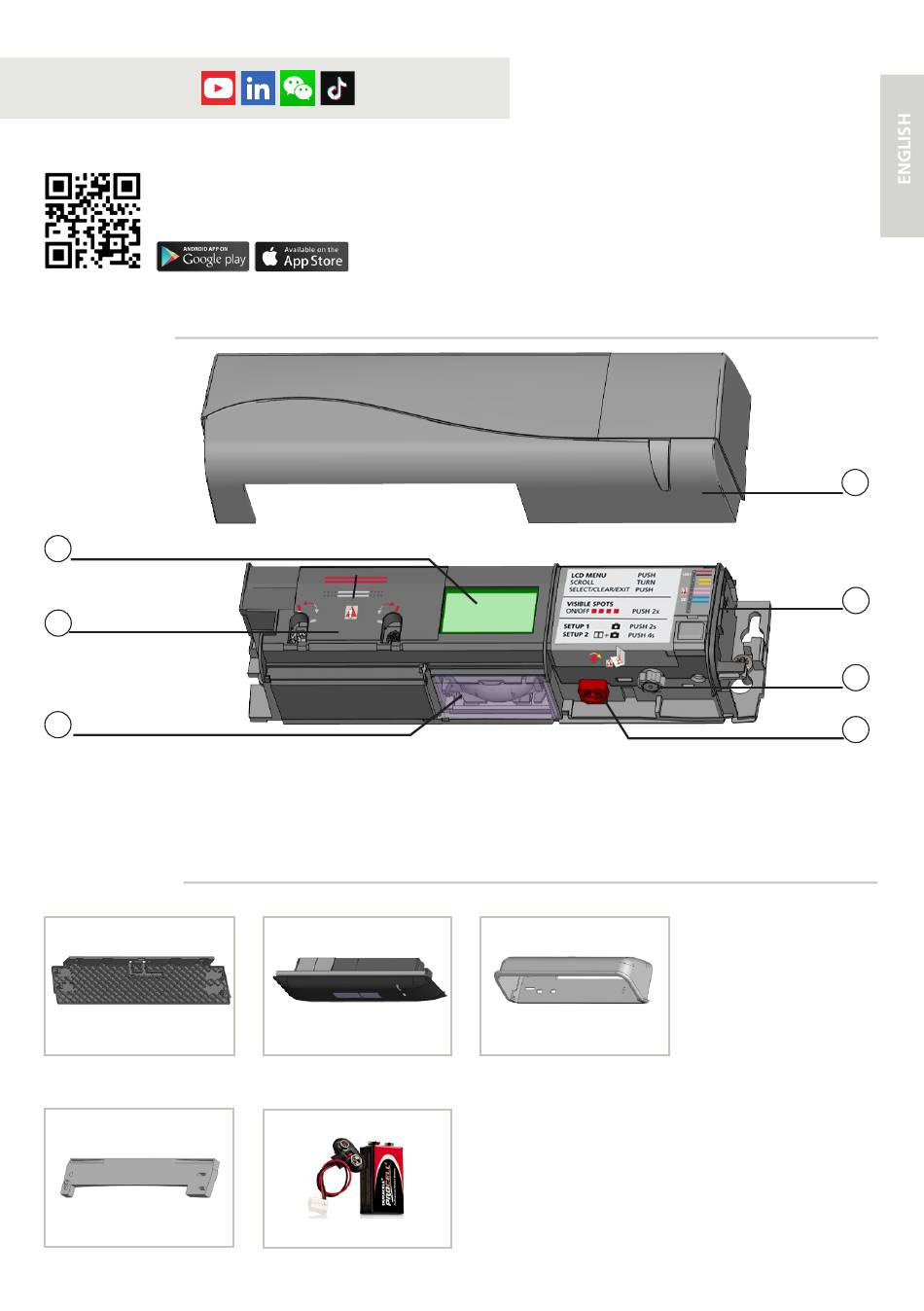

DESCRIPTION
1
2
3
ACCESSORIES
BA: Bracket accessory
CDA: Curved door accessory
1.
LCD
2.
IR-curtain width adjustment
3.
IR-lenses
CA: Ceiling accessory
9 V battery
IXIO-ST
SAFETY SENSOR
FOR AUTOMATIC SLIDING DOORS
(according to EN 16005 and DIN 18650)
User's Guide for software version 0600 and higher
(refer to tracking label on product)
4.
cover
5.
main connector
6.
main adjustment knob
7.
IR-curtain angle adjustment knob
RA: Rain accessory
4
5
6
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IXIO-ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEA IXIO-ST

Summary of Contents for BEA IXIO-ST

  • Page 1 IXIO-ST COMMUNITY! SAFETY SENSOR FOR AUTOMATIC SLIDING DOORS Download the BEA DECODER app for a quick overview of settings (according to EN 16005 and DIN 18650) User’s Guide for software version 0600 and higher (refer to tracking label on product)

  • Page 2: Navigating In Menus

    HOW TO USE THE LCD? DISPLAY DURING NORMAL FUNCTIONING Opening Safety Negative display = active output To adjust contrast, push and turn impulse the grey button simultaneously. During normal function only. FACTORY VALUE VS. SAVED VALUE displayed value = saved value displayed value = factory value NAVIGATING IN MENUS Push to enter...

  • Page 3: Mounting And Wiring

    IXIO-ST: INSTALLATION GUIDE MOUNTING & WIRING DOOR CONTROLLER POWER SUPPLY BLACK YELLOW YELLOW OPENING PINK PINK SAFETY BLUE BLUE TEST * Output status when sensor is operational Mount the sensor securely. ** For compliance with EN 16005 and DIN 18650, connection to door controller test output is required.
  • Page 4 SETTINGS Choose one of the following presettings or adjust the sensor manually (see p.5): STANDARD : standard in- and outdoor installations CRITICAL ENVIRONMENT : critical installations due to surroundings or weather SHOPPING STREET : installations in narrow streets with pedestrian traffic SETUP STEP OUT OF THE INFRARED FIELD! SETUP 1 (QUICK)

  • Page 5: Overview Of Settings

    OVERVIEW OF SETTINGS BASIC Back More factory values for IR immunity and IR number shopping critical increased immunity PRESETTINGS standard street env. increased immunity, 1 curtain ≥ 2,8 m < 2.8 m For conformity to EN 16005 or DIN 18650 at a IR: IMMUNITY normal mounting height of 2.8 m or more, use values...

  • Page 6: Troubleshooting

    TROUBLESHOOTING ORANGE LED flashes 1 x. The sensor signals Replace sensor. an internal fault. ORANGE LED flashes 2 x. The power supply is too Check power supply (in the diagnostics menu of the LCD). low or too high. Check wiring. ORANGE LED flashes 3 x.

  • Page 7: Installation

    LED-SIGNAL Presence detection LED flashes LED flashes LED flashes LED flashes LED is off red-green quickly x times INSTALLATION The sensor should be Do not cover the sensor. Avoid moving objects Avoid highly fixed firmly to avoid and light sources in reflective objects in extreme vibrations.

  • Page 8: Technical Specifications

    BEA SA | LIEGE Science Park | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | INFO@BEA.BE | WWW.BEASENSORS.COM BEA hereby declares that this product is in conformity with European directives : 2014/30/EU (EMC), 2006/42/EC (Machinery), 2011/65/EU (RoHS).
