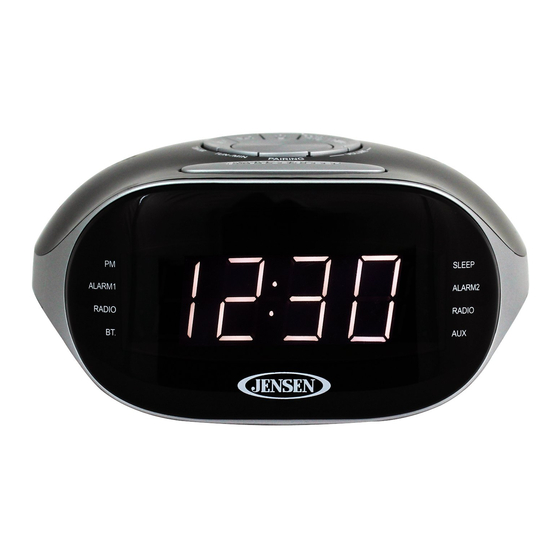

Jensen JCR-228 User Manual

Digital bluetooth am/fm dual alarm clock radio.
Hide thumbs
  • Contents

Advertisement

Table of Contents
DIGITAL BLUETOOTH AM/FM DUAL ALARM CLOCK RADIO
MODEL: JCR-228
USER MANUAL
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS
UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
Previous page
Next page

Advertisement

   Related Manuals for Jensen JCR-228

   Summary of Contents for Jensen JCR-228

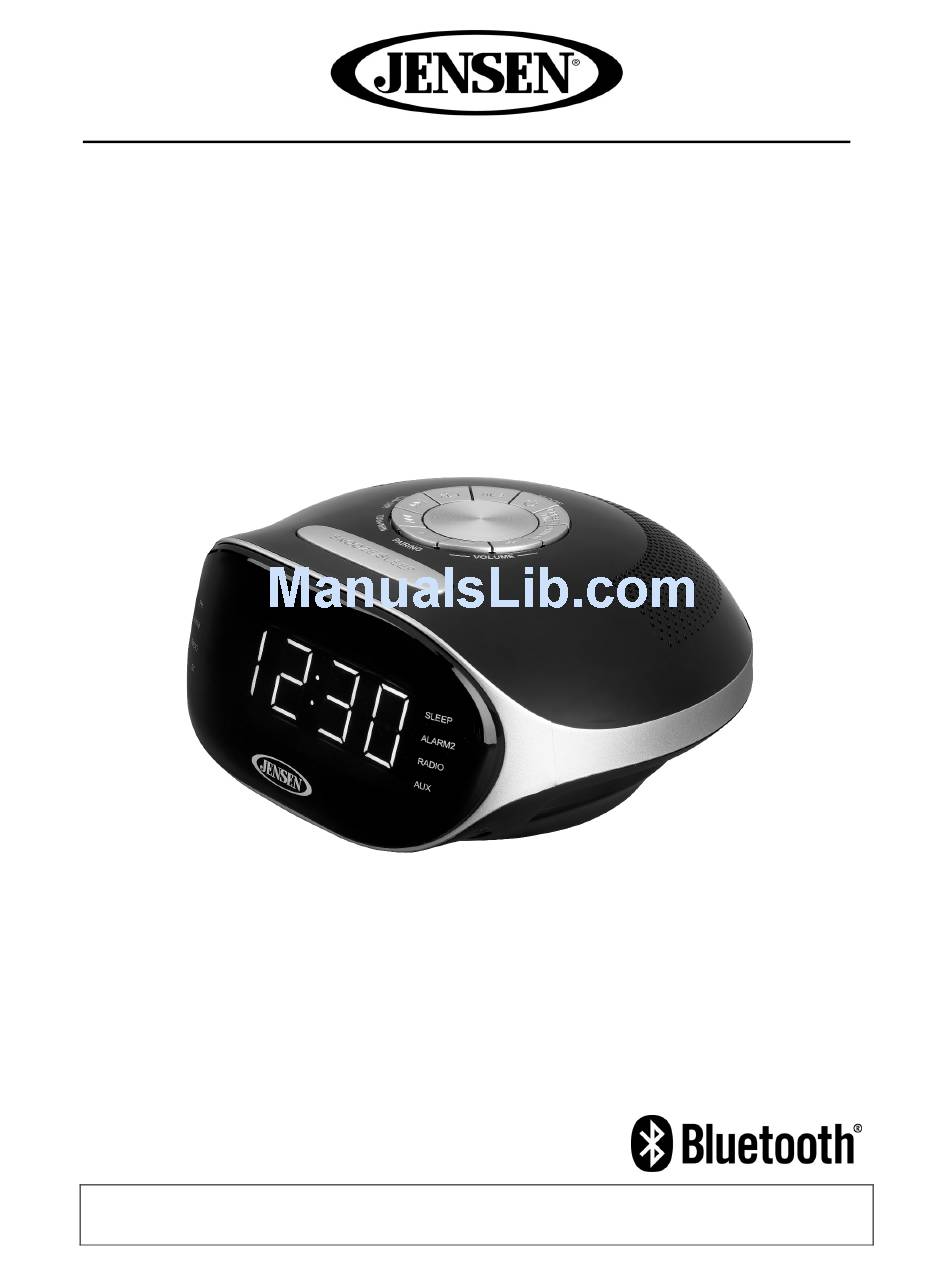

  • Page 1 DIGITAL BLUETOOTH AM/FM DUAL ALARM CLOCK RADIO MODEL: JCR-228 USER MANUAL PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

  • Page 2: Important Safety Instructions

    WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The Caution Marking is located at the bottom enclosure of the apparatus.
  • Page 3 16. Do not overload wall outlet. Use only power source as indicated. 17. Use replacement part as specified by the manufacturer. 18. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks. 19.

  • Page 4: Compliance With Fcc Regulations

    COMPLIANCE WITH FCC REGULATIONS FCC ID : 2AE7AJCR228 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Dear Jensen Customer

    The serial number of this product is found on its bottom. You should note the serial number of this unit in the space provided as a permanent record of your purchase to aid in identification in the event of theft of loss. Model Number: JCR-228 Serial Number :...

  • Page 6: Power Source

    POWER SOURCE This unit is designed to operate on AC 120V~ 60Hz. Operating this unit on any other power source may cause damage to the unit, and such damage is not covered by your warranty. It is also equipped with a battery back-up system for the clock that is powered by 2 X AA (UM-3) batteries (not included).

  • Page 7: Location Of Controls

    LOCATION OF CONTROLS Alarm 2 Alarm 1 TUN - / HR / TUN+ / MIN / PAIRING / Mode / PRESET / TIME DIMMER Volume + 10. Volume - 11. SNOOZE / SLEEP 12. AUX IN 13. FM ANTENNA 14. PM INDICATOR 15.

  • Page 8: Setting The Clock Time

    SETTING THE CLOCK TIME In order for the clock to function properly, the clock has to be set before you use it for the first time. After powering up the unit or press and hold PRESET/TIME Button (#7) at standby mode, the clock display will flash. To set the time, follow the steps below: Tap the TUN-/HR/ / TUN+/MIN/ Buttons (#3/#4) until the correct time is...

  • Page 9: Bluetooth Operation

    2. Turn on the Bluetooth function for the device you want to link to, and enable the search or scan function to find the JCR-228. 3. Select "JCR-228" from the device list when it appears on your device screen. If required, enter the pass code “0000” to pair (link) JCR-228 with your device.

  • Page 10: Alarm Operation

    ALARM OPERATION SETTING THE ALARM TIME You can set two different alarm times and select wake to RADIO / ALARM sound. 1. In standby mode, press and hold the ALARM 1 Button (#2) until the LED display flash. 2. Tap the TUN-/HR/ OR TUN+/MIN/ Buttons (#3/4) to select wake to Radio FM –...

  • Page 11: Aux Operation

    AUX OPERATION You can play other music sources (iPod, MP3 or other digital audio players) through the speakers of the JCR-228 by connecting the AUX IN Jack (#12 ) to your external player’s audio out jack or headphone jack. 1. Plug one end of an audio cable (not included) into the AUX IN Jack (#12) and the other end of the cable to the headphone jack of your digital audio player.

  • Page 12: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Should you experience difficulties in the use of this player please refer to the following chart or call 1-800-777-5331 for Product Service and Support. SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION Power does not AC line cord not plugged in. Insert plug firmly into AC come on.

  • Page 13: U.s.a. Only

    90 DAY LIMITED WARRANTY AND SERVICE VALID IN THE U.S.A. ONLY SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship for a period of 90 days from the date of original customer purchase and provided the product is utilized within the U.S.A. This warranty is not assignable or transferable.
