Summary of Contents for Jensen JCR-295

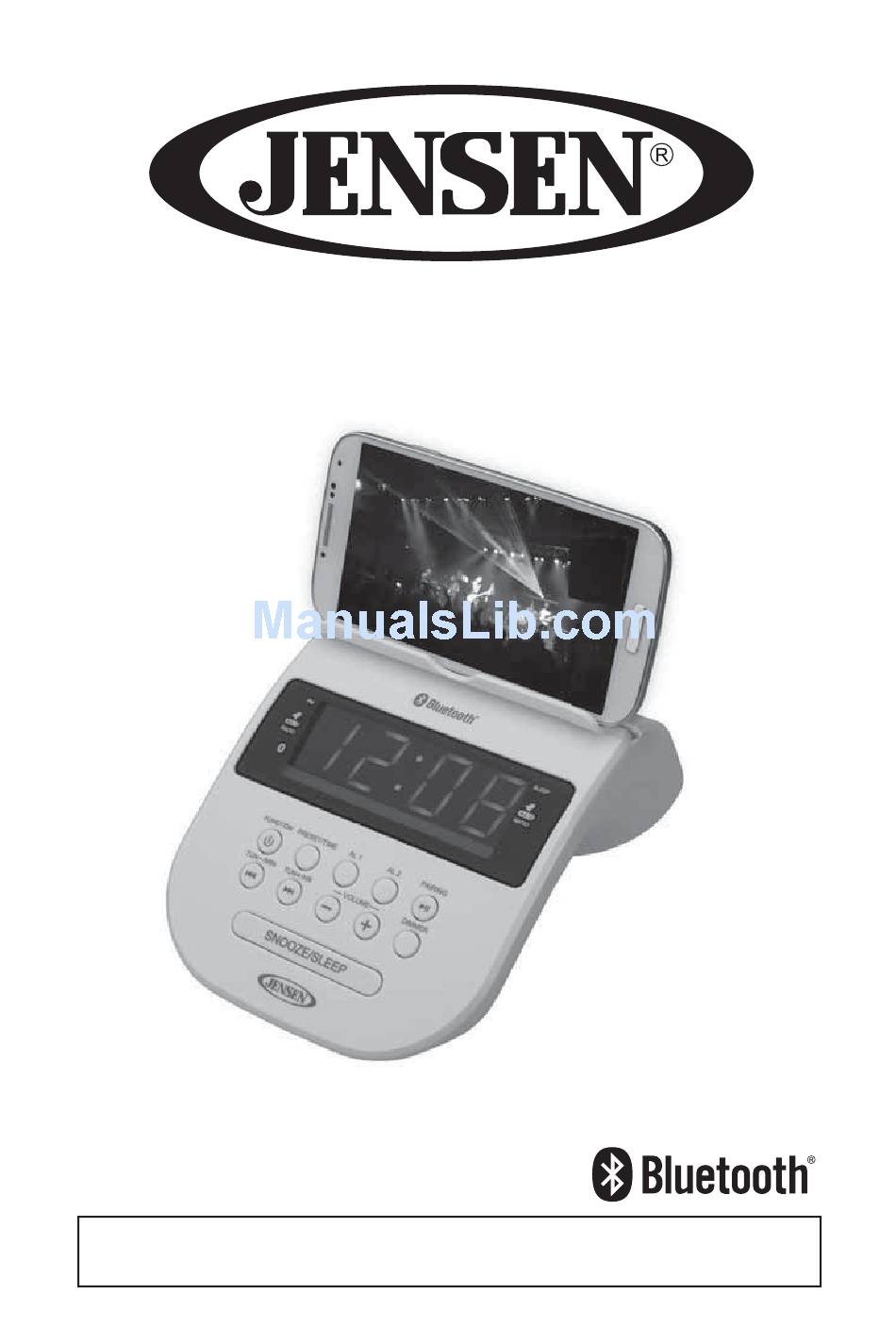

- Page 1 Bluetooth Clock Radio with Cellphone Holder USER MANUAL JCR-295 PLEASE READ THIS OPERATION MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
-
Page 2: Compliance With Fcc Regulations
CAUTION Follow the advice below for safe operations. Stop operation immediately if any liquid or solid object should fall into the cabinet. If the unit is not to be used for a long period of time, make sure that all power sources are disconnected from the unit. -
Page 3: Protect Your Furniture
The serial number of this product is found on its bottom cover. You should note the serial number of this unit in the space provided as a permanent record of your purchase to aid in identification in the event of theft of loss. Model Number : JCR-295 Serial Number :... -
Page 4: Location Of Controls
LOCATION OF CONTROLS USB CHARGING 19 20 SLEEP indicator PM indicator DISPLAY INDICATOR Wake to BUZZER Wake to BUZZER ALARM 1 ALARM 2 WAKE UP SOURCE indicator WAKE UP SOURCE indicator Wake to RADIO Wake to RADIO BLUETOOTH indicator ALARM WAKE TO PM INDICATOR ALARM/RADIO INDICATORS... - Page 5 POWER SOURCE (AC ADAPTER ONLY) The JCR-295 operates with an external AC-DC adaptor with a rating of DC 5V, 1200mA . The system is also equipped with a battery back-up system for the clock that is powered by 2 pieces of “AAA” (UM-4) size batteries (Not included).
-
Page 6: Setting The Clock Time
SETTING THECLOCK TIME In order for the clock to function properly, the clock has to be set before you use it for the first time. After powering up the unit or press and hold PRESET/TIME Button (#4) at standby mode, the clock display will flash. To set the time, follow the steps below: 1. -
Page 7: Bluetooth Operation
2. Turn on the Bluetooth function for the device you want to link to, and enable the search or scan function to find the JCR-295. 3. Select "JCR-295" from the device list when it appears on your device screen. If required, enter the pass code “0000” to pair (link) JCR-295 with your device. -
Page 8: Alarm Operation
ALARM OPERATION SETTING THE ALARM TIME You can set two different alarm times and select wake to RADIO / ALARM sound. 1. In standby mode, press and hold the ALARM 1 Button (#12) until the LED display flash. 2. Press the MIN / HR Buttons (#6) to set the hour and minute of the alarm time. 3. -
Page 9: Aux Operation
USING THE CELL PHONE HOLDER Cell Phones and Smaller tablets can be placed in the Cell Phone Holder when it is attached to the top of the JCR-295. Smaller tablets can be placed in vertical or horizontal mode as shown below. - Page 10 (DC5V,1000MA) 1. Plug the standard end of the USB cable (included) into the USB CHARGING PORT located on the back of the JCR-295. Plug the other end of the cable into the device you wish to charge. 2. Observe the battery charge indicator on your device to make sure the charging process starts normally.
-
Page 11: Troubleshooting
TROUBLE SHOOTING If you experience difficulties in the use of this music system, please check the following or call 1-800-777-5331 for Customer Service. POSSIBLE SYMPTOM SOLUTION Power adapter connect unstable Reconnect adapter No sound Volume set at minimum Increase Volume level Noise or sound distorted Wire antenna is not extended Extend wire antenna... - Page 12 90 DAY LIMITED WARRANTY AND SERVICE VALID IN THE U.S.A. ONLY SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship for a period of 90 days from the date of original customer purchase and provided the product is utilized within the U.S.A. This warranty is not assignable or transferable.
