Altronix AL600ULM Installation Manual page 5

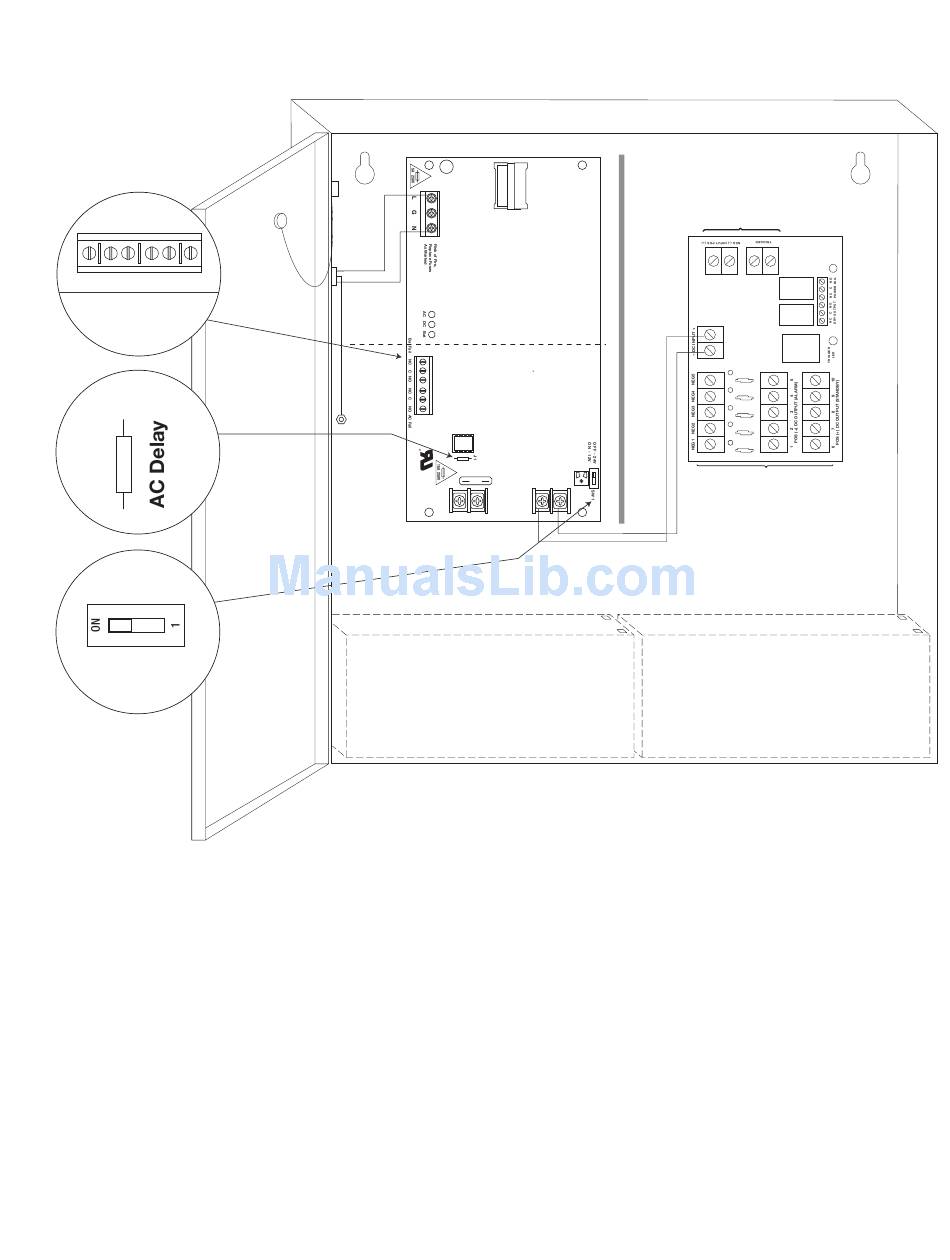

Fig. 1 - AL300ULM, AL400ULM
Fig. 1a
NC C NO NC C NO
Battery and
AC Supervision Circuit
(power-limited)
Fig. 1b
J1
Fig. 1c
SW1
OFF - 24V
ON - 12V
M series
CAUTION: De-energize unit prior to servicing. For continued protection
against risk of electric shock and fire hazard replace fuses with the same type
and rating (see marking on the board). Do not expose to rain or moisture.
Wire
Strap
(from
Enclosure
to Door)
115VAC
power mains
non power-
limited
Class 1
Earth
Ground
Battery Connections
Optional Rechargeable
Keep power-limited wiring separate from non power-limited.
Use minimum 0.25" spacing.
CAUTION: Optional rechargeable stand-by batteries must match
the power supply output voltage setting.
AC Delay
ON
15
+ +
BAT ---
DC ---
non power-limited
non power-limited
Stand-by Battery
Fire Alarm
Interface
Power-limited
Divider
DC Outputs to devices
(power-limited)
Optional Rechargeable
Stand-by Battery
- 5 -
