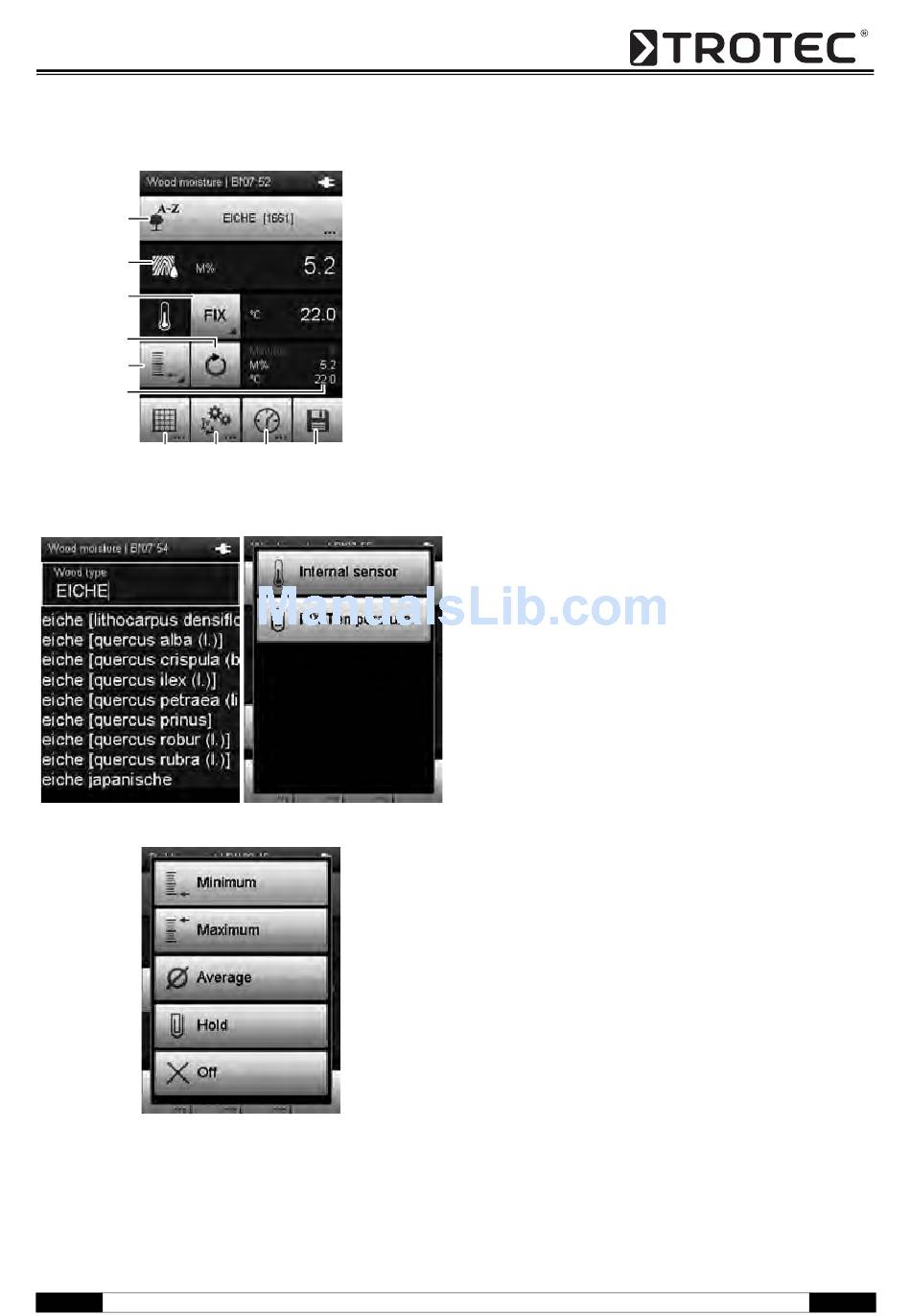

"Measuring mode – Wood moisture" screen
A.
22
23
24
25
26
27
28 29
B.
D.
GB
30 31
C.
Operating manual – Multifunction measuring meter T3000
22 Select the desired type of wood (see image B.):
1. Touch the displayed type of wood (22 in image A.).
2. Press the "OK" key to activate the "Wood type" input box
(see image B.).
3. Press the "Up" or "Down" keys to select the initial letter of
the desired type of wood.
4. Press the "Right" key to select any other letters of the
desired type of wood.
5. Press the "OK" key.
6. Use the "Down" key to jump to the list of wood types and
select the desired type of wood. Press the "Left" or "Right"
keys to scan forward or backwards through the "Wood
type" list page by page.
7. Press the "OK" key to confirm the selected type of wood.
23 M%: Display the measured value as a mass percent-
age (relative mass proportion of the humidity to
the total mass).
24 Select the temperature sensor (INT) which is built into the
T3000 or select the manually specified temperature value (FIX;
see image C.). The measured or manually specified tempera-
ture value is shown to the right of the "INT" or "FIX" key.
25 Resets the measured values shown by 27 to zero.
26 Specifies how measured values by 27 are shown (see
image D.):
Minimum: Always shows the smallest detected measured
value from a measuring period.
Maximum: Always shows the largest detected measured
value from a measuring period.
Average: Shows the average value of all detected
measured values from a measuring period.
Hold: Pauses the current detected measured value and
shows it continually (when this option is
selected).
Off: Switches off the measured values by 27.
27 Shows the measured values according to the specifica-
tions under 26:
Minute: Duration of the measured interval
M%: Shows the measured value (e.g. as average
value) as a mass percentage (relative mass pro-
portion of the humidity to the total mass).
°C: Shows the measured (INT) or manually specified
temperature values (FIX).
28 Carries out a grid measurement (see image E., page B - 11).
29 Specifies the measuring range in height x width (edge lengths)
and their activation/deactivation as well as the specified tem-
perature value (FIX) (see image F., page B - 12).
30 Carries out an automatic measurement for the duration of an
already specified recording interval. The recording interval can
be specified in the following screen (see image G. and
image H., page B - 13).
31 Saves the measured values in the archive.
B - 10
