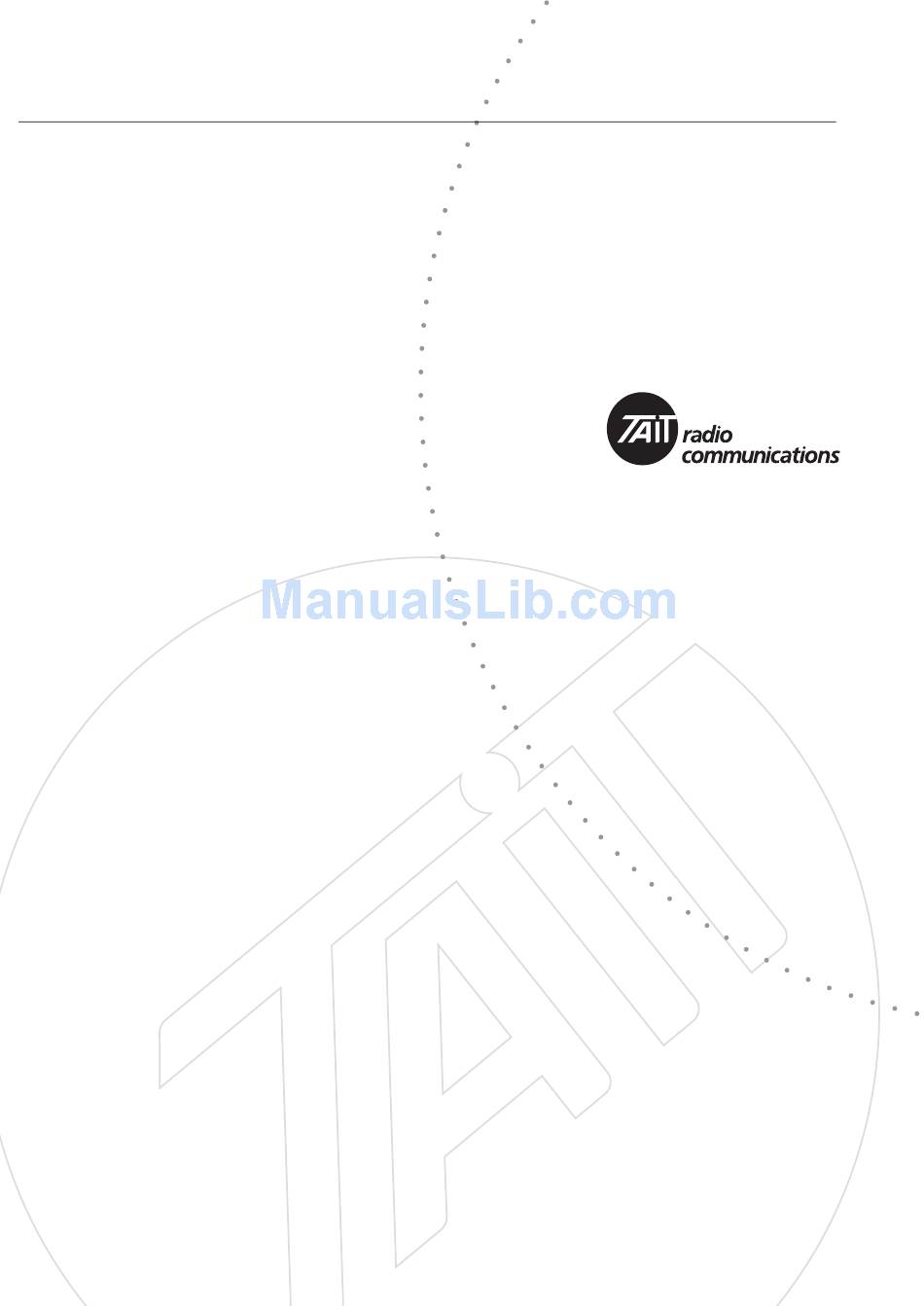

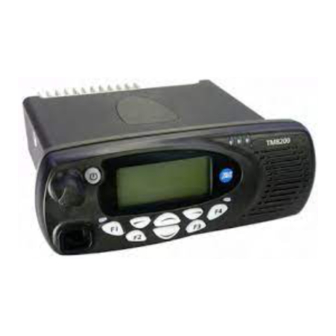

  • Page 1 TM8200 base station Tuneup info for compliance Tuneup Issue 1 August 2004...
  • Page 2 Tait Latin America E-mail: australia@taitworld.com E-mail: latinamerica@taitworld.com Note: For the addresses and phone numbers Tait Europe of the above regional offices refer to the Tait- World website. Regional Head Office - United Kingdom Tait Mobile Radio Ltd E-mail: teusales@tait.co.uk Tuneup...
  • Page 3 Tuneup © Tait Electronics Ltd August 2004...
  • Page 4 Copyright All information contained in this manual is the property of Tait Electronics Ltd. All rights are reserved. This manual may not, in whole or in part, be copied, photocopied, reproduced, translated, stored, or reduced to any electronic medium or machine-readable form, without prior written permission from Tait Electronics Ltd.
  • Page 5 Help. Technical notes are published from time to time to describe applications for Tait products, to provide technical details not included in manuals, and to offer solutions for any problems that arise. Updates may also be published on the Tait support website.

  • Page 6: Table Of Contents

    Advanced tab ..........38 Tuneup © Tait Electronics Ltd August 2004...
  • Page 7 Test Freqs tab ..........41 Tuneup © Tait Electronics Ltd August 2004...

  • Page 8: General Information

    The frequency ranges 156.8 MHz ± 375 kHz, 243 MHz ± 5 kHz, and 406.0 to 406.1 MHz are reserved worldwide for use by distress beacons. Do not program transmitters to operate in any of these frequency bands.. Tuneup General Information August 2004© Tait Electronics Ltd...
  • Page 9 TO BLANK CONTROL HEAD) CONTROL HEAD IN-LINE CONNECTOR RADIO BODY AUXILIARY CONNECTOR RF CONNECTOR POWER CONNECTOR BNC PLUG RJ45 PLUG ADAPTOR BANANA PROGRAMMING PLUGS CONNECTOR BLANK SOCKET CONTROL HEAD DC POWER SUPPLY RADIO BODY General Information Tuneup August 2004© Tait Electronics Ltd...

  • Page 10: Equipment Set-Up

    AUDIO IN switch AUDIO OUT switch to “TM8200”. For For servicing TM8200 radios set the SELECTOR testing receive and transmit functions respectively, the remaining switches must be set as described below. (When programming or calibrating radios the switches have no effect, although it is good practice to set the switch to “R...
  • Page 11 Figure 1.2 Illustration of the face of the test unit General Information Tuneup August 2004© Tait Electronics Ltd...
  • Page 12 Click “Start” > “Run” . The “Run” dialogue box appears. Type d:\menu.exe , where d is the letter designating the CD-ROM drive. Click the “OK” button. The “Run” dialogue box is closed and the Contents window appears. Tuneup General Information August 2004© Tait Electronics Ltd...
  • Page 13 View Documents CD give access to the documents stored on the CD: To view any document click the corresponding button. The Adobe Acrobat Reader application needs to be installed on the test PC. General Information Tuneup August 2004© Tait Electronics Ltd...
  • Page 14 To run the application and become familiar with its features, proceed as follows: Click “Start” > “Programs” > “Tait Programming Applications” > “TM8200 Programming Application” . The programming application is opened.
  • Page 15 To run the application and become familiar with its features, proceed as follows: Click “Start” > “Programs” > “Tait Programming Applications” > “TM8200 Calibration Application” . The calibration application is opened.
  • Page 16 ( r1 , r2 , r3 , r4 , r5 , t1 , t2 , t3 or t7 ) AUD TAP OUT and y the tap type (C=bypass out, D=split, E=splice) (the default is D when y is omitted) Tuneup General Information August 2004© Tait Electronics Ltd...
  • Page 17 Clears the last recorded system error 204 – Read system error SysErr: x Reads the last recorded system error and the associated data where x is the error number and y represents the associated data General Information Tuneup August 2004© Tait Electronics Ltd...
  • Page 18 (any integer from 0 to 3000) 378 – Receiver output level Reads the signal power at the where x is the signal power output of the channel filter (the square of the amplitude) Tuneup General Information August 2004© Tait Electronics Ltd...
  • Page 19 (a value from 0 to 1100 mV) 326 – Transmitter power 326 x None Sets the power level of the where x specifies the level transmitter (0=off, 1=very low, 2=low, 3=medium, 4=high, 5=maximum) General Information Tuneup August 2004© Tait Electronics Ltd...
  • Page 20 Table 1.1 to Table 1.5. Depending on the command, a response might or might not be displayed. If an error occurs, an error code will be displayed. Possible error codes are listed in Table 1.6. Tuneup General Information August 2004© Tait Electronics Ltd...
  • Page 21 The information conveyed by the tones is given in Table 1.8. Not all of the tones listed are relevant to the servicing of radios but they are included for the sake of completeness. General Information Tuneup August 2004© Tait Electronics Ltd...
  • Page 22 LCD will usually be flashing OL (two-digit display) or L (one-digit display) Continuous low-pitched While powered up — System error has occurred and radio might be inoperable; tone LCD usually displays E1 or E2 (two-digit display) or E (one-digit display) Tuneup General Information August 2004© Tait Electronics Ltd...
  • Page 23 General Information Tuneup August 2004© Tait Electronics Ltd...

  • Page 24: Topa-Sv-024 Test Unit

    TOPA-SV-024 Test Unit The TOPA-SV-024 test unit is used to test and maintain Tait Orca portables (TOP) and TM8200 radios by providing an interface between the radio, a test PC, and an RF communications test set. The diagram below shows the front panel of the test unit.
  • Page 25 TMAA21-01 cable power microphone connector connector (RJ45) TMAA20-02 cable RF connector auxiliary programming (BNC) connector connector (DB9) (DB9) TMAA20-03 cable DC POWER SUPPLY radio without user interface banana plugs TOPA-SV-024 Test Unit Tuneup August 2004 © Tait Electronics Ltd...

  • Page 26: Operation

    This 3-way toggle switch is used to switch between Mod Audio (Tait Orca portables only), Mic Audio, and Off (no audio signal). With the Tait Orca portables, this switch can be used for setting up dual point modulation by applying modulation to different parts of the radio.

  • Page 27: Rx / Tx/Ptt Switch

    When set to Radio, only the speaker of the Tait Orca portable is active. When set to Load, no speaker is active. The audio signal is terminated in the test unit dummy load. When set to Speaker, the speakers of the test unit and the TM8200 are TM8200 radios with user interface both active.

  • Page 28: Pcb Information (Pcb Ipn 220-01418-02A)

    Res Flm 4x1.6 560e 5% 0.4w 030-54270-20 Res Flm 4x1.6 2k7 5% 0.4w 030-52560-20 Res Flm 4x1.6 56e 5% 0.4w 030-55100-20 Res Flm 4x1.6 10k 5% 0.4w 2.3.2 PCB Layout top side bottom side Tuneup TOPA-SV-024 Test Unit August 2004 © Tait Electronics Ltd...

  • Page 29: Circuit Diagram

    2.3.3 Circuit Diagram TOPA-SV-024 Test Unit Tuneup August 2004 © Tait Electronics Ltd...

  • Page 30: Calibration Basics

    Calibration basics Tait TM8000 radios are designed to be totally electronically tuned. No physical tuning is required, as all tuning is done by electronic trimming usually in the form of a digital-to-analog converter (DAC). The calibration process uses a PC running the calibration software, which is connected to a radio via an RS232 programming cable.

  • Page 31: Sliders

    When you read a radio, the type of radio will be displayed on the radio model toolbar. There are currently three types of radio available for calibration, Standard, Trigger Base, and Mid Power. The following are the main differences between the radio models: Calibration basics Tuneup August 2004 © Tait Electronics Ltd...

  • Page 32: Specifications Form

    (see “Calibrating the radio” on page 30). To open and view a file saved to disk Select the File > Open menu command, or click the Open button on the toolbar. Tuneup Calibration basics August 2004 © Tait Electronics Ltd...
  • Page 33 Calibration Application recognises. b. View the data on the Specifications, Deviation/Squelch, and Raw Data forms. The data on these forms will belong to the file opened, not the Note attached radio. Calibration basics Tuneup August 2004 © Tait Electronics Ltd...

  • Page 34: Notecalibration Tests

    The automatic gain control (AGC) is used to adjust the radio’s gain in relation to various power levels. The AGC will begin to reduce gain when the combined signal power of the wanted signal and first adjacent channels Tuneup Calibration tests August 2004 © Tait Electronics Ltd...

  • Page 35: Notemute

    The Power Control test requires a total of 20 adjustments, four at each test frequency. Calibration tests Tuneup August 2004 © Tait Electronics Ltd...

  • Page 36: Importantdeviation And Squelch Thresholds

    Selcall: 40 to 80% (default 60%) DTMF: 40 to 80% (default 60%) DCS: 10 to 25% (default 15%) CTCSS: 10 to 25 % (default 12%) FFSK (1200 baud modem): 40 to 80% (default 60%) Tuneup Deviation and squelch thresholds August 2004 © Tait Electronics Ltd...

  • Page 37: Squelch And Signalling Thresholds Tab

    The default value for each opening point is -119dBm, and can be changed from -30 to -119dBm for specific system requirements. The default value for hysteresis is 10dB, and can be changed from 2 to 20dB for specific system requirements. Deviation and squelch thresholds Tuneup August 2004 © Tait Electronics Ltd...

  • Page 38: Advanced Tab

    A-F), and by default is set to 3B28. This value can be changed for specific system requirements. However, all transmitting and receiving radios must use the same sequence. Tuneup Deviation and squelch thresholds August 2004 © Tait Electronics Ltd...

  • Page 39: Raw Data Reference

    Rx FE Tune Cal Freq Pts grid (Test Freqs tab). Note that the Rx FE Tune Voltage is equal to this DAC value divided by 255, multiplied by 3.0 volts. Raw data reference Tuneup August 2004 © Tait Electronics Ltd...

  • Page 40: Mute Tab

    Driver Bias Limit” on page 35). Power) Displays results of the Tx Driver Bias Limit test (see “Final Gate Bias and Tx Driver Gate Bias Clamp Driver Bias Limit” on page 35). Tuneup Raw data reference August 2004 © Tait Electronics Ltd...

  • Page 41: Power Tab

    PC. The thresholds are: pending high temperature shutdown, shutdown to very low power, shut off, and the hysteresis value that the radio must return to before the transmitter is re-enabled. Raw data reference Tuneup August 2004 © Tait Electronics Ltd...
