Tait TB8000 Wiring Diagram

Hide thumbs Also See for TB8000:

Advertisement

Quick Links

Download this manual
CR-1
:

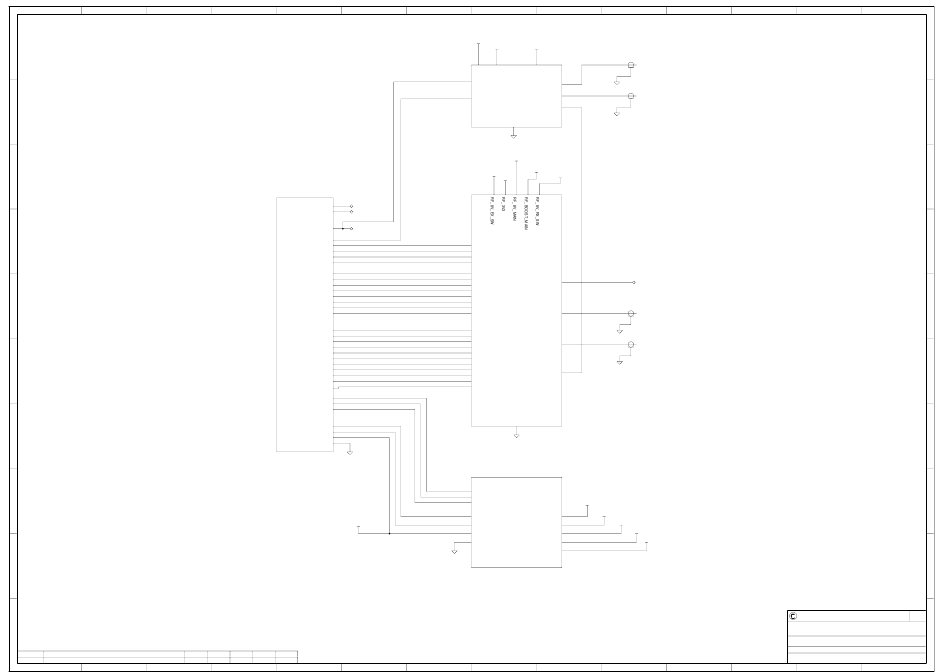

@\220_02061_LIB\.\220_02061\(SCH_1):PAGE1
