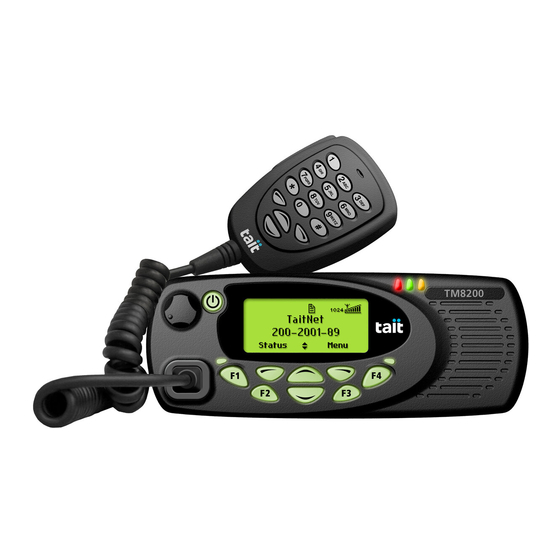

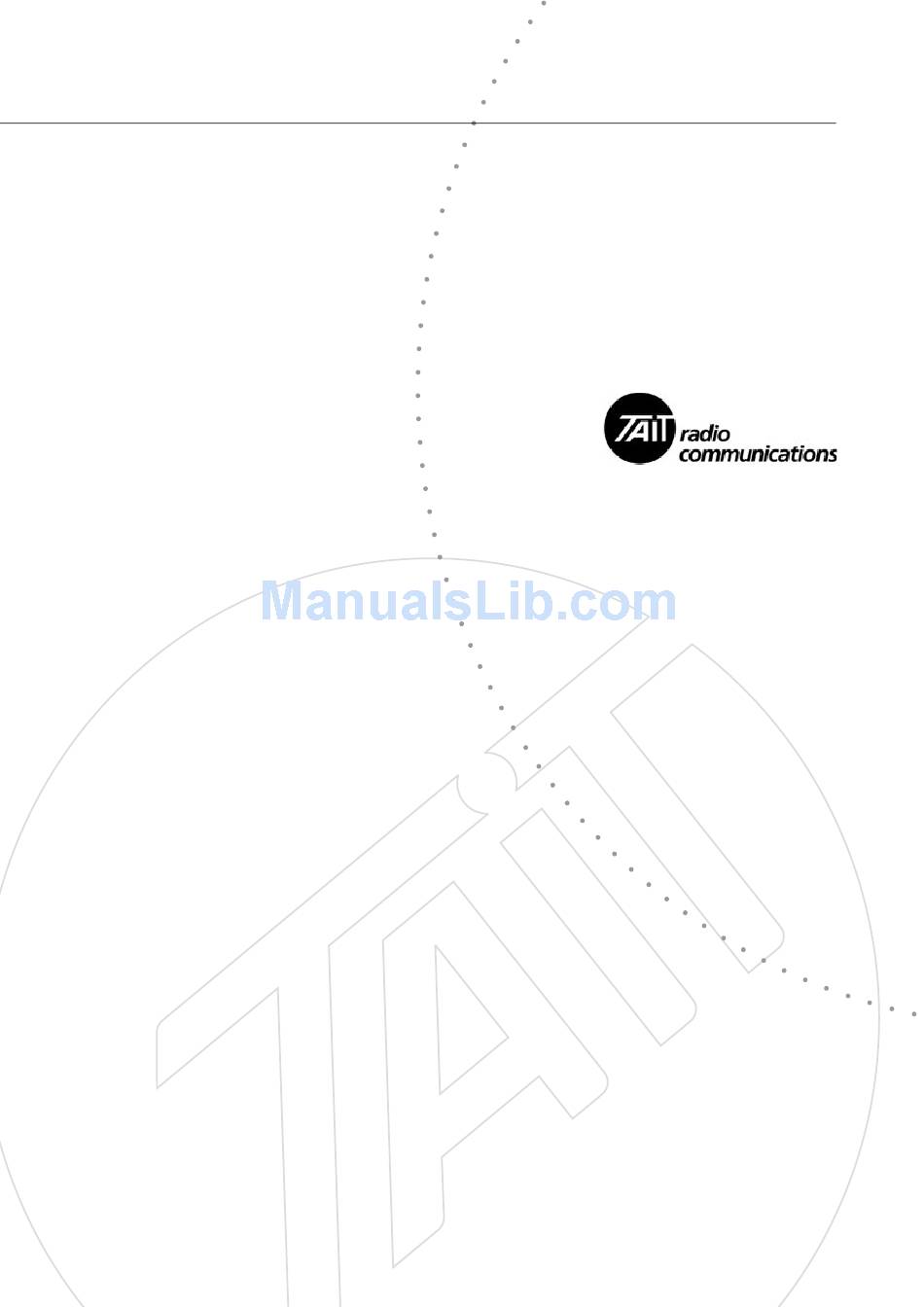

- Page 1 TM8100 mobiles TM8200 mobiles Installation Guide MMA-00028-02 Issue 02 July 2006...
-
Page 2: Issue
Directive requires that this product be disposed of Limited. separately from the general waste stream when its The word TAIT and the TAIT logo are trademarks of service life is over. Please be environmentally Tait Electronics Limited. responsible and dispose through the original supplier, All trade names referenced are the service mark, your local municipal waste “separate collection”... -
Page 3: Table Of Contents
2.12 RJ45 Control Head......... 28 Tait General Software Licence Agreement ......29... -
Page 4: Preface
Spanish (MMA-00045-xx), and Chinese (MMA-00048-xx). Technical notes are published from time to time to describe applications for Tait products, to provide technical details not included in manuals, and to offer solutions for any problems that arise. All available TM8100/TM8200 product documentation is provided on the CD supplied with the service kit . -
Page 5: Publication Record
Within this manual, the following symbols are used to highlight differences between the 50W/40W and the 25W radios: This symbol highlights information that is relevant to 50W/40W radios. This symbol highlights information that is relevant to 25W radios. TM8100/TM8200 Installation Guide Preface © Tait Electronics Limited July 2006... -
Page 6: Safety Warnings
Do not mount the radio vertically, with the control head facing down. This will violate compliance with the standards UL/CSA/EN 60950, Safety of Information Technology Equipment. Safety Warnings TM8100/TM8200 Installation Guide © Tait Electronics Limited July 2006... -
Page 7: Interference With Vehicular Electronics
The LPG container space shall be vented to the outside of the vehicle. Radio Installation in Gas or Fuel tankers Special conditions must be observed when installing a radio on gas and fuel tankers. Consult your radio provider or Tait-accredited service center for more details. TM8100/TM8200 Installation Guide Safety Warnings... -
Page 8: Non-Standard Radio Installations
This is illustrated in the following diagram (TM8200 radio shown): 3/8 inch (10 mm) mounting surface Negative Earth Supply The radios are designed to operate only in a negative earth system. Safety Warnings TM8100/TM8200 Installation Guide © Tait Electronics Limited July 2006... -
Page 9: Preparing The Installation
Regulations TM8100/TM8200 mobile radios should be installed in accordance with the MPT 1362 Code of Practice MPT 1362 Code of Practice. This code of practice covers the installation of mobile radio equipment in land based vehicles and has been developed by the United Kingdom Office of Communication (Ofcom). - Page 10 Installation kits are also available without the U-bracket included and with Installation Kit Options other antenna connector options. Other cradle mounting arrangements are also available. Consult your nearest Tait Dealer or Customer Service Organization for more information. Preparing the Installation TM8100/TM8200 Installation Guide...
-
Page 11: Choosing An Installation Configuration
Note The TMAA04-05 ignition sense kit provides a suitable mating plug for the radio’s auxiliary connector. The plug includes wiring for the ignition signal and analog ground. TM8100/TM8200 Installation Guide Preparing the Installation © Tait Electronics Limited July 2006... -
Page 12: Installing The Radio
It may be required to mount the radio upside down to maintain a gap of more than 10 mm (3/8 inch) for air circulation between the underside of the radio body and the mounting surface. Installing the Radio TM8100/TM8200 Installation Guide © Tait Electronics Limited July 2006... - Page 13 Use the screwdriver to lift the control head off the chassis clip, then repeat in the other position. The control head can now be removed from the radio body. TM8100/TM8200 Installation Guide Installing the Radio © Tait Electronics Limited July 2006...
-
Page 14: Selecting The Mounting Position
IP54 protection class) the programming connector cover seal is not installed (blank control head) the RJ45 connector bungs are not installed (RJ45 control head) the microphone grommet is not installed. Installing the Radio TM8100/TM8200 Installation Guide © Tait Electronics Limited July 2006... -
Page 15: Mounting The U-Bracket
(not included). Caution Although an industrial-strength recloseable fastening system can be used to support the installation, for safety reasons Tait does not recommend this as a mounting option. Important When mounting the radio on a surface, check whether the mounting screws will screw into material providing sufficient strength. -
Page 16: Installing The Antenna
Terminate the free end of the antenna cable with the mini-UHF plug or BNC plug (supplied) as shown in Figure 2.4. Figure 2.4 Terminating the antenna cable 5/16" 5/32" (8 mm) (4 mm) 9/16" (14 mm) Installing the Radio TM8100/TM8200 Installation Guide © Tait Electronics Limited July 2006... -
Page 17: Connecting The Power Cable To The Power Source
To reduce the standby current from 50mA to <3 mA without using the ignition signal, connect pin 4 (AUX GPI3) and pin 15 (GND) of the auxiliary connector. TM8100/TM8200 Installation Guide Installing the Radio © Tait Electronics Limited July 2006... - Page 18 Connect the positive wire to the battery positive terminal. Important Do not install the fuses until the installation is ready to be checked. For more information, refer to “Checking the Installation” on page Installing the Radio TM8100/TM8200 Installation Guide © Tait Electronics Limited July 2006...
-
Page 19: Connecting A Remote Speaker
The space for a mating plug is limited to 41mm (1 5/8 inch) in width and 18 mm (11/16 inch) in height. It is recommended that you test the plug to be used before manufacturing a cable. Tait uses IPN 240-00020-55 for the plug. - Page 20 1. The radio will tolerate a supply voltage range of 10.8V to 16.0V at the radio. 2. For more information on hardware links refer to the service manual. 3. This output is protected against accidental input to the limits specified. Installing the Radio TM8100/TM8200 Installation Guide © Tait Electronics Limited July 2006...
- Page 21 3. If LK 4 is in and R723 is placed, IOP GPIO7 should be driven low as well. (R723 is placed by factory default.) For more information on hardware links and power-sense options refer to the service manual. TM8100/TM8200 Installation Guide Installing the Radio © Tait Electronics Limited July 2006...
- Page 22 The logic thresholds for AUX GPI3 are based on 3V3 levels. However, AUX GPI3 can be connected directly to a +13.8V ignition signal (for input levels, refer to Table 2.3 on page 20). Installing the Radio TM8100/TM8200 Installation Guide © Tait Electronics Limited July 2006...
- Page 23 AUX GPIO4 and the positive side to pin 8 (+13V8 SW). The external alert device must be capable of accepting a voltage of between 10V and 18V. TM8100/TM8200 Installation Guide Installing the Radio © Tait Electronics Limited July 2006...
-
Page 24: Installing The Radio
Adjust the position of the radio in the U-bracket for the best viewing angle, then tighten the thumb screws. Figure 2.6 Installing the radio in the U-bracket Installing the Radio TM8100/TM8200 Installation Guide © Tait Electronics Limited July 2006... -
Page 25: Installing The Microphone
Install the microphone clip in the most convenient location using the screws provided. The microphone must be within reach of the user but in such a position that the PTT (press-to-talk) key cannot be inadvertently activated or jammed. TM8100/TM8200 Installation Guide Installing the Radio © Tait Electronics Limited July 2006... -
Page 26: Checking The Installation
Some antennas are pre-tuned and must not be cut. Check with the manufacturers’ instructions. Once the reflected power levels are within tolerance, make a call to another party on the radio. Installing the Radio TM8100/TM8200 Installation Guide © Tait Electronics Limited July 2006... -
Page 27: Blank Control Head
Asynchronous serial port: receive data ON/OFF Hardware power on/software power off front view input (active low) +13.8V Unswitched 13.8V power supply PTT input AGND Analogue ground DGND Digital ground TM8100/TM8200 Installation Guide Installing the Radio © Tait Electronics Limited July 2006... -
Page 28: Rj45 Control Head
Asynchronous serial port: transmit data PTT input front view MIC AUD Microphone audio input AGND Analogue ground Asynchronous serial port: receive data ON/OFF Hardware power on/software power off input (active low) Installing the Radio TM8100/TM8200 Installation Guide © Tait Electronics Limited July 2006... -
Page 29: Tait General Software Licence Agreement
THE SOFTWARE OR FIRMWARE INCLUDING OPEN SOURCE of the Software or Firmware items prior-installed in the related COMPONENTS IS SUPPLIED BY TAIT AND ACCEPTED BY THE Tait product, included on CD or downloaded from the Tait “ ” LICENSEE AS IS WITHOUT WARRANTY OF ANY KIND EITHER website, (hereinafter referred to as “the Software or Firmware”) -
Page 30: Tait Electronics Limited July
Tait General Software Licence Agreement TM8100/TM8200 Installation Guide © Tait Electronics Limited July 2006... -
Page 32: Cable Connections
External alert device – AGND Emergency switch – rear view For more information, refer to “Connecting to the Auxiliary Connector (Ignition Signal, Emergency Switch, External Alert Devices)” on page www.taitworld.com TM8100/TM8200 Installation Guide MMA-00028-02 © Tait Electronics Limited July 2006...
