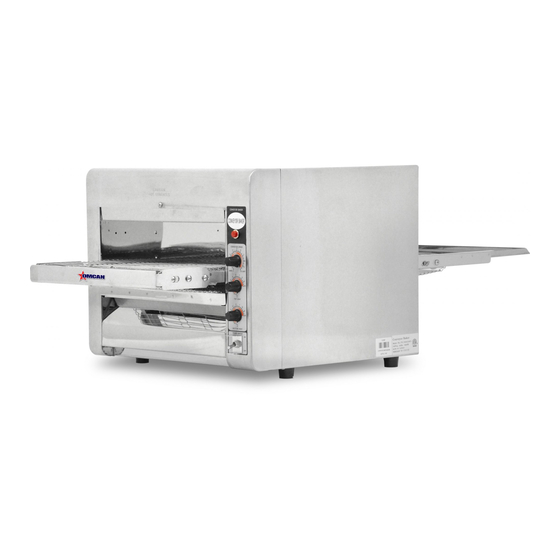

- Page 1 Conveyor Oven Model CE-TW-0356 Item 11387 Instruction Manual Revised - 01/28/2022 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model CE-TW-0356 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 7 Operation --------------------------------------------------------------------------------------------- 7 Maintenance ----------------------------------------------------------------------------------- 7 - 11 Parts Breakdown ---------------------------------------------------------------------------- 11 - 17... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
Technical Specifications Model CE-TW-0356 Current Power 3.6 kW Belt Width 14” / 355mm Opening (HxW) 3.3” x 14.3” / 83 x 363mm 16 - 14” / 356mm pizzas per hour Capacity 19 - 12” / 305mm pizzas per hour 25 - 9” / 229mm pizzas per hour... -
Page 7: Installation
Installation electrical rating for this toaster. Operation 1. Turn the power to FULL power. 2. Set the conveyor speed on 4. 3. Allow warm-up time of 5 to 10 minutes. 4. Place a sample product on the conveyor belt to test the setting. A. -
Page 8: Maintenance
Maintenance 5. Reconnect power. Note: When placing the tray back into position, be sure that the message “CAUTION HOT SURFACE” is the right side up. WEEKLY CLEANING THE CONVEYOR BELT 1. Turn power switch to the OFF position. Disconnection unit from power source and allow to cool. - Page 9 Maintenance drive sprockets, (see Figure 3). 4. Clean conveyor belt in deep sink, caustic cleaners may be used. For a heavy soiled conveyor belt, soak over night in hot soapy water. NOTE: Do not attempt to clean the heater tubes. 5.
- Page 10 Maintenance place unit on its side. 3. Unplug power supply cord from fan motor. 4. Remove screws which hold fan motor and grill to the control box cover and remove fan. 5. Once removed, clean fan grill and control box cover using warm soapy water. 6.
-
Page 11: Parts Breakdown
2. Remove the panel which exposes chain drive. 3. Using an extreme pressure, synthetic chain lubricant with a temperature range up to 400°F. Apply liberally onto chain and sprockets. 4. Replace panel, reconnect power source and test unit. Parts Breakdown Model CE-TW-0356 11387... - Page 12 Parts Breakdown Model CE-TW-0356 11387...
- Page 13 Parts Breakdown Model CE-TW-0356 11387...
- Page 14 Parts Breakdown Model CE-TW-0356 11387...
- Page 15 Parts Breakdown Model CE-TW-0356 11387...
- Page 16 Parts Breakdown Model CE-TW-0356 11387...
- Page 17 Parts Breakdown Model CE-TW-0356 11387 Item No. Description Position Item No. Description Position Item No. Description Position Big Terminal Block PA-12 (12P) for 19023 Stainless Steel Cover for 11387 19037 Protection for Conveyor for 11387 17 - 19 19051 11387...
-
Page 18: Electrical Schematics
Electrical Schematic Electrical Schematics Model CE-TW-0356 11387 Model TS7000 11387 © 2013 7-30-13, E.O.E... -
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
