Reader wand

To read in fusion barcodes and traceability barcodes, place the reader wand
under a slight angle (like a pencil) in front of the barcode on the fitting. Now
move the reader wand quickly over the whole label and a little beyond. Bar-
codes can be read in from right to left or vice versa. When the barcode has
been read in correctly, the device emits an acoustic signal to confirm this. If
the barcode cannot be read in the first time, repeat the procedure, this time
under a different angle or at a different speed.
NOTE
Protect the tip of the reader wand from dirt and damage!
The condition of the reader wand tip has a direct effect on the legibility of barcodes.
3.4

Barcode scanner

The barcode scanner uses a laser to read in fusion barcodes and traceability
barcodes without physical contact. All you need to do is aim at the barcode
and press the read button. The barcode is scanned by means of a red light
strip that must cross over the whole barcode, whenever possible at the cen-
tre. The barcode is not detected properly when the red light strip does not
cross the whole barcode.
The optimal read results are obtained when the scanner is positioned at a
small distance over the barcode.

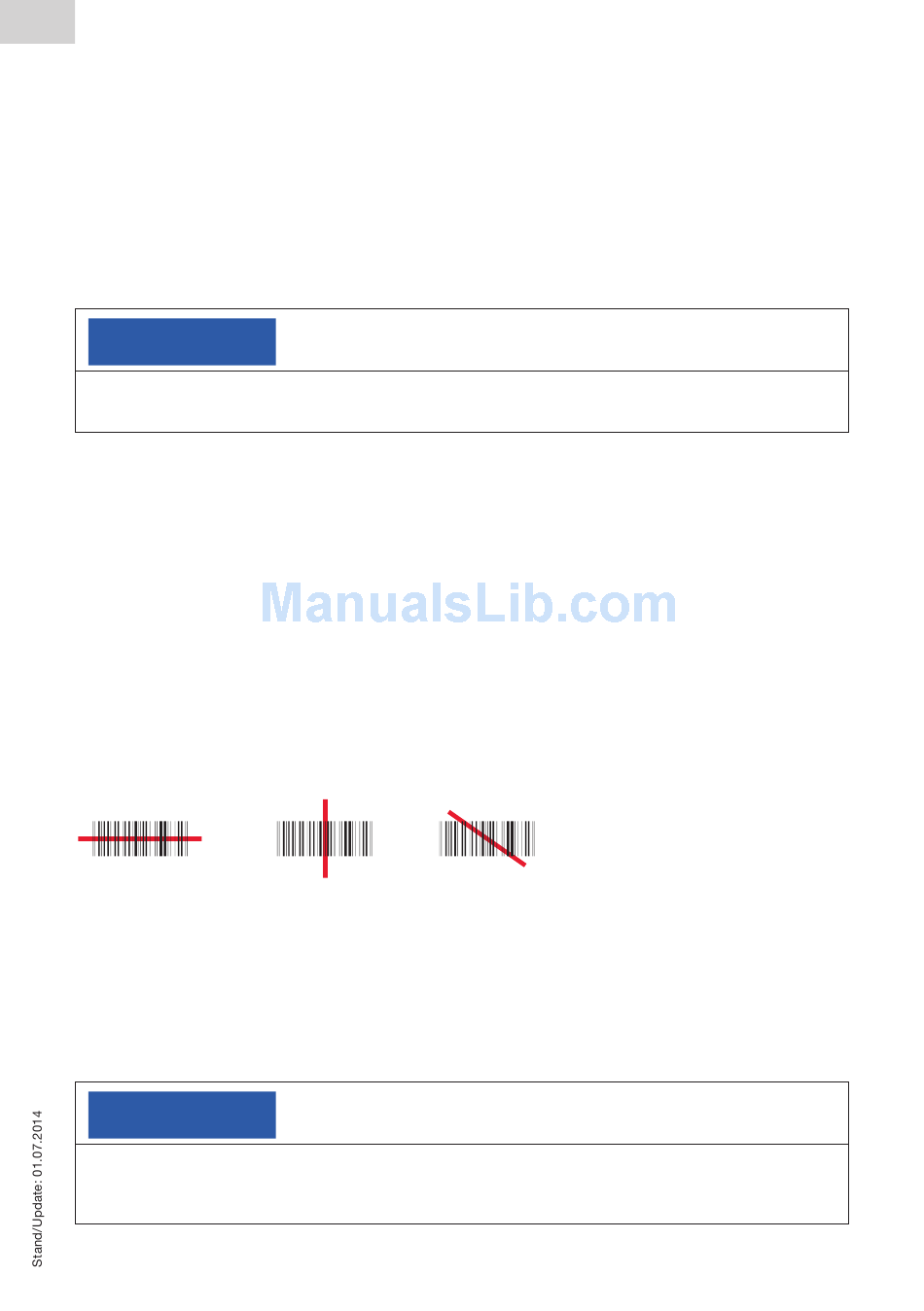

Good legibility
Badly printed or slightly damaged barcodes can be read in when the scanner
is placed directly on the barcode and then, with the read button pressed,
moved away. When the barcode is read in successfully, the device emits an
acoustic signal, and a green indicator lamp lights up in the middle of the read
barcode.
NOTE
Protect the reading window from dirt and scratches!
The condition of the reading window has a direct effect on the capabilities of the
FRIAMAT barcode scanner.
12
Failed to read Failed to read
