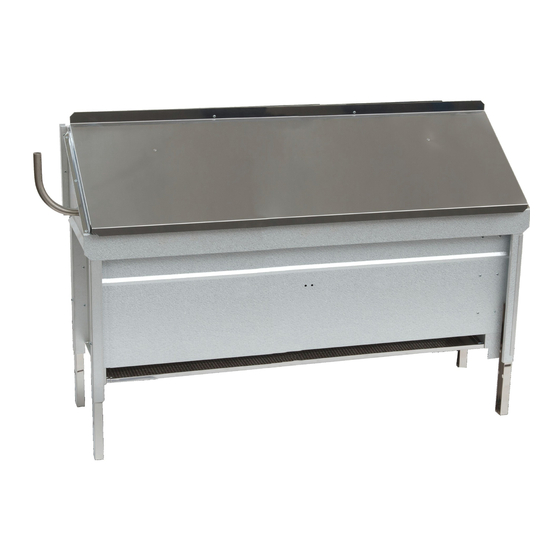

EOS Invisio Midi Installation And Operation Manual
Sauna heater for concealed installation
Hide thumbs
Also See for Invisio Midi:
- Assembly and operating instruction (57 pages) ,
- Installation and operating instructions manual (52 pages)
Subscribe to Our Youtube Channel
Related Manuals for EOS Invisio Midi
Summary of Contents for EOS Invisio Midi
- Page 1 Invisio Midi sauna heater for concealed installation Installation and operation manual MADE IN GERMANY Druck Nr. 29344614en / 28.16...
-
Page 2: Table Of Contents
English Contents Intended use..............................3 General notes ..............................3 Important notes ............................4 Advice for electrical connection ......................6 Wiring diagram and connection example ..................7-8 Installation Technical specifications ........................9 Minimal clearances ..........................9 Installation (basic steps) ......................10-11 Installation of the infusion funnel ....................11 Installation final steps ........................12 Commissioning / first switching .................... -
Page 3: Intended Use
Dear Customer, General notes You have purchased a high quality technical Please note that an optimal sauna climate can appliance which will provide you with many be reached only when the cabin, with its air in- years of enjoyable sauna bathing. This sauna take and exhaust, the sauna heating unit and heating system was constructed in accordance the control unit have been tuned for compati-... -
Page 4: Important Notes
Important notes Please provide air intake and vent ope- • nings in each sauna cabin. The air intakes Unprofessional installation may cau- • must always be positioned behind the se a re hazard! Please read these instal- sauna heater, approx. 5 to 10 cm above lation instructions carefully. - Page 5 Do not put the sauna heater into operation Please always ensure that the sauna heat- • • when the air intake is closed. er is never placed on ooring made of ammable material (wood, plastic oor- The cabin lighting and the corresponding •...
-
Page 6: Advice For Electrical Connection
Electrical connection atile oils than advised on the packaging. Never use alcohol or undiluted concen- Your electrician will be able to accomplish this work without further explanation in accord- trates. Caution! Fire hazard! ance with the provided wiring diagram and with the help of the circuit diagram mounted inside the respective control unit. -
Page 7: Wiring Diagram And Connection Example
Connection example 6-9 kW Saunasteuergerät Saunaheizgerät Control unit Sauna heater Boîtier de commande Poêle de sauna Пульт управления Печь для сауны Netz / Mains / Réseau / Сеть 12 kW Saunasteuergerät Saunaheizgerät Leistungsschaltgerät Control unit Sauna heater Power extension unit Boîtier de commande Poêle de sauna Extension de puissance... -
Page 8: Speci Cations
Power Electrical connection Fuse protection A Model control unit unit - heater 6,0 kW Invisio Midi 9,0 kW 400 V 3N AC 50 Hz 3 x 16 5 x 2,5² 5 x 1,5² 12,0 kW Alle Angaben zu Leitungsquerschnitten sind Mindestquerschnitte in mm² Kupferleitung. -
Page 9: Installation Technical Specifications
Speci cations Minimal clearances The minimal inner height of the sauna cabin Nominal voltage: 400 V AC 3N 50 Hz shall be 1,90 m. Power rating: 6.0 / 9.0 / 12.0 kW The horizontal gap between the sauna heater Height: 650 / 710 / 770 mm and the cabin wall must be at least 4 cm. -
Page 10: Installation (Basic Steps)
Installation 2. De-install the air de ector Loosen 4 screws at the heater sides and 1 screw 1. Mount the heater feet in the middle of the rear side of the air de ector Remove both lower xation screws holding the (see g 3). -
Page 11: Installation Of The Infusion Funnel
5. Mount the air de ector Mount the air de ector back on the heater. Pay Rock store attention that the reclining panel shall face away from the rear wall and the hot air exit shall be under the 10 cm gap between the sauna wall and the screen panel. -
Page 12: Installation Final Steps
7. Temperature sensor installation 9. Partition wall and safety grill Contradictory to the advice concerning the Install the partition wall (screen) so that the safe- installation of the sensor given in the sauna ty gaps as given on Fig. 1, page 8, are observed. control unit manual, the temperature sensor Make sure that the heater’s hot air exit opening shall be mounted centered to the heater on the... -
Page 13: Commissioning / First Switching
10. Commissioning 12. Maintenance How to replace heating elements Risk of re! Always make sure before 12.1 Preparation 1. Disconnect the heater from power. switching the sauna heater that no objects 2. Gain access to heater. were forgotten on the safety grill. 3. - Page 14 Explosion drawing Attention! The water infusion e ect always occurs re- tarded. For a steam shock e ect pour some water into the funnel with a sauna ladle. Then, the water is led across the sauna rocks in the oven by the silicone connecting hose and evenly distributed over the rocks through the infusion gutter.
-
Page 15: Sauna Stones
Sauna rocks Maintenance and care Sauna stones are a natural product. Check the All sauna heating units are made of low-corro- sauna stones at regular intervals. Aggressive sion material. To enjoy your sauna heating unit sauna essensces can weaken the sauna stones for a long time you should ensure maintainance and cause them to break apart over time. - Page 16 unit must be undertaken only by an authorized For the installation of sauna heaters, please electrician. Without a documented proof of pay attention to the DIN VDE 0100 part 703 ! such installation a warranty is generally void. This standard makes the following statement valid in your newest expenditure, since Februa- ry 2006, paragraph 703.412.05;...
-
Page 17: Service Address
Service Address: EOS Saunatechnik GmbH Schneiderstriesch 1 35759 Driedorf, Germany Tel: +49 (0)2775 82-514 Fax: +49 (0)2775 82-431 servicecenter@eos-sauna.de www.eos-sauna.de Equipment commissioning date: Please keep this address in a safe place togeth- er with the installation guide. Stamp and signature of the authorized elec-... -
Page 18: Warranty
shipments via parcel post. The manufacturer shall accept General Terms and Conditions of Service no liability for damage incurred as a result of improper I. Scope packaging in an individual shipment. Unless otherwise agreed in writing in a speci c case, the- VI.
